型番：1310nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003568

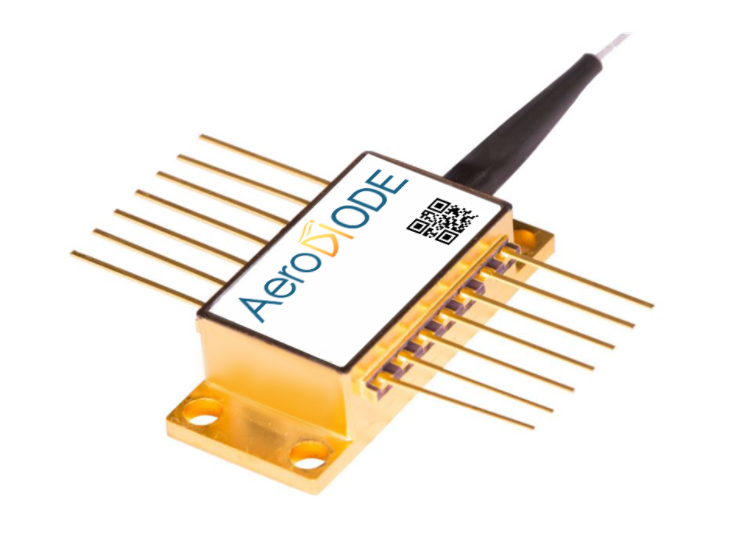

1310nm Laser Diode 4 DFB models - CW or Pulse

1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse
1310nm Laser Diode 4 DFB models - CW or Pulse

1310nm laser diodes データシート.pdf

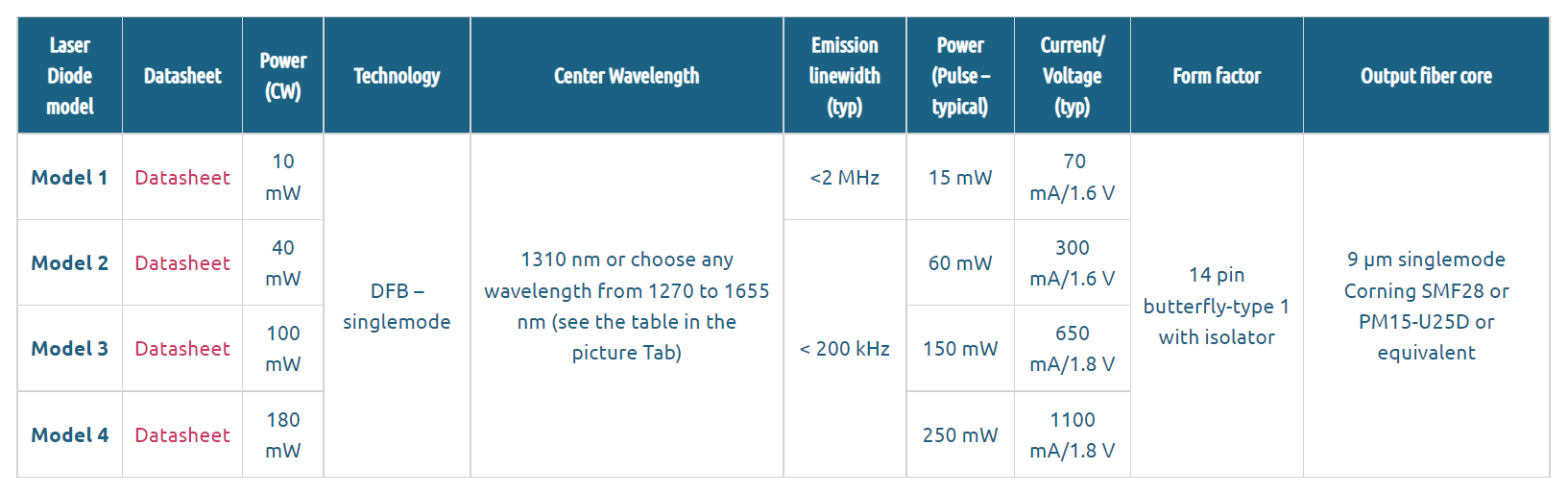

波長: 1305nm-1315nm
出力: 10mW-250mW
電流: 60mA-1200mA
電圧: 1.6V-2.8V
パッケージ: 14 pin Butterfly package
テクノロジー: DFB

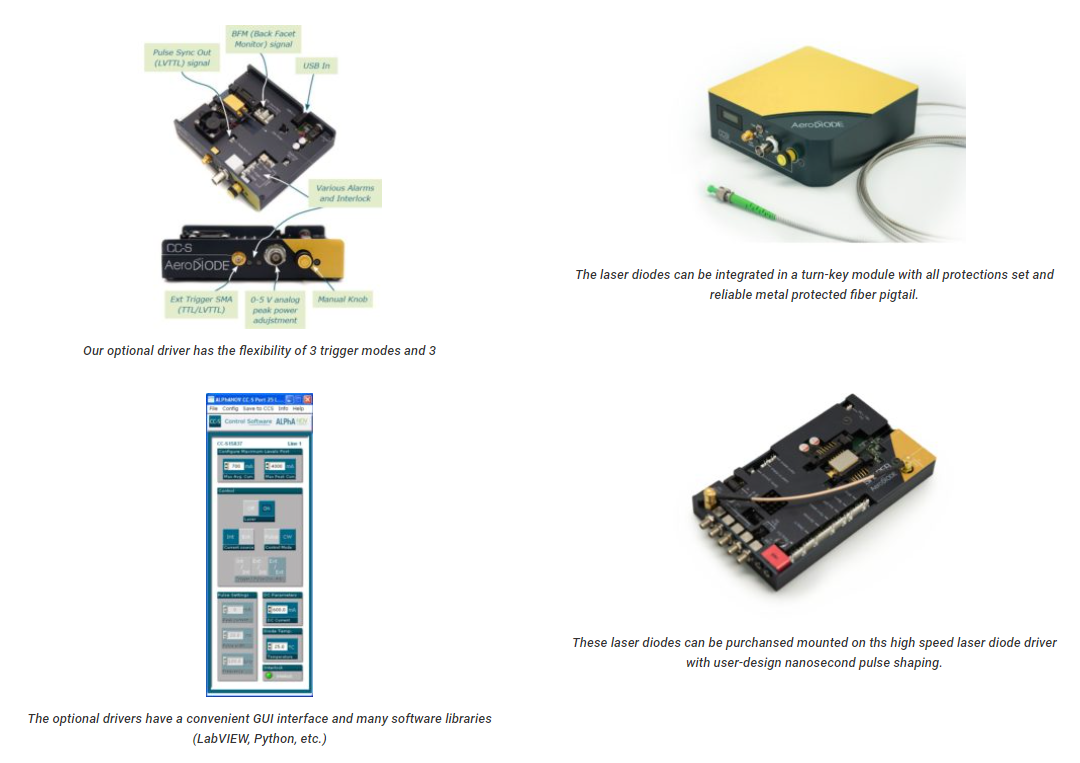

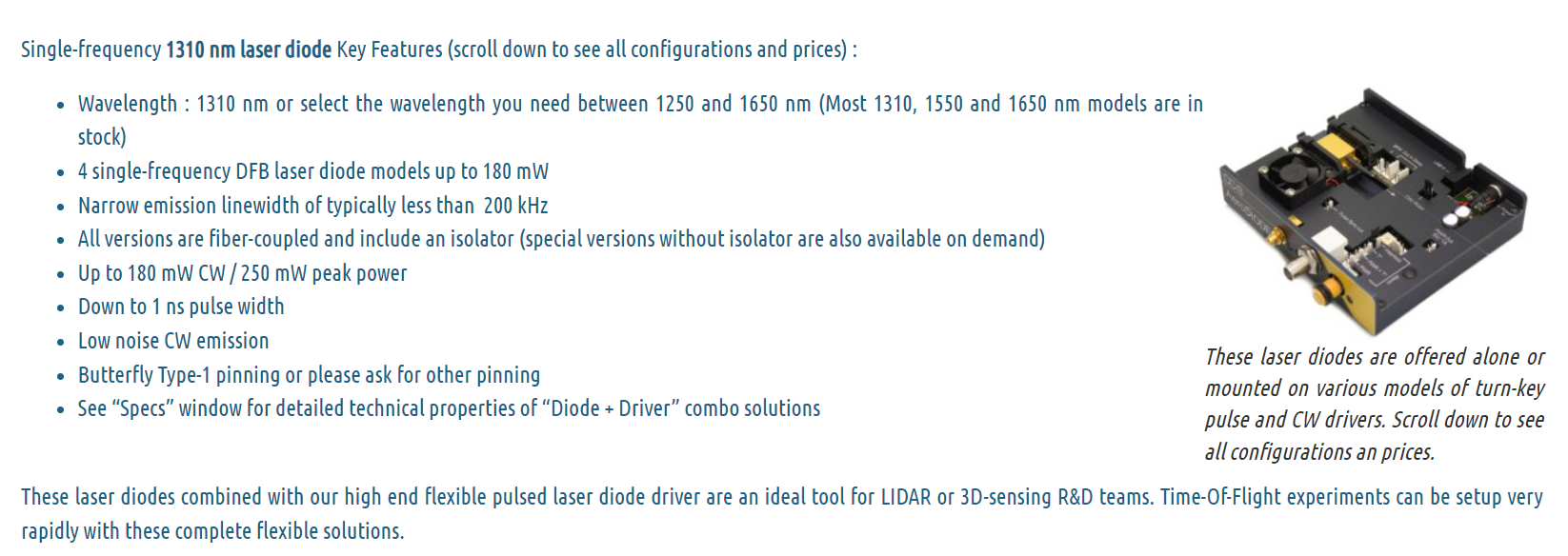

These fiber-coupled 1310 nm laser diodes are offered as stock items or associated with a low noise CW or Pulsed Laser Diode Driver. All 4 models are single frequency versions (DFB laser diode) up to 180 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication or 3D-sensing R&D.
These single mode 1310 nm laser diodes can reach high power in nanosecond pulse regime up to 250 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1310 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
