型番：FiberMax635 High Power　メーカー：Blue Sky Research　商品コード：L003320

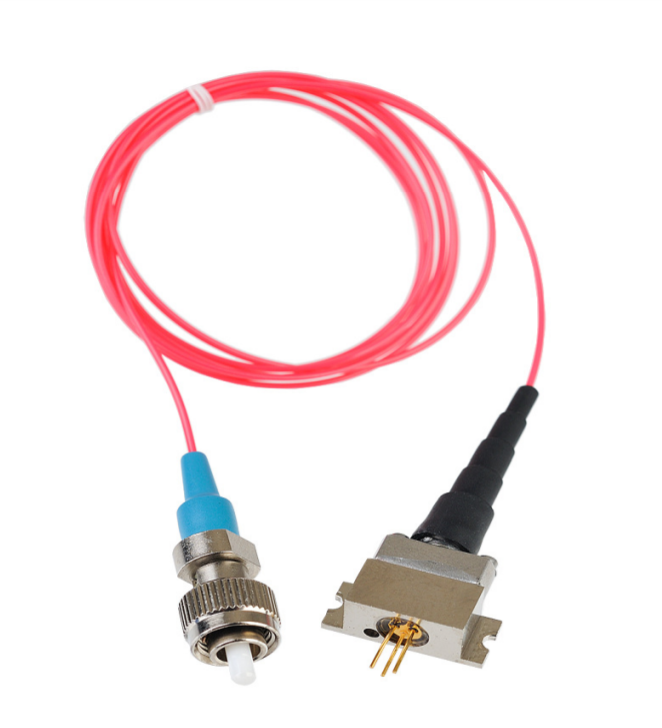

635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module

635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module
635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module
635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module
635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module
635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module
635nm / 60, 80mW　High Power Fiber Pigtailed Red Laser Module

FiberMax635 High Power データシート.pdf

波長: 632nm-644nm
出力: 50mW-80mW
電流: 100mA-320mA
電圧: 2.4V-3.3V
テクノロジー: Fiber Pigtailed Red Laser Module

< Description >
FiberMax635 is a fiber-pigtailed red laser module delivering superior performance for today’s demanding electro-optic applications. Based on Blue Sky Research laser packaging technology, the FiberMax635 provides excellent coupling efficiency and stability in a cost effective package. The thermally stable design of the FiberMax635, based on our standard FiberMAX packaging technology, is a proven, stable package with many thousands of lasers operating in demanding applications. The units are offered with Multimode, Polarization Maintaining Single Mode or Single Mode fiber, 3mm or 0.9mm jacketing and a range of collimator options.
