型番：　メーカー：Powerlase Photonics Ltd　商品コード：L002465

1064nm Q-Switched Nanosecond Laser, 1.2kW

1064nm Q-Switched Nanosecond Laser, 1.2kW
1064nm Q-Switched Nanosecond Laser, 1.2kW
1064nm Q-Switched Nanosecond Laser, 1.2kW
1064nm Q-Switched Nanosecond Laser, 1.2kW

波長: 1064nm-1064nm
出力: 1200W-1200W
テクノロジー: Q-Switched Laser

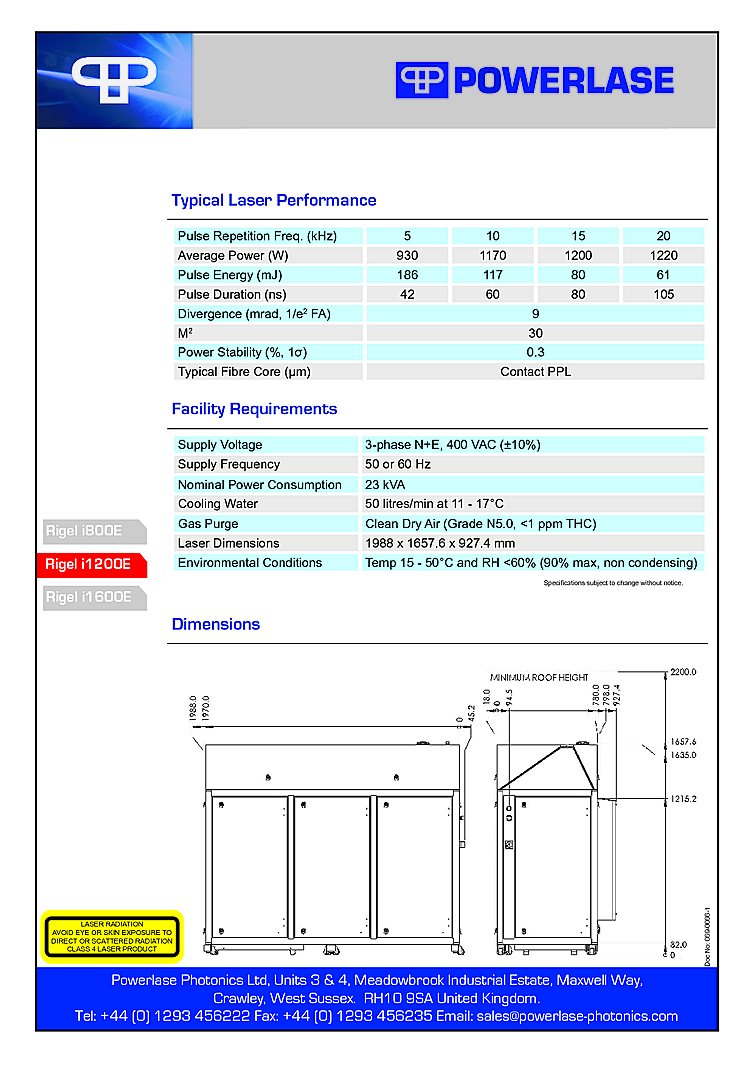

Q-switched nanosecond laser from Powerlase Photonics for applications in Material Processing, Photovoltaic Processing, Thin Film Removal, Rapid Laser Patterning and Extreme Ultraviolet (EUV) Generation. Pulse energy up to 186mJ at a repetition rate of 5 kHz and pulse width of 42 ns. Pulse repetition rate from 5 kHz to 20 kHz with average output power up to 1200 watts. Beam quality for this high energy q-switched laser is 30 (M2) with a fiber coupled output and either a square or round output shape. A 0.3 power stability is achieved with this high energy laser. Nanosecond laser has adjustable pulse duration from 42 ns to 105 ns. Options for the solid state laser include computer controlled attenuation and repetition frequency optimization. High energy DPSS laser with output wavelength of 1064 nm.
