型番：TEM-85-2、TEM-85-10、TEM-110-25、TEM-200-50、TEM-400-100、TEM-800-200、AMM-27-2、AMM-80-4、AMM-100-8、FQM-80-2、FQM-80-20、FQM-200-40、GEM-40-4、GPM-200-50、GPM-400-100、GPM-800-200、GPM-1600-400、IPM-200-26、IPM-400-100　メーカー：Brimrose Corporation of America　商品コード：L003286

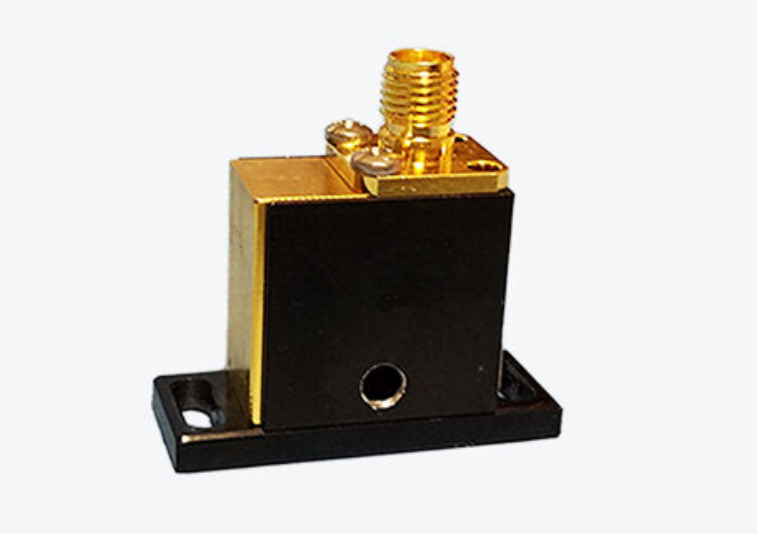

Free Space Acousto-Optic Modulators (AOM)

AO_Modulators　データシート.pdf

波長: 200nm-11000nm

FIBER COUPLED AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら

The Brimrose free space Acousto-Optic Modulator (AOM) is used to control laser beam intensity, frequency modulation, frequency shifting, control pulses, switching time, and more. The AOMs are offered with conduction and water cooled enclosures. TE cooled enclosures are available upon request.

Brimrose offers AOMs in the wavelength range from the ultraviolet to LWIR regions for low and high optical power applications. Brimrose AOMs cover the frequency ranges from just a few MHz up to 3.5 GHz.

A large variety of supporting RF electronics in lab enclosures or OEM versions are offered by Brimrose. These include fixed or variable frequency RF Drivers as well as PC-controlled high performance RF Frequency Synthesizers. The RF Drivers are provided with either analog amplitude modulation, TTL, or a combination of both, depending upon application requirements.

< KEY FEATURES >
Compact Integrated Design
Wide Spectral Wavelength Range
Low RF Power Consumption
Fast Switching Speed
High Bandwidth
High Diffraction Efficiency
Good Temperature Stability

< APPLICATIONS >
TTL/Digital Amplitude Modulation
Analog Amplitude Modulation
Photo Processing
Laser Displays
Micro Machining
Pulse Picking
OEM Designs
