型番：　メーカー：Brimrose Corporation of America　商品コード：L003290

FIBER COUPLED AO DEVICES

FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES
FIBER COUPLED AO DEVICES

FIBER COUPLED AO DEVICES 一覧データシート.pdf

< Fiber Coupled Acousto Optics >

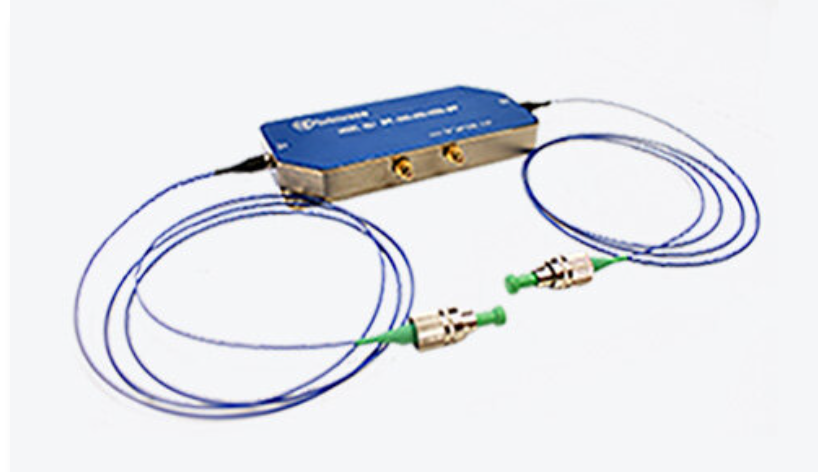

Brimrose offers a broad product line of high-quality customized fiber-coupled Acousto-Optic (AO) components, at frequencies from KHz to GHz, at your wavelength, and are suitable for laboratory, research and industrial laser applications. We engineer and design fiber-coupled AO devices to meet each customer's unique specifications.

< FEATURES >
Frequency Ranges : as low as 40 MHz to 1GHz
Low Insertion Losses (~2-3 dB)
Fast Switching Speed < 10 nsec
High Extinction Ratio >50 dB or better upon request
Optical Power Handling - up to 5W CW
SM - PM Fibers – FC/APC Connectors

< APPLICATIONS >
TTL / Digital Amplitude Modulation
Analog Amplitude Modulation
Fiber Sensing
Heterodyne Detection
Pulse Picking, Q-Switching
Laser Doppler Configurations
Simulating and Testing of Long Distance Fiber Optic Communication Lines
Laboratory Test and Measurement Systems
OEM Designs

FREE SPACE AO DEVICESはこちら
OEM & LAB VERSION RF DRIVERSはこちら
