型番：　メーカー：JENOPTIK　商品コード：L000904

Laser Diode Stack, 2500W

Laser Diode Stack, 2500W
Laser Diode Stack, 2500W
Laser Diode Stack, 2500W
Laser Diode Stack, 2500W

波長: 807nm-807nm
出力: 2500W-2500W
パッケージ: stack
テクノロジー: high power laser diode stack

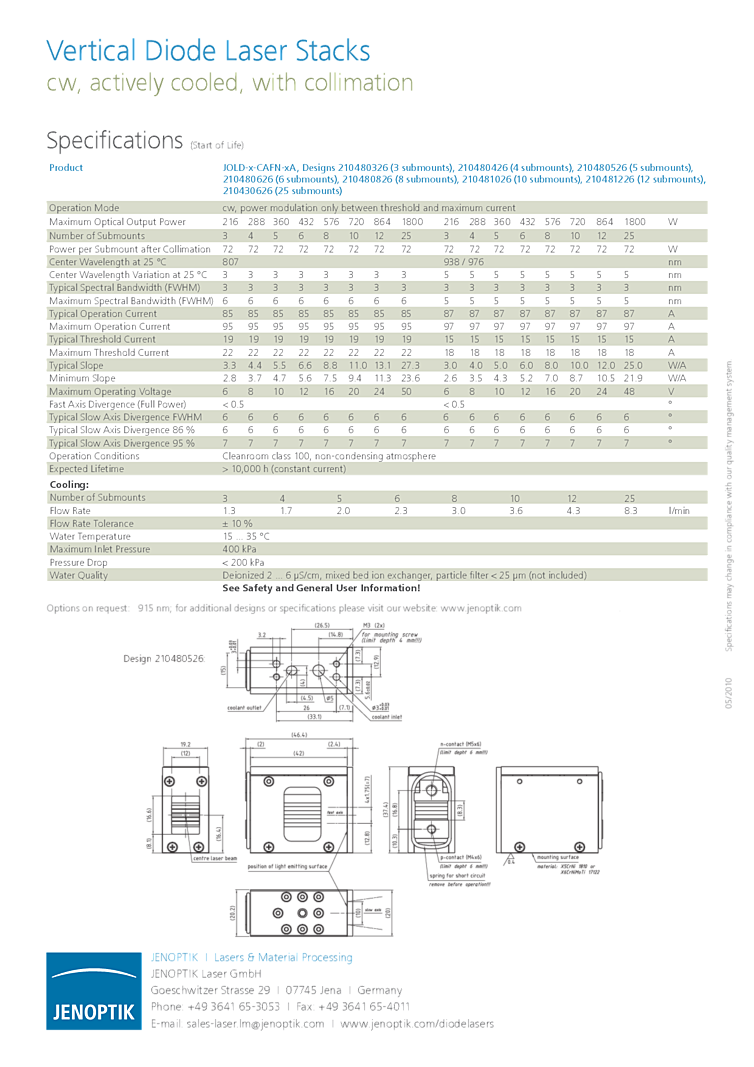

807nm laser diode stacks from Jenoptik are cw, actively cooled, with collimation. The attached data sheet and specifications document offers the following details. Applications for the devices include medical applications (e.g. hair removal) and pumping applications. Features include high optical output power of 72W cw per bar after collimation as well as high efficiency and low divergences. Total power referenced on the data sheet is 2500W for the diode laser stack. Center wavelength for these stacks at 25 °C is listed at 807nm with 938nm and 976nm versions available. Center wavelength variation at 25 °C is listed as 3nm. These devices offer a typical spectral bandwidth of 3nm. The operation current is specified at 85 Amps with a maximum operation current specified at 95 Amps. Typical threshold current for these laser diode stacks is specified at 19 Amps.

JENOPTIK I Lasers & Material Processing
JENOPTIK Laser GmbH
Goeschwitzer Strasse 29 I 07745 Jena I Germany
Phone: +49 3641 65-3053 I Fax: +49 3641 65-4011
E-mail: sales-laser.lm@jenoptik.com I www.jenoptik.com/diodelasers

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ イエナオプティック　ジャパン株式会社
