型番：VPSL-0808-150-X-9-B　メーカー：Blue Sky Research　商品コード：L003354

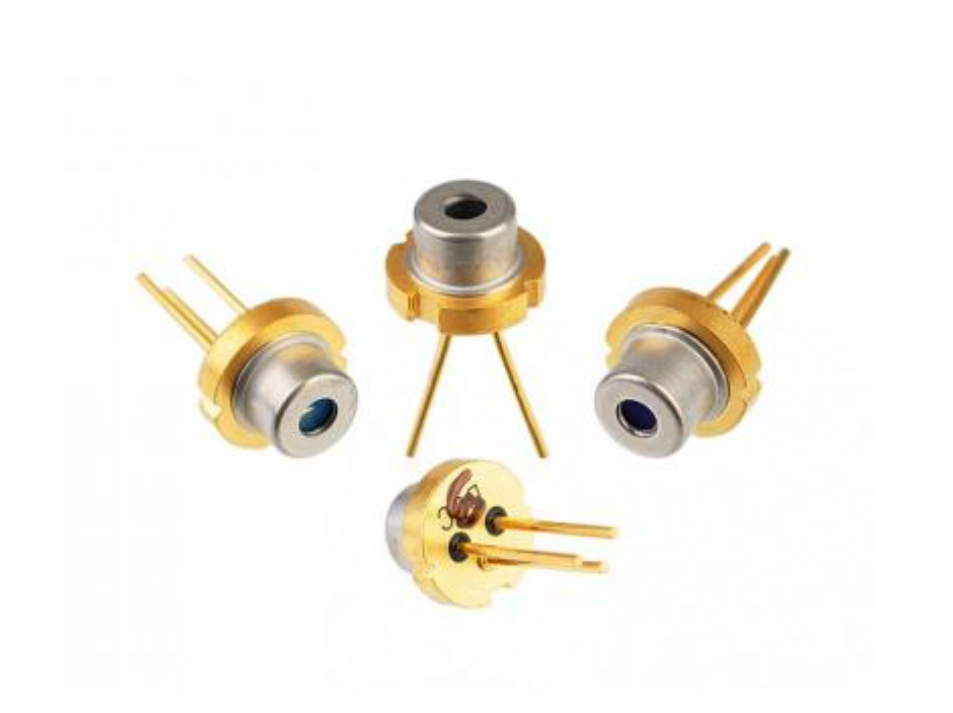

808nm / 150mW　VPS IR Laser Diode [TO-can]

808nm / 150mW　VPS IR Laser Diode [TO-can]
808nm / 150mW　VPS IR Laser Diode [TO-can]
808nm / 150mW　VPS IR Laser Diode [TO-can]
808nm / 150mW　VPS IR Laser Diode [TO-can]

VPSL-0808-150-X-9-B データシート.pdf

波長: 800nm-815nm
出力: 130mW-150mW
電流: 160mA-220mA
電圧: 2.1V-2.4V
パッケージ: TO-can
形状: 円
拡がり角: 10, 12 deg

< Description >
The VPSL-0808-150-X-9-B is an 0.808 µm band, MOCVD grown, circularized, laser diode with a multi-quantum well (MQW) structure. It is suitable as a light source for DPSS pumping, imaging, projection, and various other types of optical equipment. Combined with an integrated, internal beam correcting optic and encased in a hermetically sealed package, this is a highperformance, highly reliable, and long life laser diode available with an integral photodiode.

< Features >
Circular, diverging beam, NA approximately 0.11
Diffraction limited wave front
150mW (CW maximum) optical power
Standard 9 mm form factor
