波長: 340nm-1150nm
テクノロジー: CMOS、CCD
ビーム径: Collimated beam size: 0.5m-3mm: FBP-1KF、0.5m-4mm: FBP-2KF
重さ: ~2kg: FBP-1KF、~2,6kg: FBP-2KF、~6kg: CinSpot FBP-50M
冷却方法: Water-cooled absorber, Tap or DI-water: 2l/min, 1bar, 20-25°C, Ø 8mm hose: FBP-1KF/CinSpot FBP-50M、Water-cooled absorber, Tap or DI-water; 4l/min, 2bar, 20-22°C, Ø 10mm hose: FBP-2KF

Industrial Solution - Beam Focus Measurement

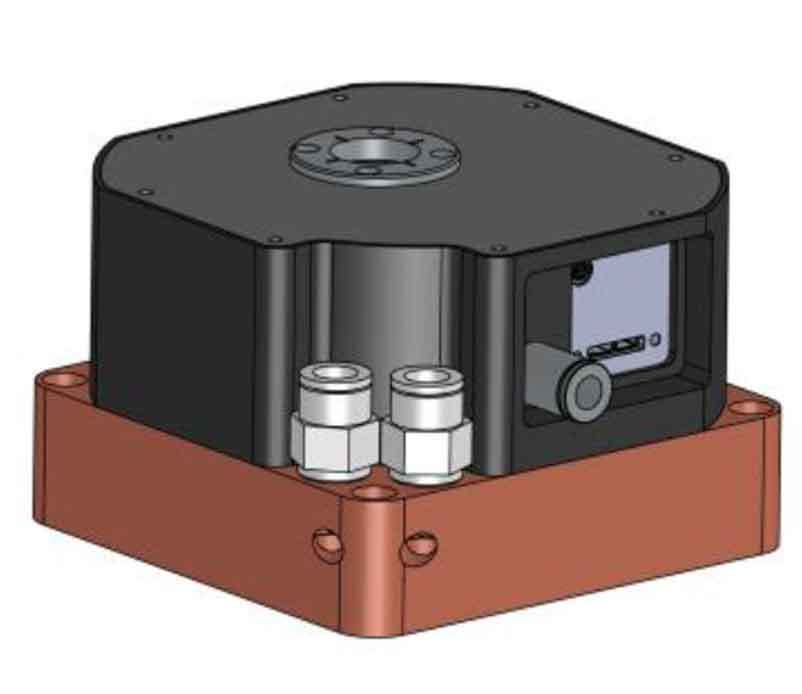

CINOGY‘s focus beam profilers are robust and compact analysis systems for focused lasers with up to 400W (FBP-1KF) and 1kW (FBP-2KF) power. The integrated CMOS sensor with USB3.0 interface enables precise real-time measurements.

The FBP’s are based on a multi-stage high-performance attenuator. An additional replaceable filter insert supports optimal adaptation of the attenuation to the respective laser power. The focused laser beam is guided directly to the sensor without imaging optics. Complex corrections of laser power-dependent image errors are no longer necessary.

The optical design allows for broadband use and covers all main wavelengths in material processing e.g. in service and maintenance of 3d metal printers, in the automotive industry, as well as in display and semiconductor applications.

- Focus size and position, M²-analysis, etc.
- High-resolution CMOS sensor
- Robust and compact measurement tool in industrial design (24/7)
- Quick and easy integration in optical set-up
- Water cooled
- Clean air flushing
- Absolute power calibration e.g. 1070nm
- 2D- and 3D-Caustic-Fit for visualizing focus parameter
