型番：OSTLDS808-2　メーカー：OsTech electro optical instruments 　商品コード：L000848

Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes

Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes
Calibrated Turn-Key 808nm High Power Laser Diode Source and Control System, Integrated 808nm 50 Watt DILAS Source, CW and QCW Operational Modes

メーカー希望小売価格: $6,895 波長: 808nm-808nm
出力: 50W-50W
パッケージ: Turn-Key Source and Control System
テクノロジー: Integrated DILAS Fiber Coupled Module

Product Overview:

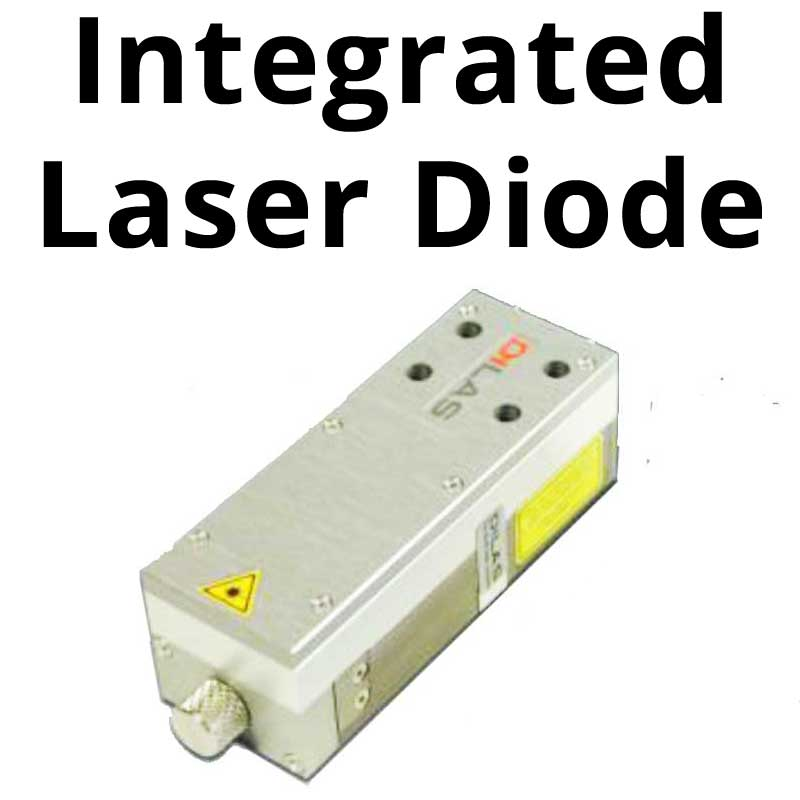

The OSTLDS808-2 series source and control systems are high performance fully integrated turn-key benchtop or rack mount laser diode source solutions. An integrated 50 Watt 808nm source module from DILAS is precisely controlled and delivers a high stability output.
These systems include a high power DILAS laser module, precision high power laser diode current source, 336 watt temperature controller and cooling plate assembly integrated into a 19 inch rack-mount enclosure.

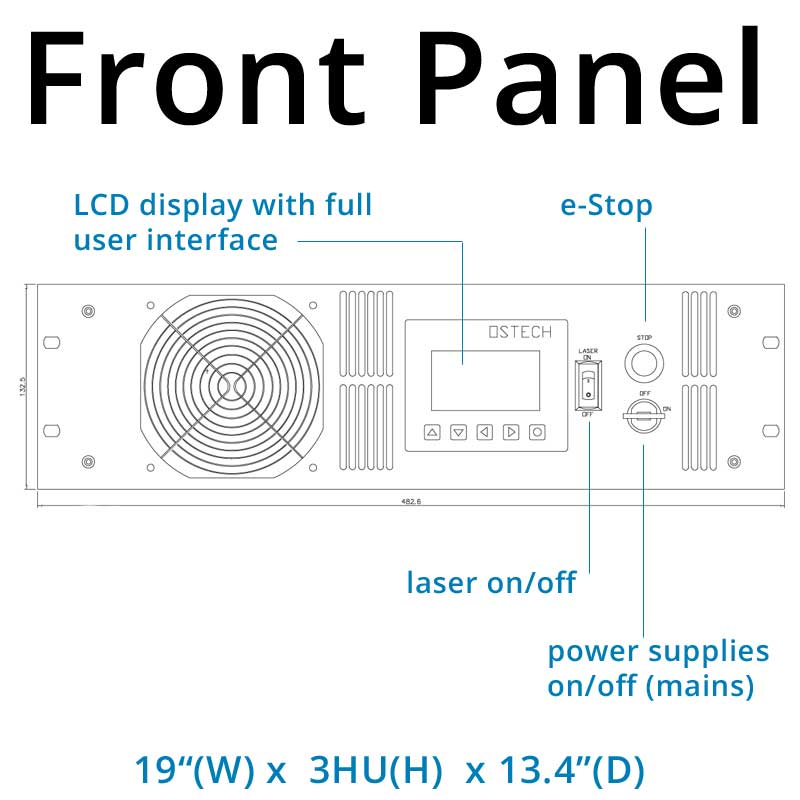

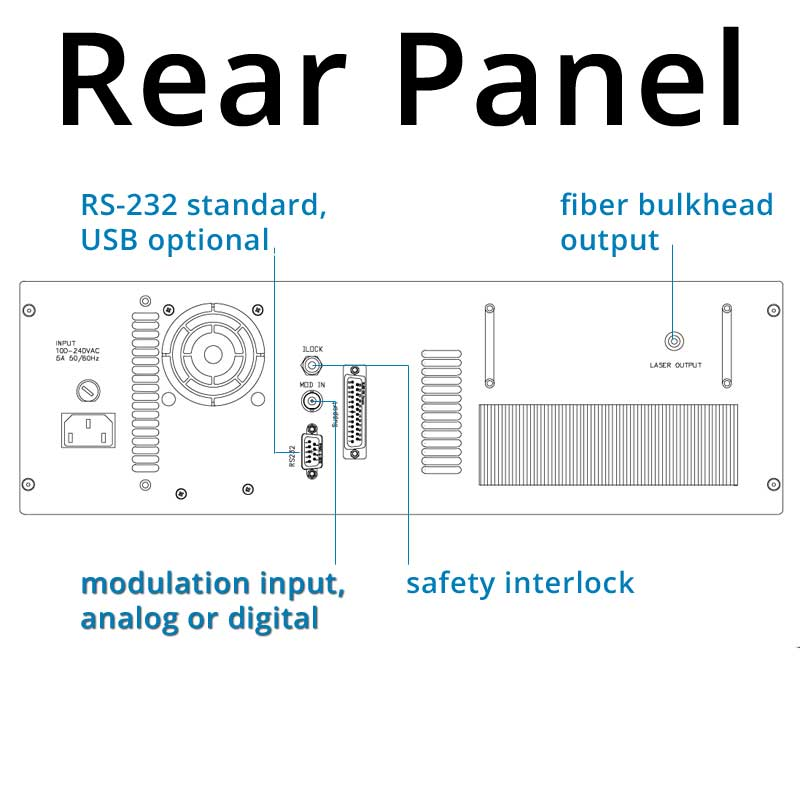

Multiple laser diode protection features ensure that the laser diode module is protected at all times, while the high power temperature controller with full PID control loop provides fast and efficient heat removal. Users have full control of the laser module power through the front panel interface or remotely by USB.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
