型番:AONano YAG266 メーカー:Advanced Optowave Corporation 商品コード:L002460

266nm / 50µJ, 100µJ, 200µJ, 400µJ Nanosecond Nd:YAG Laser

波長: 266nm-
出力: 0.5W-4W
エネルギー: 50 µJ-400µJ
テクノロジー: Nd:YAG Laser
パルス幅: <20ns
ビーム径: ~3.0mm
拡がり角: <1.0mrad
冷却方法: Air or Water

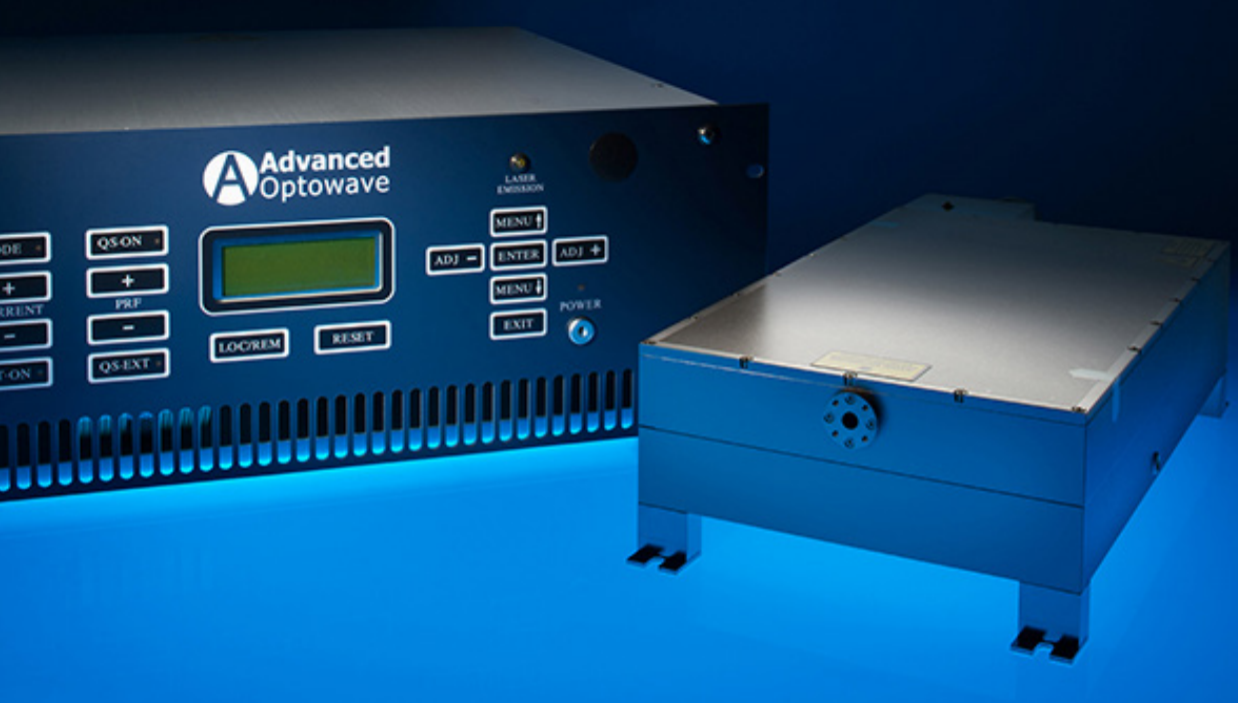

< AONano™ Q-Switched Diode Pumped Nanosecond Laser >
The AONano™ is our compact, diode-pumped solid-state, nanosecond Q-Switch laser that offers the broadest range of wavelengths, power/energy and gain medium choices in our extensive product portfolio. AONano™ is one of Advanced Optowave’s flagship product lines, and throughout our history it remains a strong performer.

The AONano™ Series is available in either Nd:YAG for high-energy applications or Nd:YVO4 for high repetition rate applications. We developed the AONano™ for high volume production environments where 24/7 reliable operations are required. Their compact form factor makes them easy to integrate into automated production tools. Depending on your application we have output power options ranging from 500 mW all the way up to 50 watts, energies up to 10 mJ and full control of the repetition rate from single-shot to 1 MHz. All of the AONano™ systems can be externally triggered and controlled remotely via an RS-232 communication link.

The AONano™ of lasers are available at a number of different wavelengths, we offer 1064 nm, 532 nm, 355 nm, and 266 nm as standard products and we can provide customer systems at 213 nm, making it one of the few lasers on the market today to offer so many wavelength choices.

The wavelength flexibility coupled with high quality beam and high output performance enables the AONano™ Series to provide efficient material processing of virtually any material in medical device manufacturing for stent manufacturing or UID marking or PCB singulation, in the semiconductor industry for wafer marking or dicing or repair, in additive manufacturing for stereo lithography or sintering, medical therapies/biosciences for glucose monitoring devices or microfluidics for drug analysis and the defense sector for advanced R&D.

(Features & Benefits)
Lowest Cost of Ownership in the Industry
Available in IR, Green, UV and Deep UV
High Performance, Reliable Design
Excellent Beam Quality of M2 <1.2
Simple, Intuitive Control Features
Pulse Energies up to 10mJ

Rapid Prototyping
Marking, Engraving & Coding
Diamond Cutting and Marking
Scientific and Biomedical Injector
Rigid PCB and Flex Circuit Processing
Semiconductor/PV Processing/Wafer Scribing

Average Power(W) 0.5
Energy(µJ) 50
Cooling Air

Average Power(W) 1
Energy(µJ) 100
Cooling Air

Average Power(W) 2
Energy(µJ) 200
Cooling Water

Average Power(W) 4
Energy(µJ) 400
Cooling Water

Common specification;
Specified Repetition Rate (kHz) 10
Repetition Rate (kHz) Single Shot to 50
Beam Quality (M2) <1.3
Beam Roundness (%) >85
Point Stability (µrad/ºC) <20
Polarization Ratio 100:1 Linear, Horizontal
Pulse-to-Pulse Stability (% RMS) <2
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up (mins.) <40
Standby Warm-Up (mins.) <10
Operational Temperature Range (ºC) 15 to 30
Operation Humidity Range (%) 20 to 80 non-condensing
Storage Temperature Range (ºC) -20 to 50
Storage Humidity Range (%) 20 to 80 non-condensing
Input Voltage (VAC) 90 to 260
Line Frequency (Hz) 47 - 63

価格 地域 代理店
要問い合わせ サンインスツルメント株式会社
