型番：OPLDD002 メーカー： 商品コード：L002845

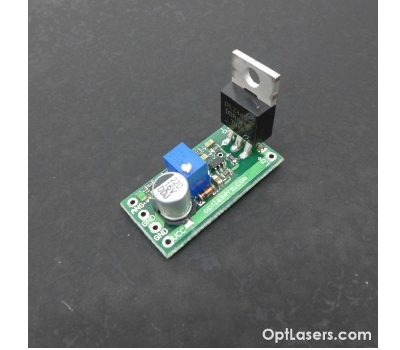

These small circuit boards are basic drivers for laser diodes requiring less than 5 Amps of current. They are for powering lasers with the option to adjust maximum output current in the range of zero to 5,000mA, and they allow the user to modulate the current flowing through the diode with a frequency up to 100kHz. The modulation input for these circuits is Analog, not square wave or TTL. These small circuit boards typically ship from stock and are an excellent choice for product development applications involving pump lasers and other devices requiring a few amps of forward current. They offer basic protection features such as a slow start current ramp to the set point. Users should take caution to connect the polarity correctly. These affordable drivers do not have temperature control functions.
1260nm / 500mW Multimode Fabry-Perot Laser Diode (HHL w/fiber)

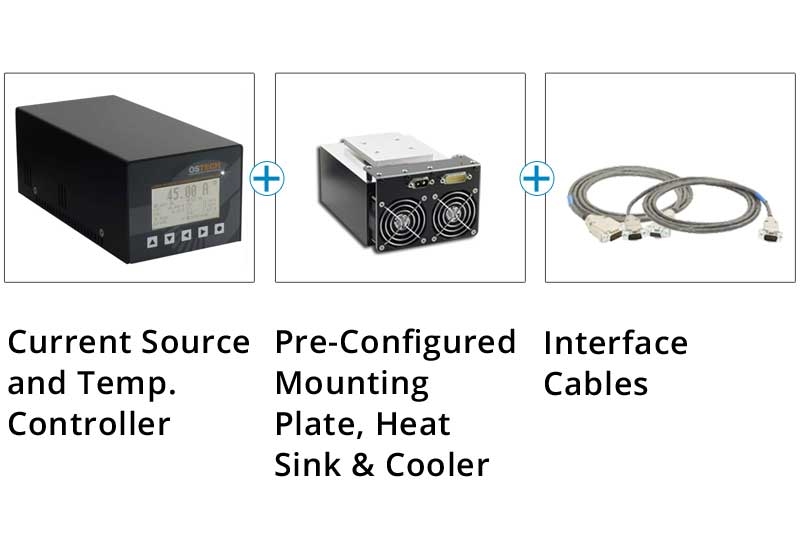

Calibrated Turn-Key System with Integrated 980nm, 40W LIMO Laser Diode Module
