型番：　メーカー：m2k-laser GmbH (COHERENT / DILAS)　商品コード：L000507

765nm, 790nm Tapered Amplifier

765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier
765nm, 790nm Tapered Amplifier

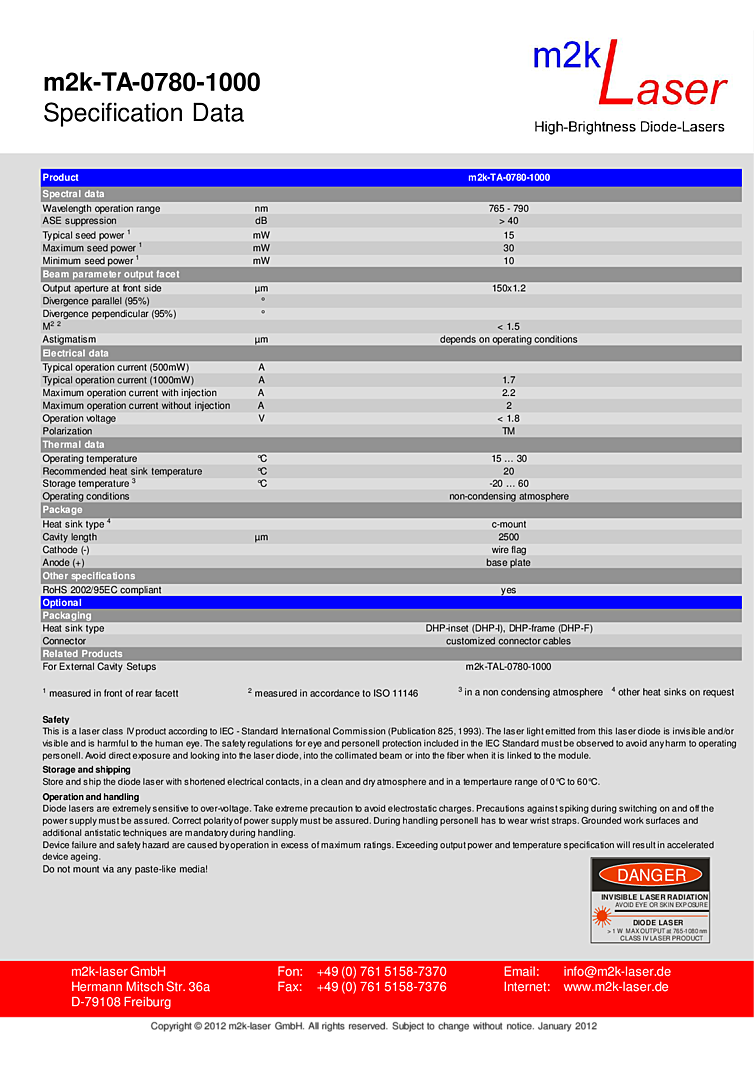

波長: 765nm-790nm
出力: 1000mW-1000mW

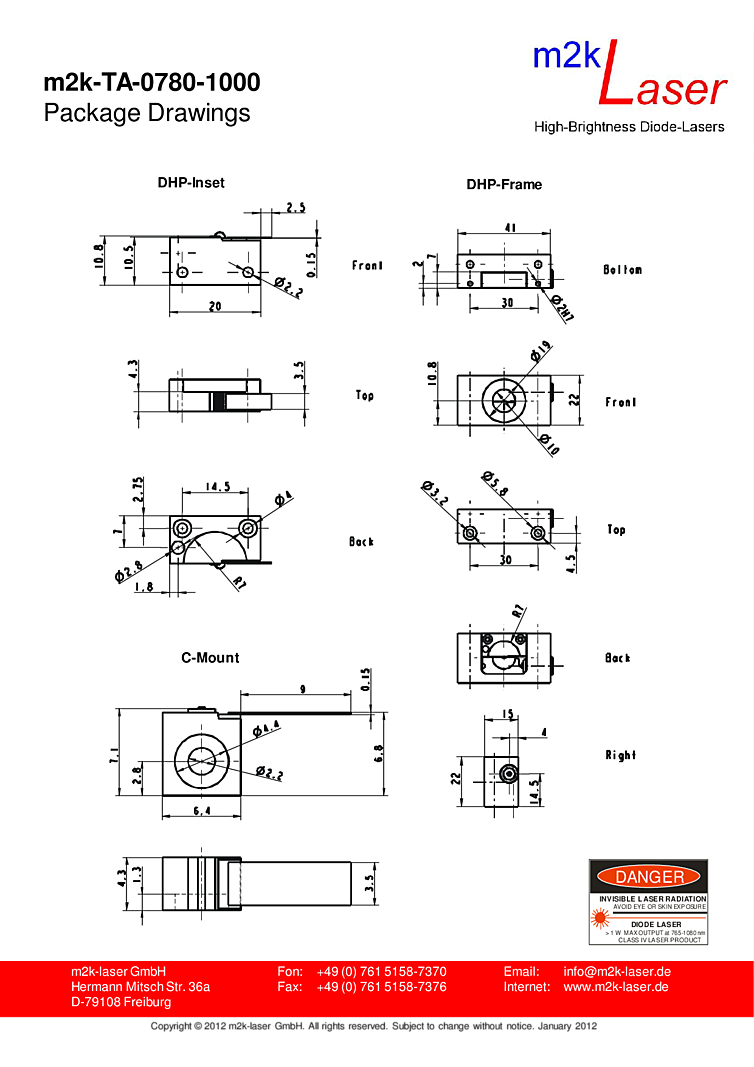

パッケージ: c-mount, COB
テクノロジー: tapered amplifier

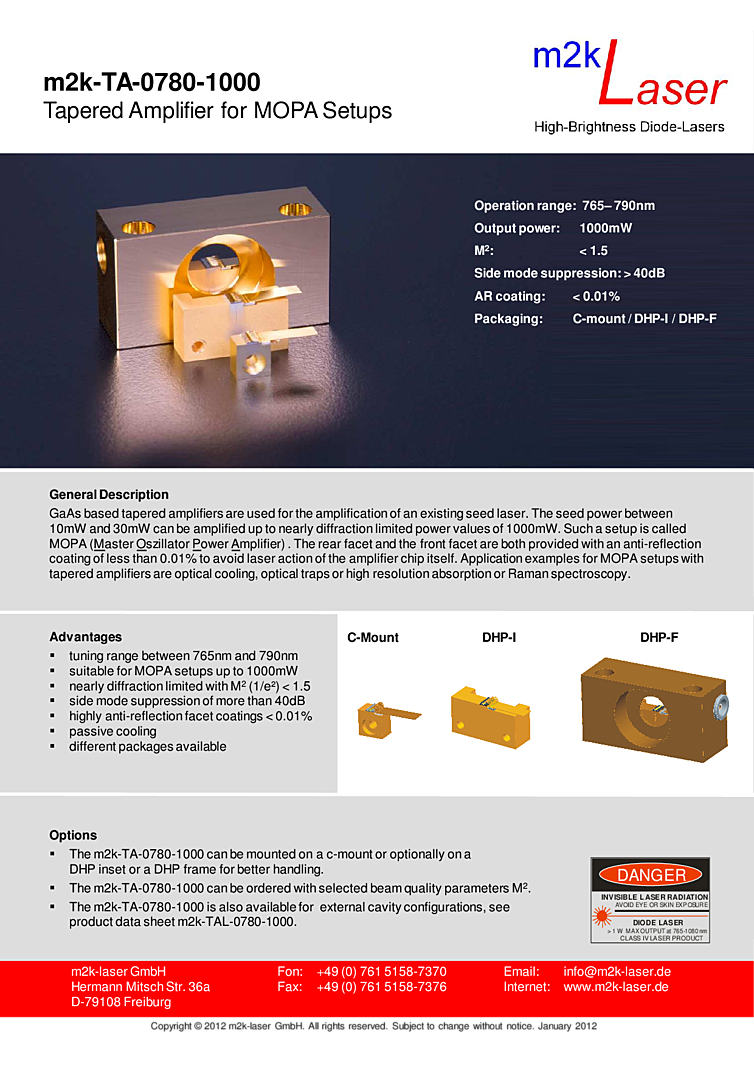

765nm, 790nm General Description of this m2K laser tapered amplifier: GaAs based tapered amplifiers are used for the amplification of an existing seed laser. The seed power between 10mW and 30mW can be amplified up to nearly diffraction limited power values of 1000mW. Such a setup is called MOPA (Master Oszillator Power Amplifier) . The rear facet and the front facet are both provided with an anti-reflection coating of less than 0.01% to avoid laser action of the amplifier chip itself. Application examples for MOPA setups with tapered amplifiers are optical cooling, optical traps or high resolution absorption or Raman spectroscopy.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社ブルーアロー(high-brightness TA, TAL products)
要問い合わせ 株式会社ルクスレイ(DILAS High-Power Products)
