型番：ADL-65074SW　メーカー：Arima Lasers Corporation　商品コード：L000352

650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)

650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)
650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)
650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)
650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)
650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)
650nm / 7mW　AlGaInP APC Visible Laser Diode (85°C High Reliable Operation)

ADL-65074SW データシート.pdf

波長: 645nm-660nm
出力: -7.0mW
電流: 26mA-35mA
電圧: 2.5V-6.0V

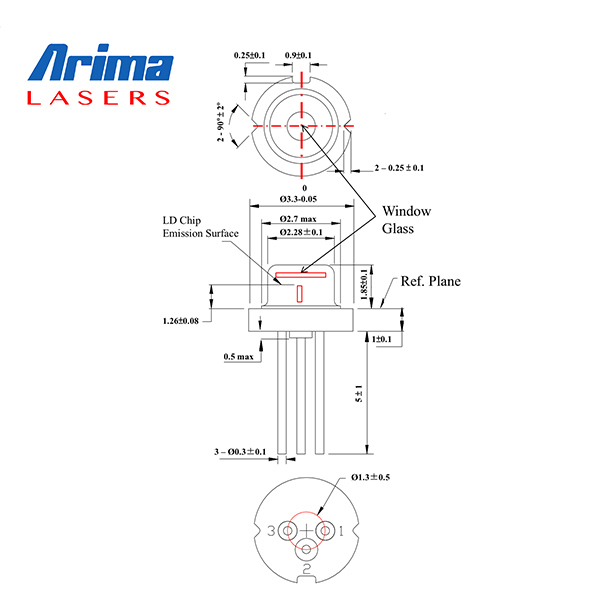

パッケージ: TO-can

< FEATURES >
650nm 7mW 85°C high reliable operation
Saving space and cost of laser module

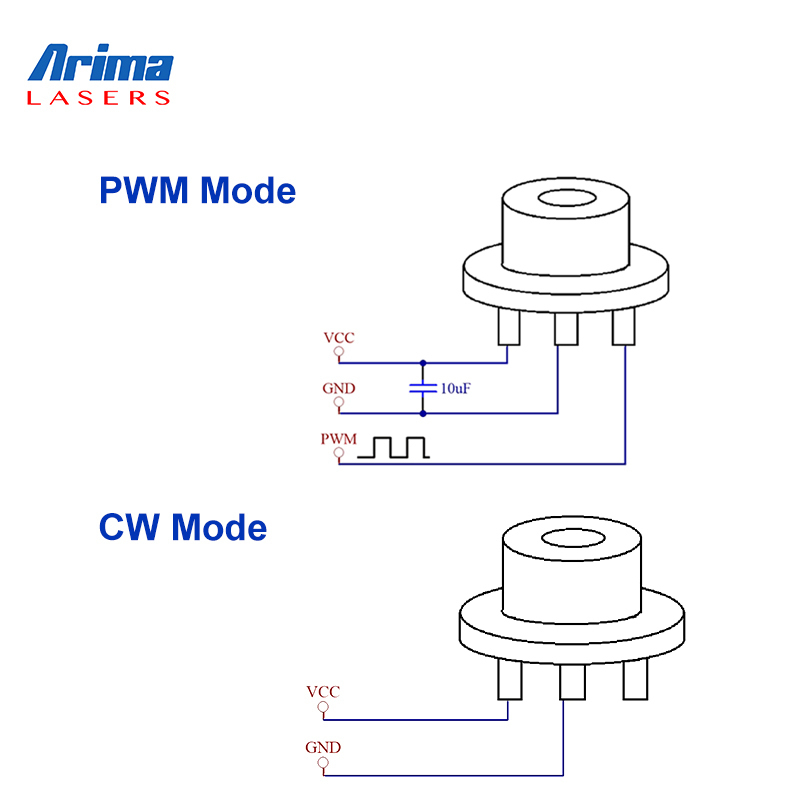

Voltage driven LD, easy to use
High stable laser output power
Strong reverse bias protection
High ESD sustainability voltage
High speed short protection
Power source reverse protection

< APPLICATION >
Industry：laser level, illumination, meter, scanner, detector
Consumer：point light, sweeper, game lighting
Health：special wavelength light source
