型番：　メーカー：Finisar Corporation　商品コード：L000925

VCSEL, 1 to 8 Gbps, 850nm

VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm
VCSEL, 1 to 8 Gbps, 850nm

波長: 850nm-850nm
出力: 1mW-1mW
パッケージ: LC-TOSA
テクノロジー: VCSEL, 1 to 8 Gbps

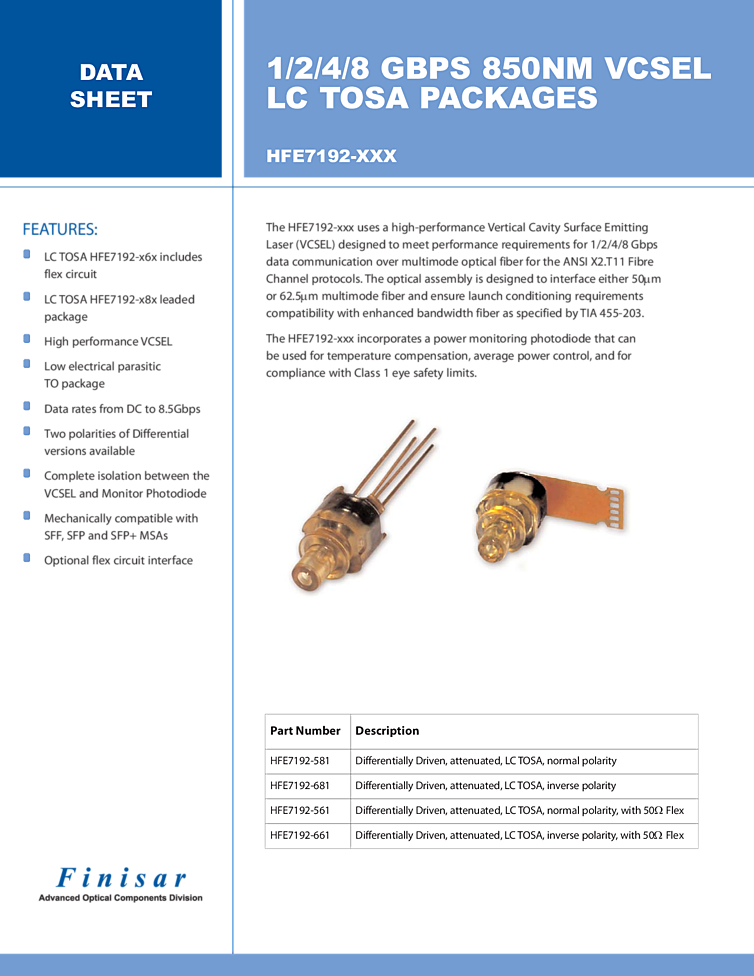

850nm The HFE7192 uses a high-performance Vertical Cavity Surface Emitting Laser (VCSEL) designed to meet performance requirements for 1/2/4/8 Gbps data communication over multimode optical fiber for the ANSI X2.T11 Fiber Channel protocols. The optical assembly is designed to interface either 50μm or 62.5μm multimode fiber and ensure launch conditioning requirements compatibility with enhanced bandwidth fiber as specified by TIA 455-203.
The HFE7192-xxx incorporates a power monitoring photodiode that can be used for temperature compensation, average power control, and for compliance with Class 1 eye safety limits.
