型番： メーカー：m2k-laser GmbH (COHERENT / DILAS) 商品コード：L000487
1W Laser Diode
波長: 750nm-775nm
出力: 1000mW-1000mW
パッケージ: C-mount, COB
テクノロジー: tapered amplifier
750nm, 775nm M2K Lasers: Tapered Amplifier for MOPA Setups:
Advantages:
- tuning range between 750nm and 775nm
- suitable for MOPA setups up to 1000mW
- nearly diffraction limited
- side mode suppression of more than 40dB
- highly anti-reflection facet coatings < 0.01%
- passive cooling
- different packages available
Options:

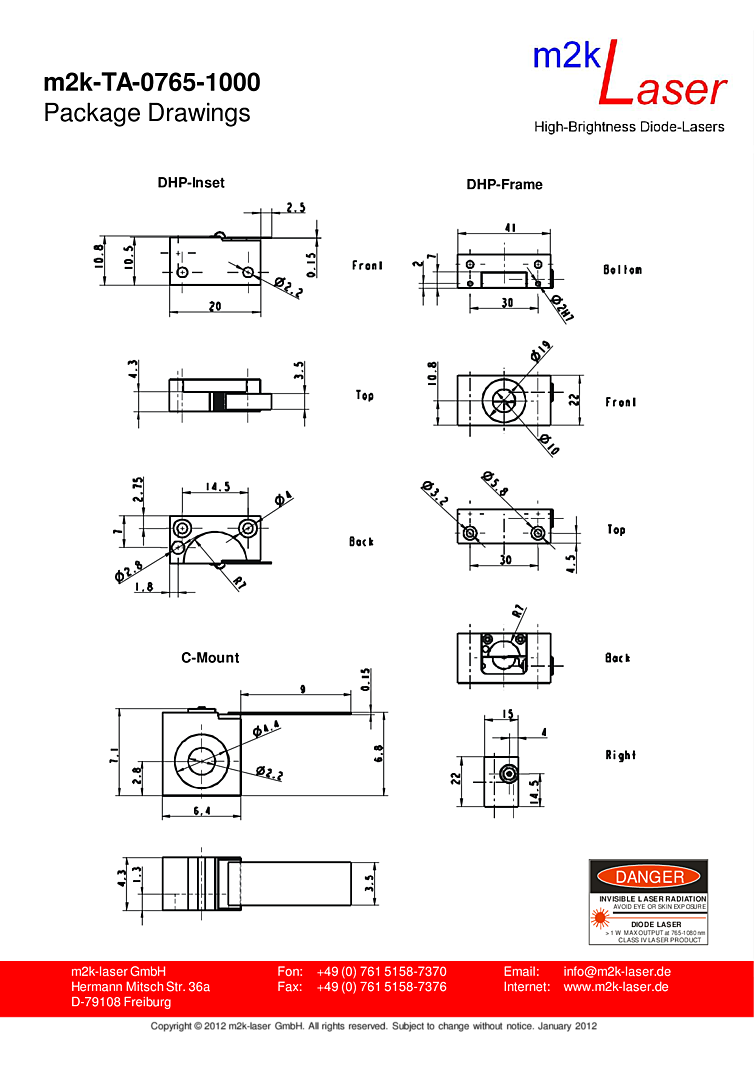

- The m2k-TA-0765-1000 can be mounted on a c-mount or DHP inset or a DHP frame for better handling.
- The m2k-TA-0765-1000 can be ordered with selected beam quality parameters M2
- The m2k-TA-0765-1000 is also available for external cavity configurations
m2k-laser GmbH
Fon: +49 (0) 761 5158-7370
Email: info@m2k-laser.de
Hermann Mitsch Str. 36a
D-79108 Freiburg
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社ブルーアロー(high-brightness TA, TAL products) | ||
| 要問い合わせ | 株式会社ルクスレイ(DILAS High-Power Products) | ||
