型番：CP-830-PLR500　メーカー：Ondax, Inc.　商品コード：L001064

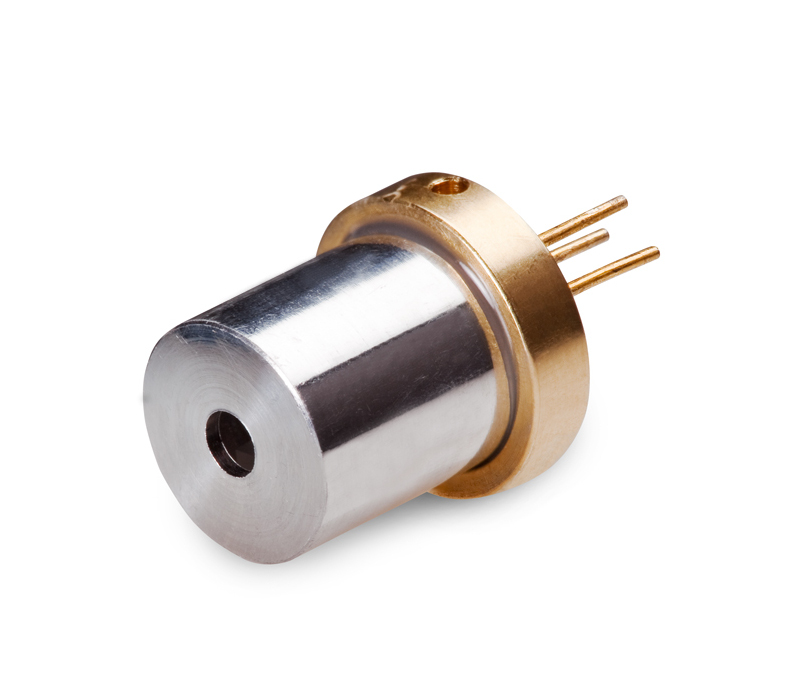

830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output

830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output
830nm, Wavelength Stabilized Narrow Linewidth Laser Diode with Collimated Output

メーカー希望小売価格: Request Price 波長: 830nm-830nm
出力: 500mW-500mW
スペクトル幅: < 500kHz

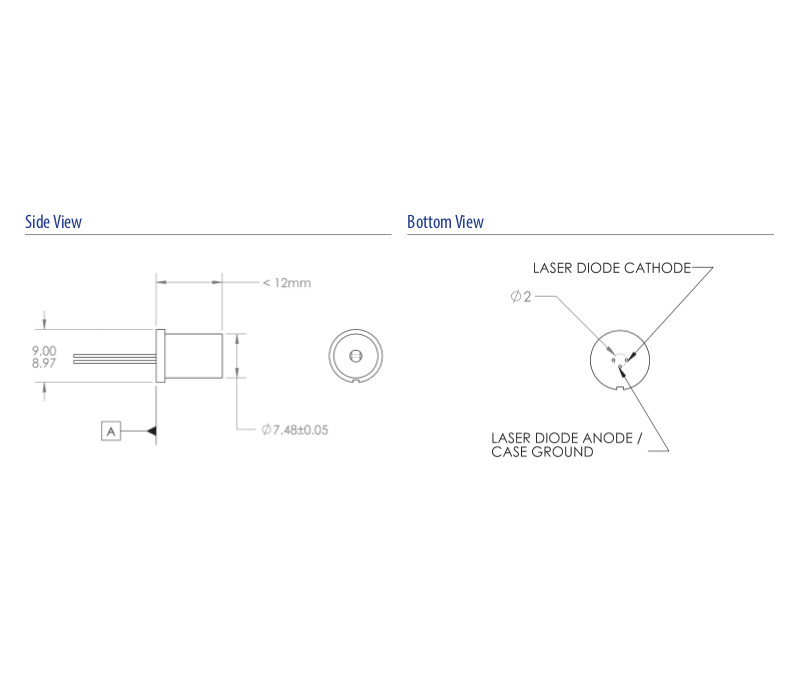

パッケージ: TO-can, collimated
テクノロジー: narrow linewidth laser

Product Overview:

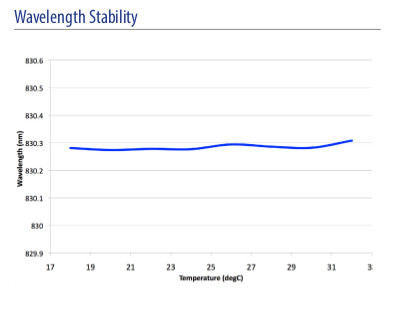

Ondax high power multi-mode laser diode with Volume Holographic Grating to ensure precise, ultra-stable center wavelengths, low temperature dependence, and consistent optical performance over the locked region. Output wavelength is 830nm with a wavelength stability of 0.01nm/°C over a temperature range of 20°C to 40°C. Operating power up to 500mW CW.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
