型番: メーカー:三菱電機株式会社 商品コード:L000408

658nm 160mW | Diode Laser

波長: 658nm-658nm
出力: 160mW-160mW
パッケージ: TO-can
テクノロジー: n/a

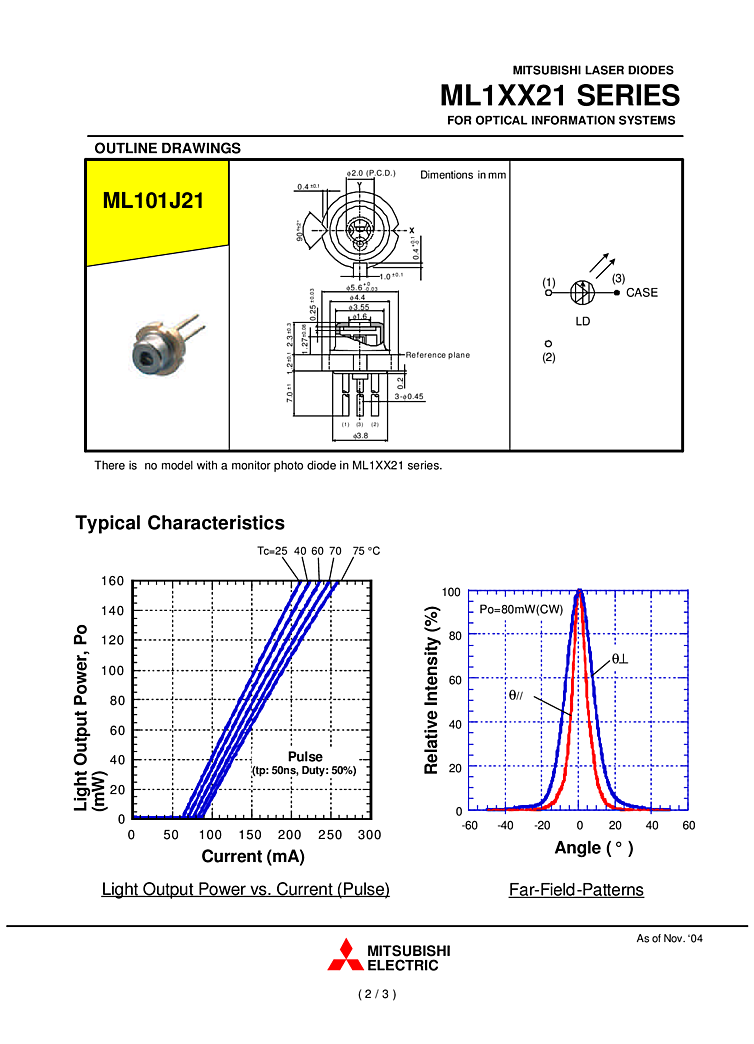

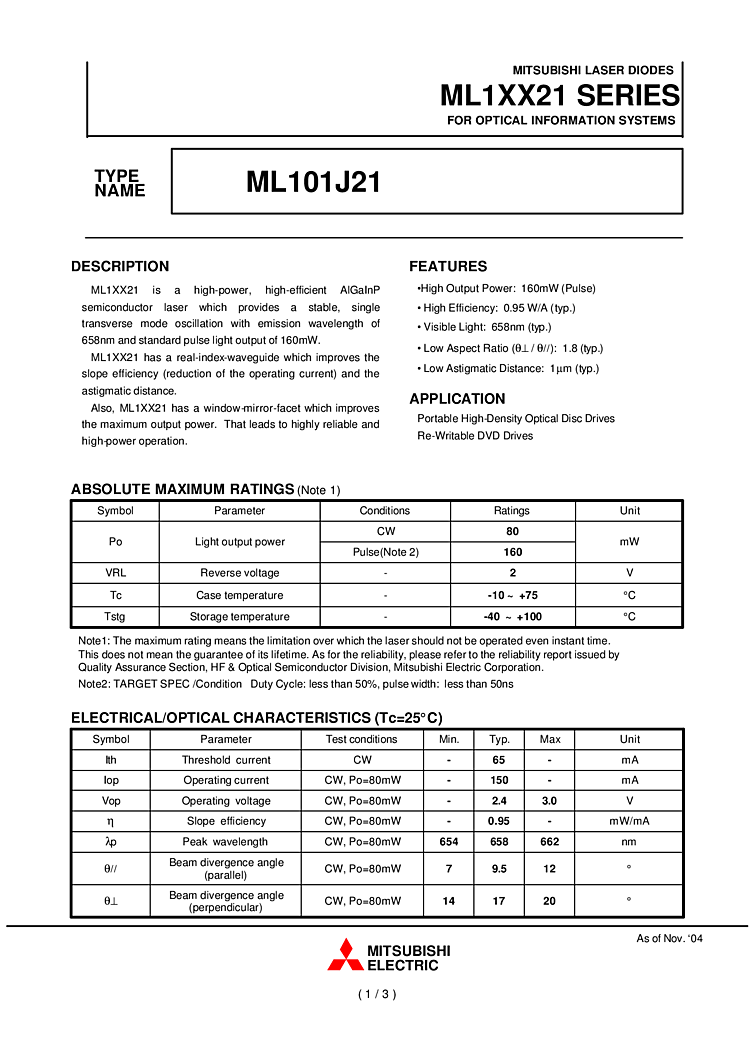

658nm MITSUBISHI LASER DIODES FOR OPTICAL INFORMATION SYSTEMS: high-power, high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 160mW. ML1XX21 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance. Also, ML1XX21 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation.
FEATURES:
- High Output Power: 160mW (Pulse)
- High Efficiency: 0.95 W/A (typ.)
- Visible Light: 658nm (typ.)
- Low Aspect Ratio (q^ / q//): 1.8 (typ.)
- Low Astigmatic Distance: 1mm (typ.)

Applications include portable high-density optical disc drives and re-writable DVD drives.
