型番：　メーカー：Quantel (LD)　商品コード：L002454

1064 nm Fiber Laser, Nanosecond, 800µJ

1064 nm Fiber Laser, Nanosecond, 800µJ
1064 nm Fiber Laser, Nanosecond, 800µJ
1064 nm Fiber Laser, Nanosecond, 800µJ
1064 nm Fiber Laser, Nanosecond, 800µJ

波長: 1064nm-1064nm
出力: 20W-20W
テクノロジー: Fiber Laser

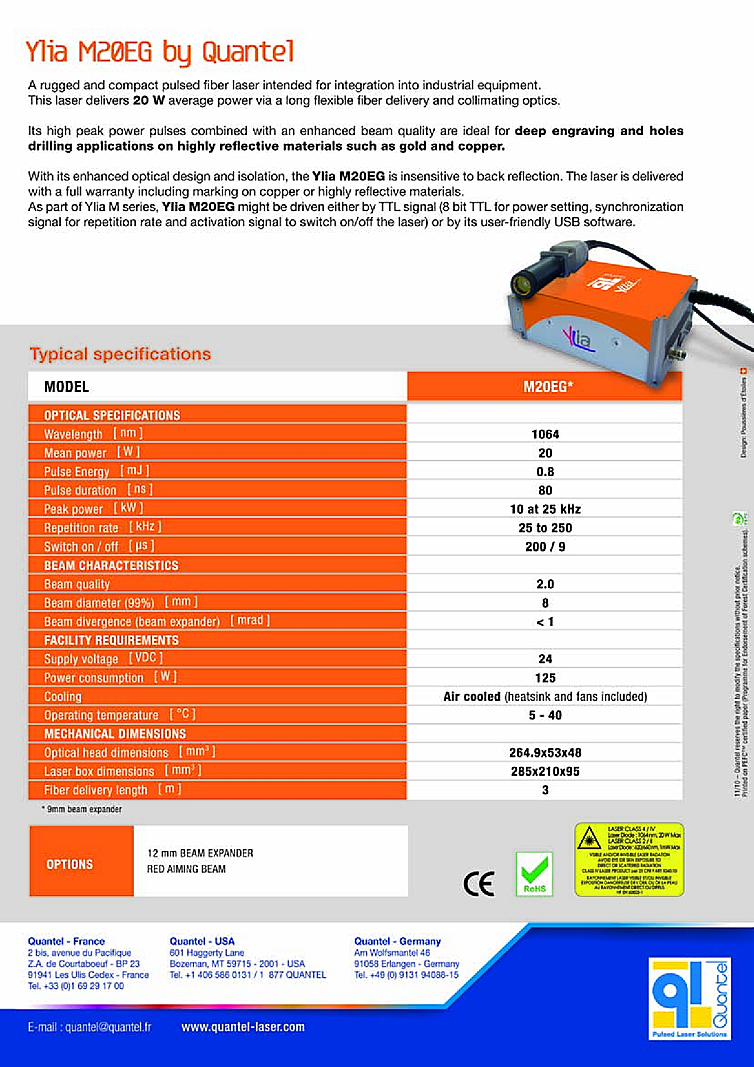

KEY SPECIFICATIONS
Wavelength: 1064nm Mean Power: 20 WattsPulse Energy: 0.8 mJ Pulse Duration: 80nsRepetition Rate: 25 kHz to 250 kHzSwitch Off: 200 / 9 µs

BEAM CHARACTERISTICS
Beam Quality: 2.0 Beam Diameter (99%): 8 mmBeam Divergence: <1 mrad

OPTIONS
12 Beam Expander Red laser for aiming

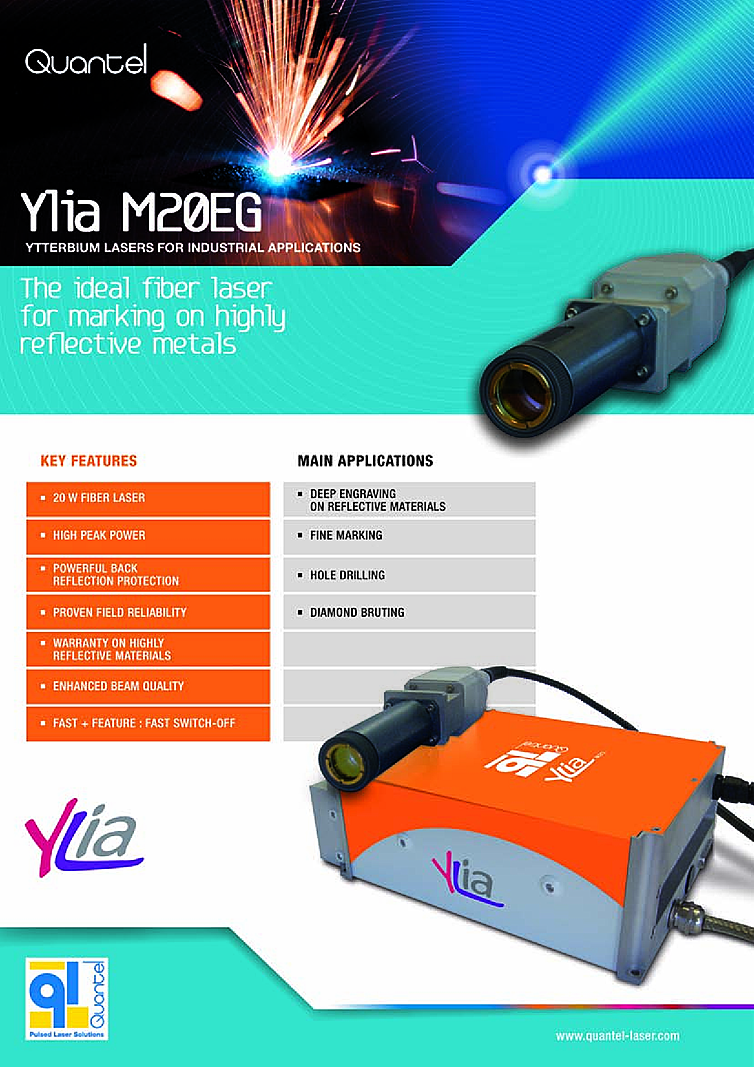

Fiber laser designed for marking on highly reflective surfaces. Up to 20 watts of average output power and peak power up to 25 kW at 25 kHz. Designed for long term reliability in industrial environments and efficient laser design only requires air-cooling. For remote control options the Quantel laser can be controlled either by 8 bit TTL or user friendly USB remote interface. Optional 12 mm beam expander and red aiming laser. Quantel Fiber Laser output energy up to 800 µJ at a wavelength of 1064 nm.
