型番：MO-IR-01　メーカー：Cinogy Technologies　商品コード：L003895

IR Module/ Sensor Coating

波長: 1470nm-1605nm
パッケージ: C-Mount

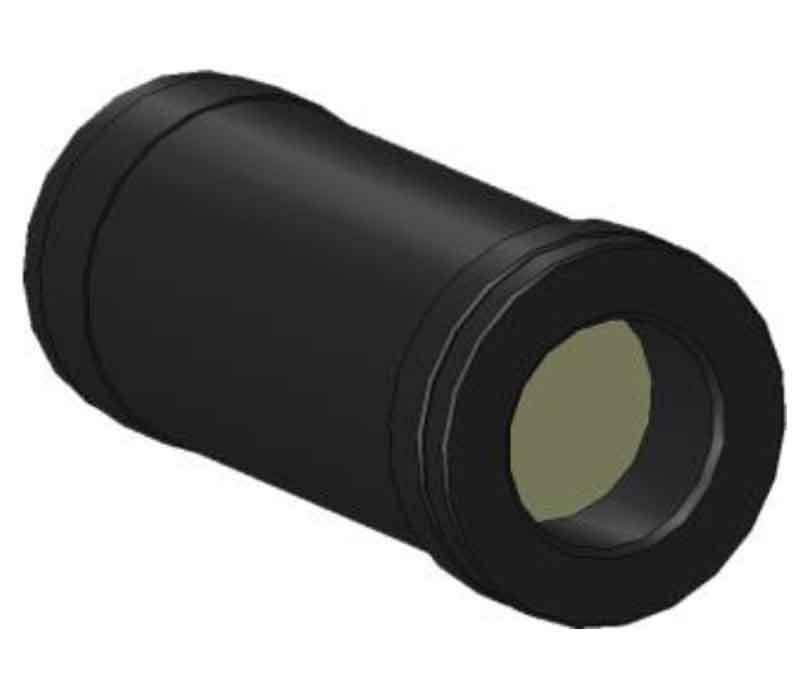

IR Module:
The C-Mount converter module is an add-on to the standard 1/2” CinCam Beam Profiler and extends sensitivity into the near IR range. The cost effective module is based on complex non charge anti-stokes material with unique emission properties. It converts 1495nm-1595nm photons to CCD/CMOS detectable wavelengths without fading or image lag. A lens transfers the converted image to the attached CinCam Beam Profiler.

Sensor Coating:
CINOGY Technologies provides phosphor coatings located directly on the CinCam sensor. The robust and non-charge anti-stokes material is ideally suited for beam profiling between 1470nm-1605nm wavelengths. The real-time nature of the coating confers significant and cost effective benefits over other IR imaging techniques.

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ		光貿易株式会社

IR Module/ Sensor Coating
