型番：ARR97C020、ARR97C040、ARR97C040-19E　メーカー：Northrop Grumman Corporation　商品コード：L000626

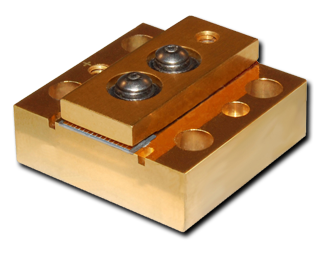

Directly Bonded Cs Packages

Directly Bonded Cs Packages
Directly Bonded Cs Packages

Directly Bonded Cs Package データシート.pdf

波長: 790nm-1550nm
出力: 20W-40W
電流: 25A-47A
電圧: 1.7V-1.9V
パッケージ: Cs package
テクノロジー: High power laser diode array

The Cs package is a standard in the laser industry. It often serves as a building block for large laser systems, or a stand-alone unit in a laboratory environment. CEO offers a unique version of the Cs package based upon its Golden Bullet technology that enables the use of multiple bars per package. The CEO Cs package is available with up to 8 bars in a QCW configuration that can provide up to 2.4 kW of peak power. The Cs package is also available in a single-bar, 40W CW version.

The Cs package mounts easily into a laser system or direct-diode application. It is available in any of CEO’s standard wavelengths (790-820 nm, 872-890 nm, 930-950 nm), and custom wavelengths are also available. Many configurations are available with fast-axis collimation, with divergence values less than 0.2° (FWHM).

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
