型番:20.220.00055、20.220.00062、20.220.00063、20.220.00095 メーカー:Artifex Engineering 商品コード:L003797

SP20x2.0/2.2/2.5 IGA Detector for OPM150

波長: 800nm-2500nm
出力: 2μW-400mW

< Description >

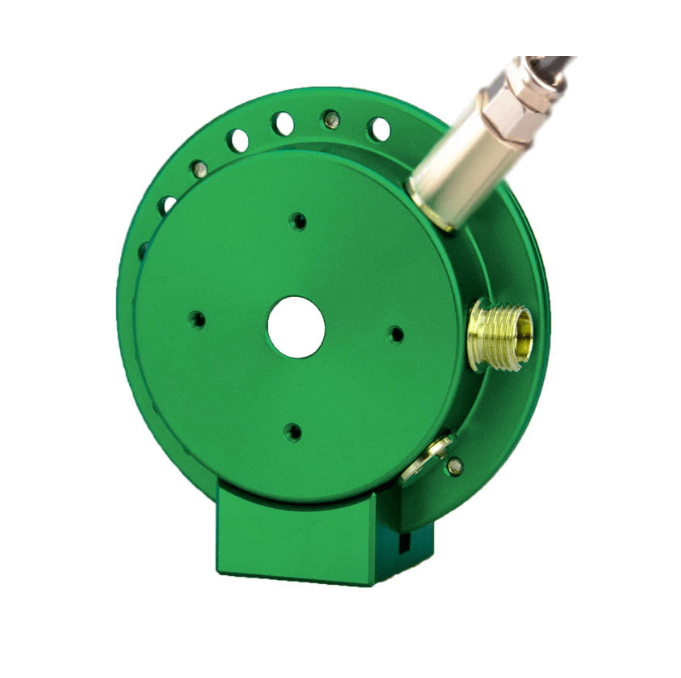

These detectors consist of a 20mm integrating sphere and a photodiode detector port. It is compatible with our OPM150 series of optical power meters. As the sphere is equipped with three output ports, two additional ports should be selected during configuration (fiber, photodiode or blind plug). When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration.


SP20x2.0IGA Detector for OPM150 (20.220.00055/20.220.00062)
 A 20mm inner diameter integrating sphere encorporating an M8 x2.0IGA photodiode detector port.

< Specifications >
Reflective material: ultra white polymer
Internal diameter: 20mm
Cooling: convection
Wavelength range: 800-2000nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 400mW (at 1550nm)
Maximum outer dimensions: ø54.2mm x 31.5mm


SP20x2.2IGA Detector for OPM150 (20.220.00055/20.220.00063)
 A 20mm inner diameter integrating sphere encorporating an M8 x2.2IGA photodiode detector port.

< Specifications >
Reflective material: ultra white polymer
Internal diameter: 20mm
Cooling: convection
Wavelength range: 1000-2200nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 400mW (at 1550nm)
Maximum outer dimensions: ø54.2mm x 31.5mm


SP20x2.5IGA Detector for OPM150 (20.220.00055/20.220.00095)
 A 20mm inner diameter integrating sphere encorporating an M8 x2.5IGA photodiode detector port.

< Specifications >
Reflective material: ultra white polymer
Internal diameter: 20mm
Cooling: convection
Wavelength range: 1300-2500nm
Input aperture: ø7mm
Minimum measureable power: 2µW (at 1550nm)
Maximum measureable power: 400mW (at 1550nm)
Maximum outer dimensions: ø54.2mm x 31.5mm


【Accessories】
Adapters for tube systems
Adapters for fibre inputs: FC, SMA


【Options】
Output ports:
SMA fibre
FC fibre
Photodiode
Blind plug

価格 地域 代理店
要問い合わせ 京都府 株式会社光響
