型番：30.070.00043、30.070.00057　メーカー：Artifex Engineering　商品コード：L003789

OPM150 x2.0IGA FC/SMA-Detector

波長: 800nm-2000nm
出力: 2nW-8mW

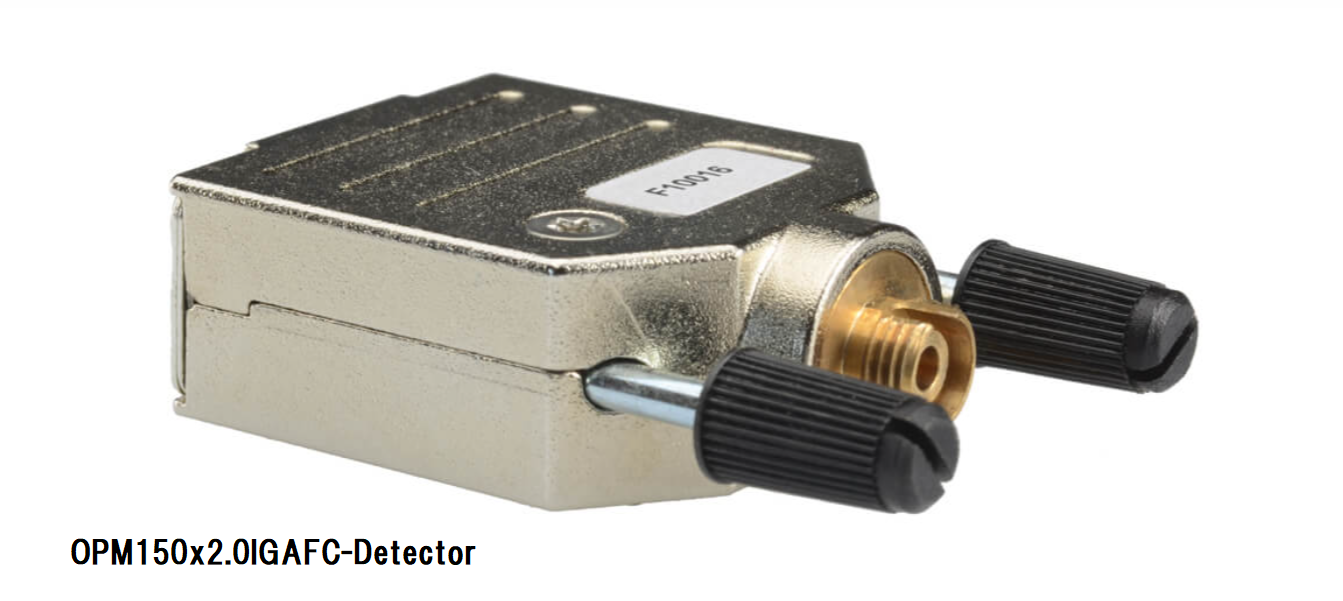

・OPM150x2.0IGAFC-Detector (30.070.00043): FC fibre connector
　This compact unit is designed specifically for measurement of power out of FC-connectorized fibres only.

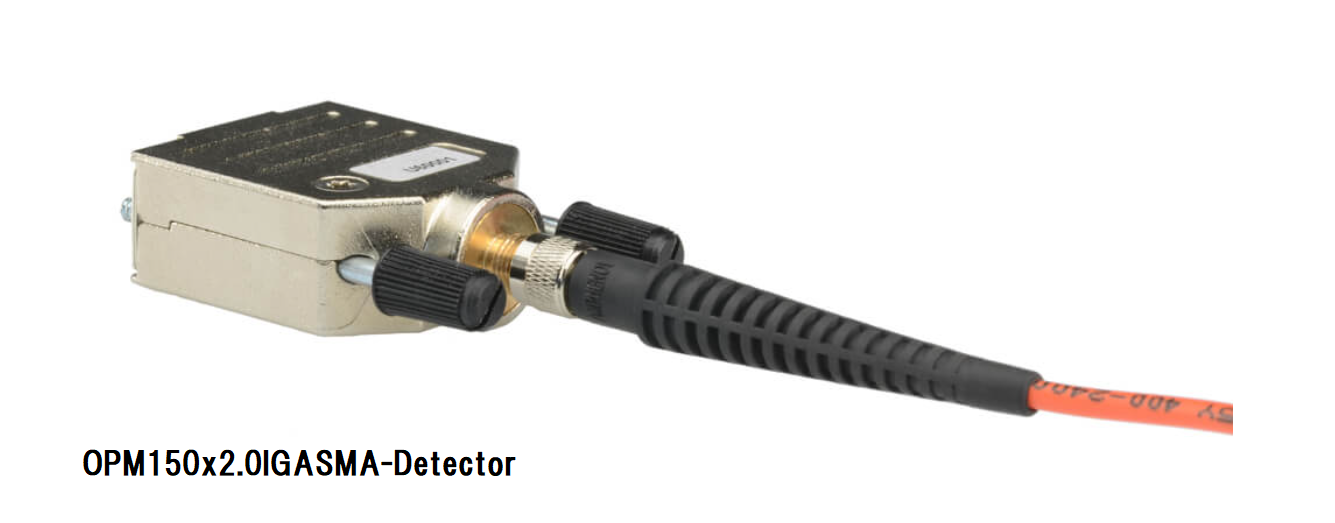

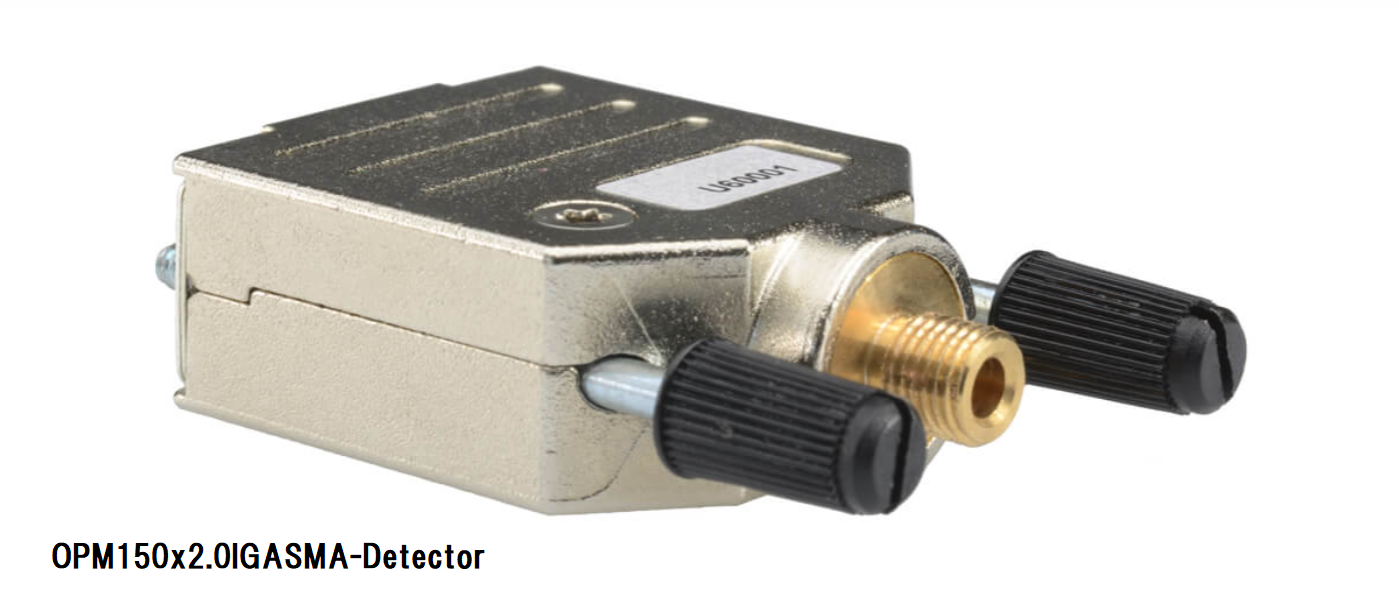

・OPM150x2.0IGASMA-Detector (30.070.00057): SMA fibre connector
　This compact unit is designed specifically for measurement of power out of SMA-connectorized fibres only.

< Description >
An InGaAs photodiode detector head, compatible with the OPM150 series of optical power meter. The special design of the material gives high sensitivity up to 2000nm. The fibre receptacle, photodetector and calibration memory chip are all contained in the connector body. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system.

< Specifications >
Wavelength range: 800-2000nm
Maximum fibre core: ø200µm at NA 0.22
Minimum measureable power: 2nW (at 1550nm)
Maximum measureable power: 8mW (at 1550nm) with Base Module 30.070.00002, 4mW (at 1550nm) with Base Module 30.070.00058
Maximum outer dimensions: 47.5 x 31.3 x 14.8mm

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ	京都府	株式会社光響

OPM150 x2.0IGA FC/SMA-Detector
