型番： メーカー：Spectra-Physics 商品コード：L002438
Nanosecond Laser, 532nm, 63µJ
波長: 532nm-532nm

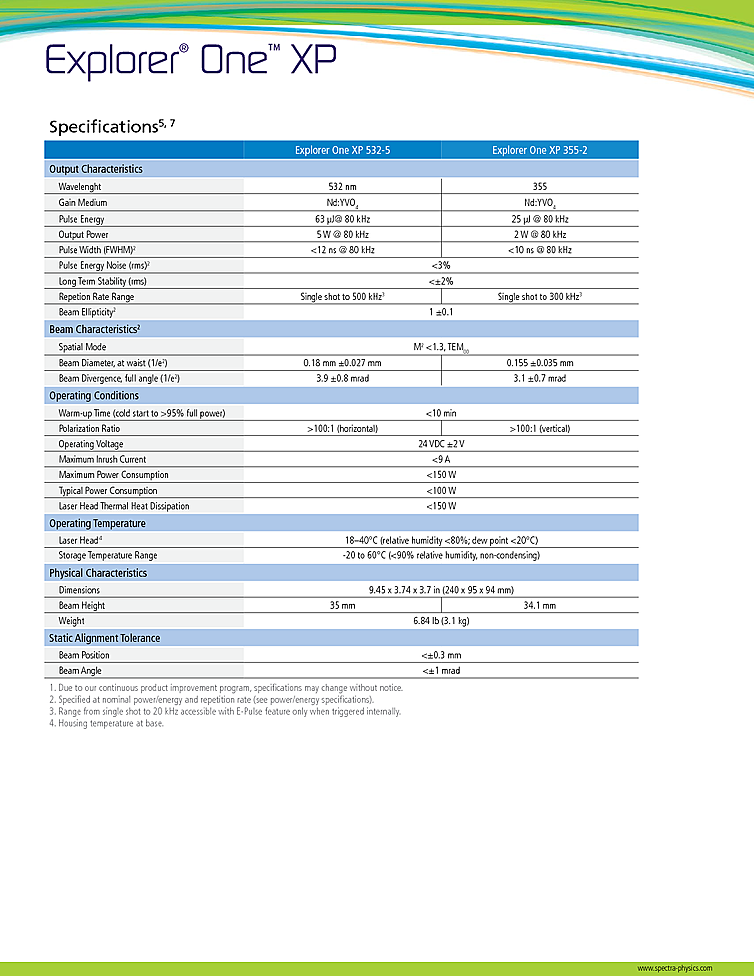

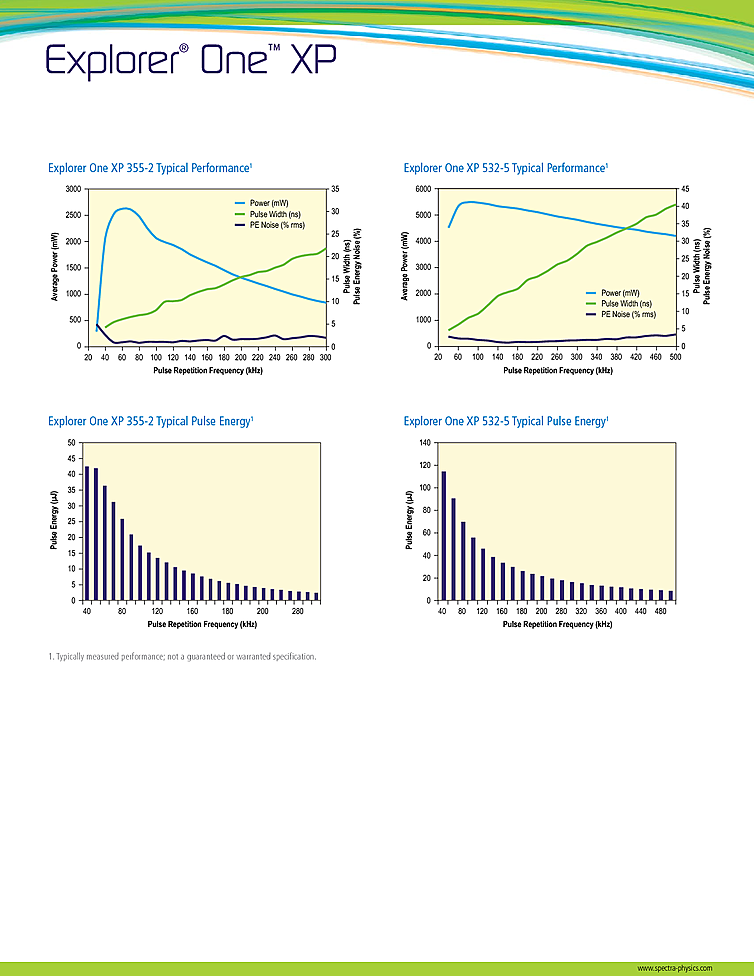

Nanosecond laser with compact integrated design from Spectra-Physics. Applications for the diode pumps solid state laser include Thin film photovoltaic manufacturing, Marking - Stainless steel and other metals, HDPE, semiconductor wafers and LED chips, Resistor trimming and Micromachining. The all in one laser and electronics is lightweight (only 3kg) and air cooled which is ideal for integrating into marking applications. Gaussian beam with typical M2 <1.1 and high pulse energy stability of less the 3%. Single shot to 500 kHz pulse repetition interval and a 12ns pulse duration at 80kHz. Nanosecond laser with wavelength of 532nm and output energy up to 63µJ.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | スペクトラ・フィジックス株式会社 | ||
