型番： メーカー：m2k-laser GmbH (COHERENT / DILAS) 商品コード：L002069
2300nm Laser Diode
波長: 2300nm-2300nm
出力: 35mW-35mW
パッケージ: c-mount
テクノロジー: ridge waveguide laser

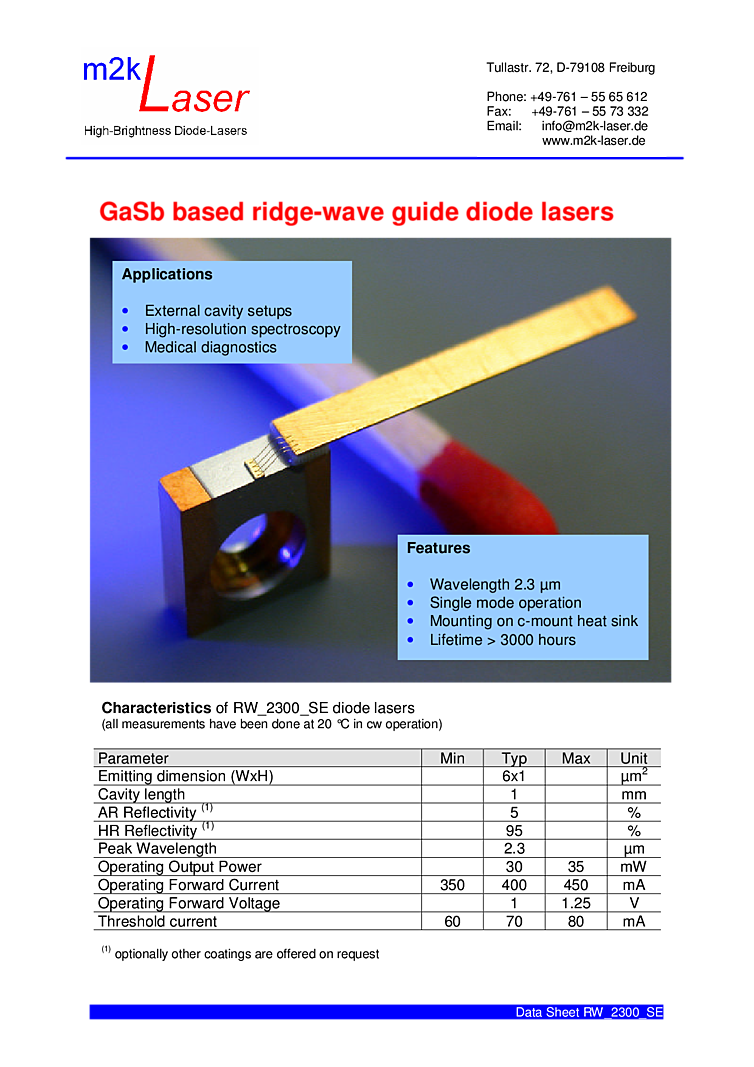

2300nm from m2k Laser are GaSb based ridge-wave guide diode lasers. These 2300nm lasers characteristics in the data sheet include wavelength 2.3 microns, single mode operation, an mounting on c-mount heat sink. Lifetime is specified as greater than 3000 hours. All measurements have been done at 20 °C in cw operation. Cavity length is 1 mm with AR Reflectivity of 5 percent, Peak Wavelength 2300nm and operating forward current is 400 mA typical. Operating Forward Voltage is 1 volt typical.
Applications:
- External cavity setups
- High-resolution spectroscopy
- Medical diagnostics
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
| 要問い合わせ | 株式会社ブルーアロー(high-brightness TA, TAL products) | ||
| 要問い合わせ | 株式会社ルクスレイ(DILAS High-Power Products) | ||
