型番：30.070.00004、30.070.00047　メーカー：Artifex Engineering　商品コード：L003781

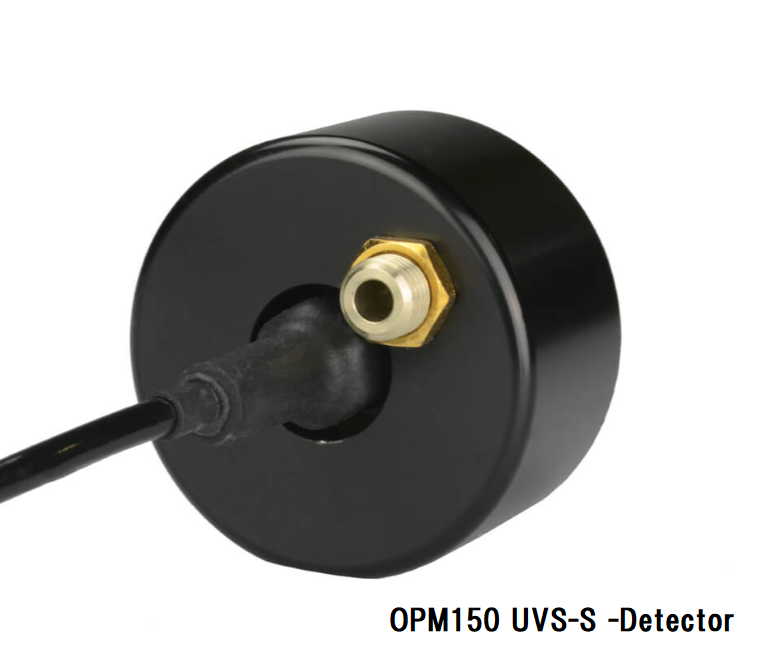

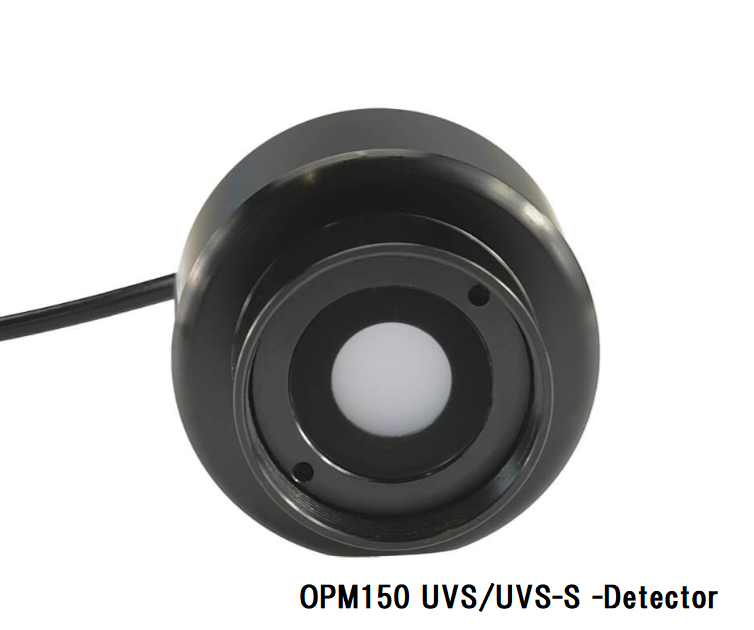

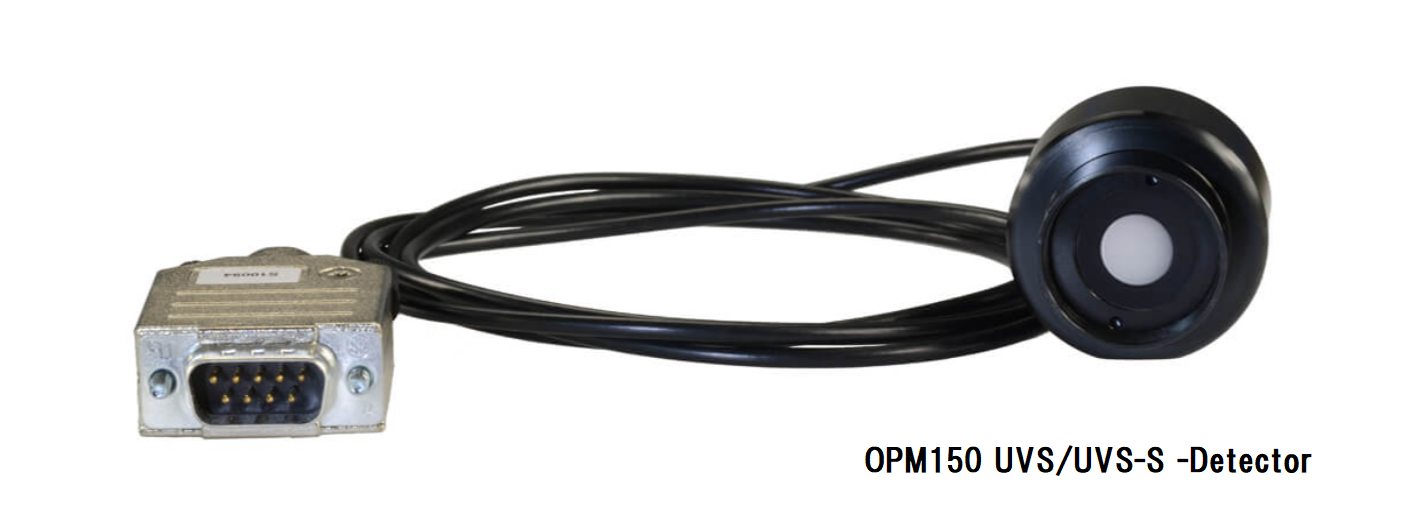

OPM150 UVS/UVS-S -Detector

波長: 250nm-1100nm
出力: 1nW-8mW

・OPM150UVS-Detector (30.070.00004)
・OPM150UVS-S-Detector (30.070.00047)

< Description >
The head mechanics are designed to be compatible with various common optomechanics systems to allow simple integration. Various adapters for tube systems, camera objectives and optical fibres are available to further enhance the ease of integration. When connected to the OPM150 base unit, each head is automatically recognized and its individual calibration data are uploaded to the system. In addition, the user may load up to 5 separate filter curves. Thus the dynamic range and functionality of the unit can be expanded while ensuring proper calibration. These detectors are large area UV-enhanced silicon photodiode detector head, compatible with the OPM150 series of optical power meter.

< Specifications >
Wavelength range: 250-1100nm
Sensitive area: ø9mm
Minimum measureable power: 1nW (at 600nm)
Maximum measureable power: 3mW (at 600nm)
Maximum outer dimensions: ø30mm x 30mm
Type: free beam
Power: up to 8mW

< Accessories >
Calibrated diffuse reflecting attenuators: OD1, OD2
Adapters for tube systems
Adapters for fibre inputs: FC, SMA, LC, ø1.25 ferrule
Aperture reducer: ø7mm (standard iris aperture)
