型番: メーカー:QD Laser 商品コード:L001767

1310nm 10mW QDLaser

波長: 1310nm-1310nm
出力: 10mW-10mW
パッケージ: TO-can
テクノロジー: Quantum Dot Laser

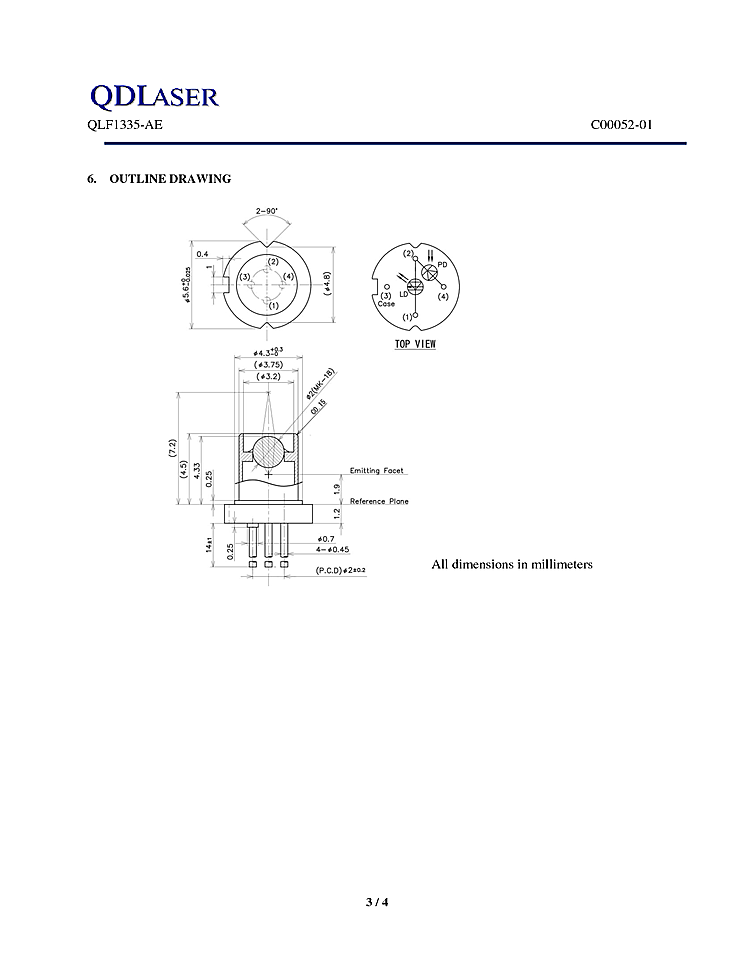

1310nm laser from QDLaser. The QLF1335-AE is 1310nm quantum dot laser diode device for use in extremely high temperature environment. The laser is mounted into a TO-56 header including a monitor PD for optical power control and hermetic sealed with a lens cap. Since quantum dot technologies are equipped with active layers of the device, it realizes excellent temperature characteristics and low power consumptions.

FEATURES:
- 1310nm FP-LD
- Temperature insensitive operation
- 5.6mm TO-CAN package
- Wide temperature operation: -25 to 175 deg.C

APPLICATION:
- High temperature use

価格 地域 代理店
要問い合わせ 京都府 株式会社光響
