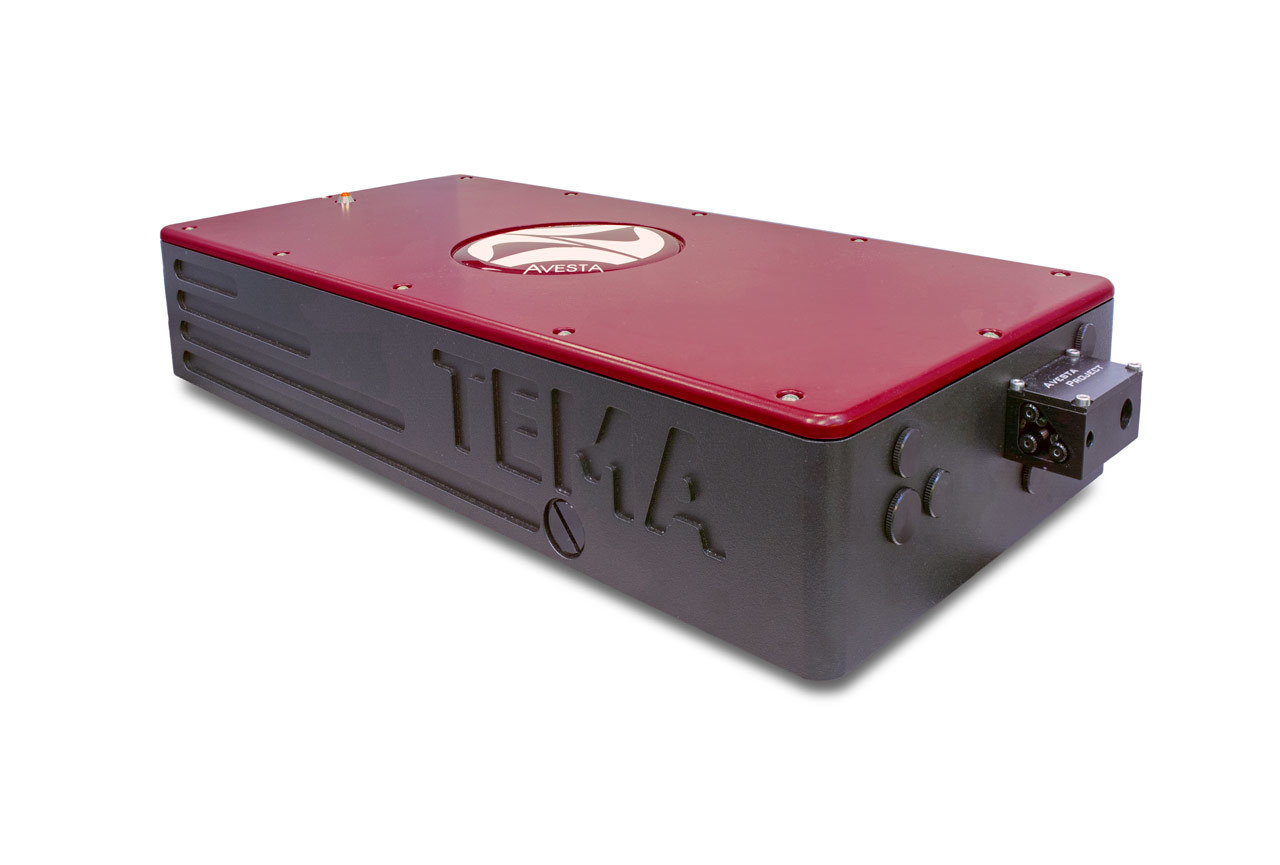

型番:TEMA-70、TEMA-100、TEMA-150、TEMA-150HP メーカー:Avesta Project Ltd. 商品コード:L002725

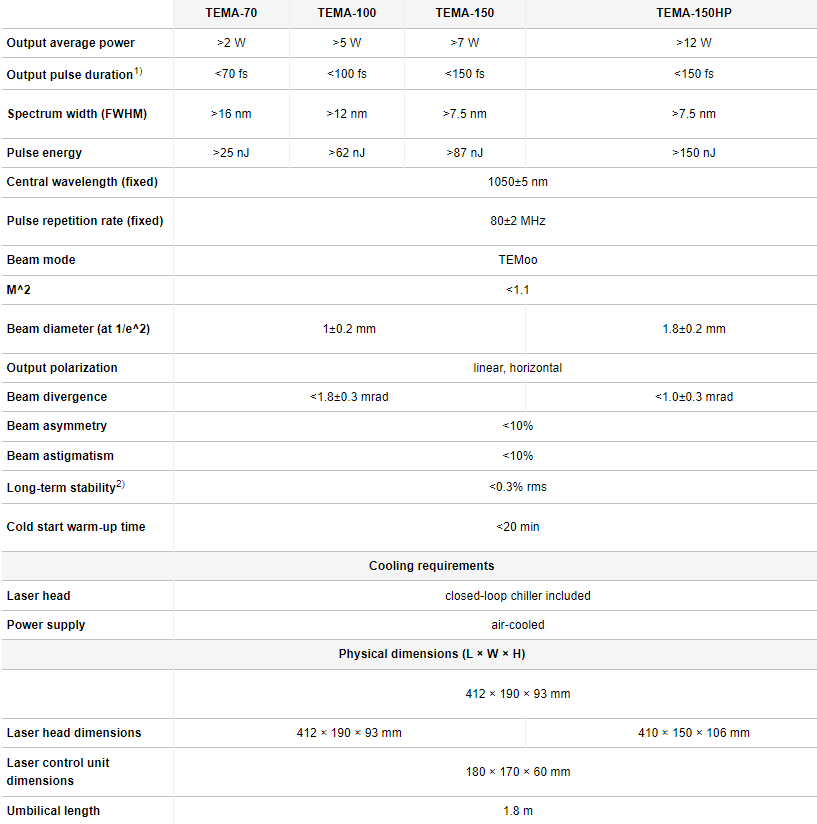

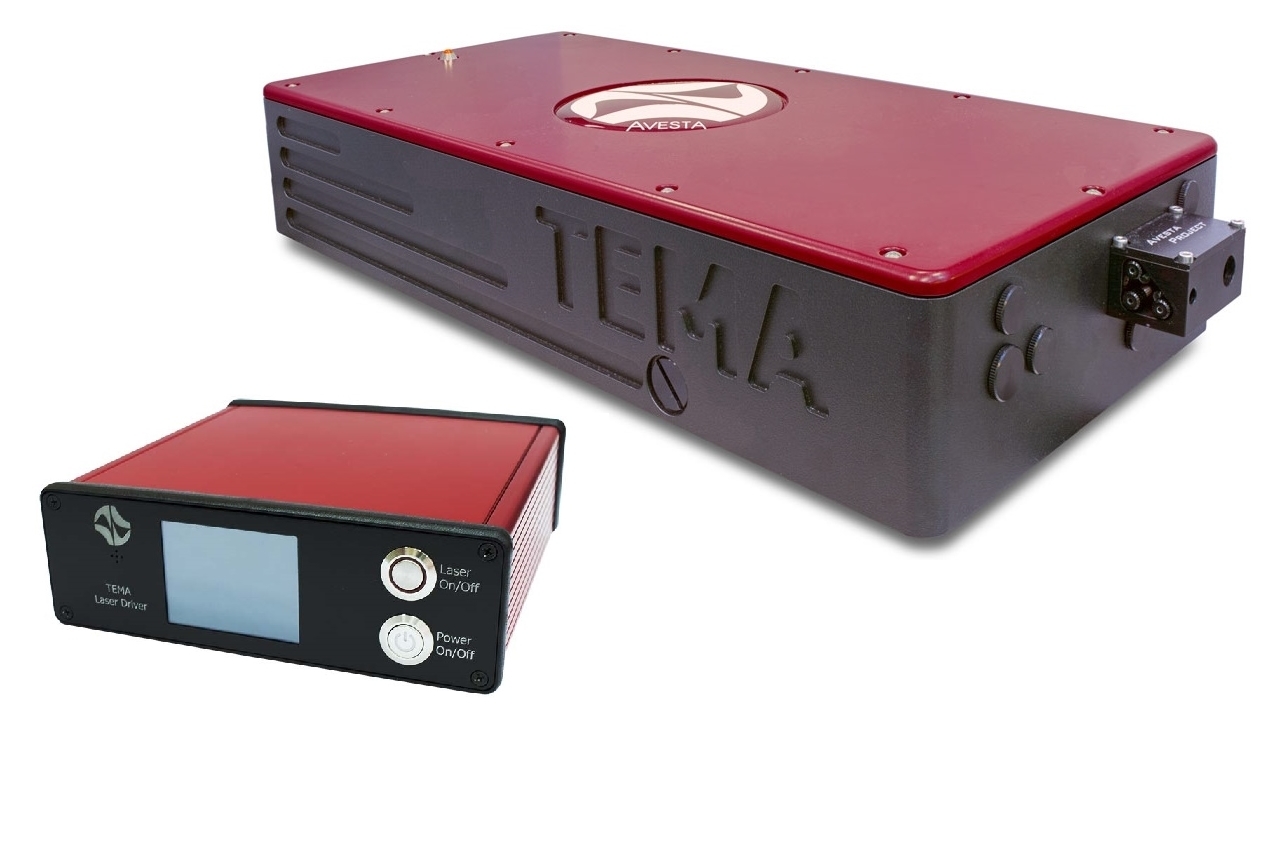

TEMA: Yb-doped Solid-State Femtosecond Oscillator

波長: 1045nm-1055nm
出力: 2W-12W
エネルギー: 25nJ-150nJ

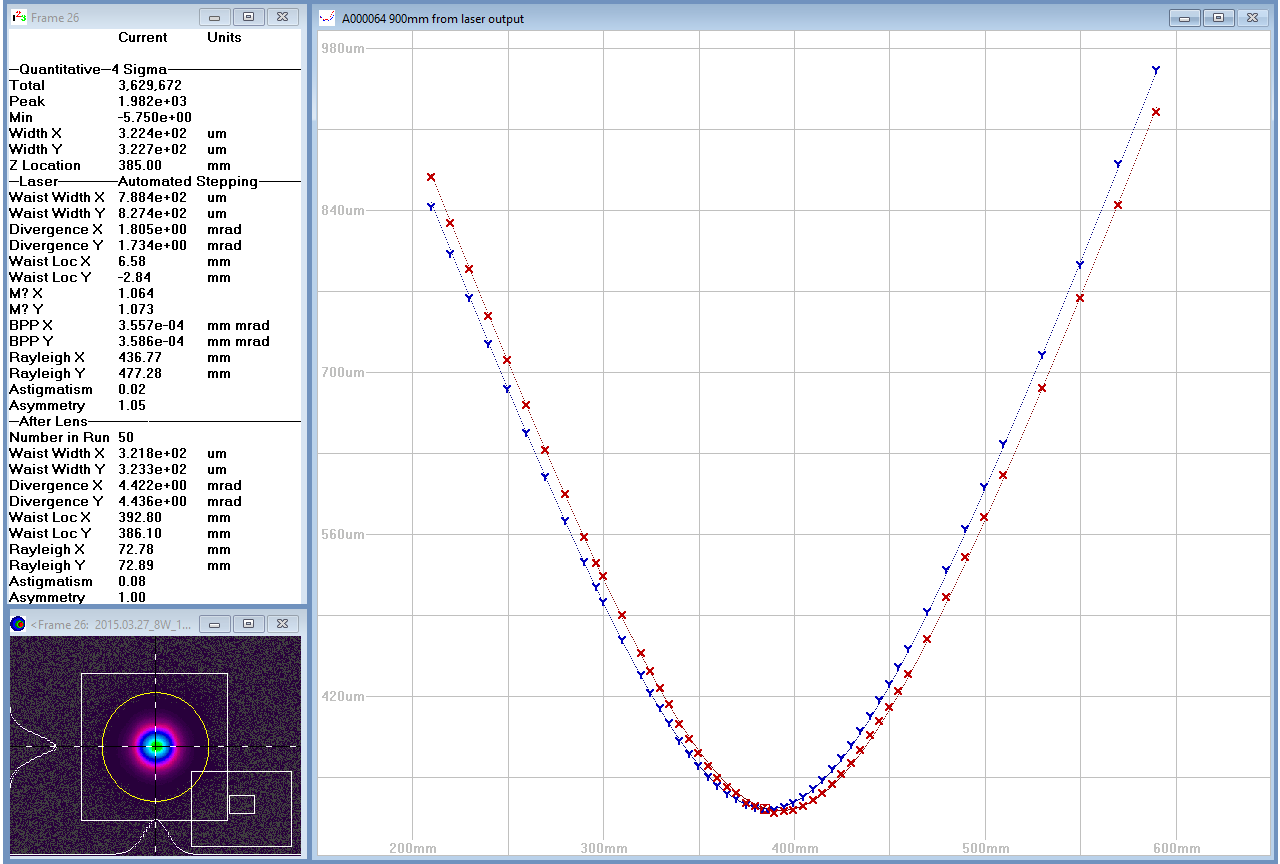

ビーム径: 1±0.2 mm (TEMA-70、TEMA-100、TEMA-150)、1.8±0.2 mm (TEMA-150HP)
拡がり角: <1.8±0.3 mrad (TEMA-70、TEMA-100、TEMA-150)、<1.0±0.3 mrad (TEMA-150HP)

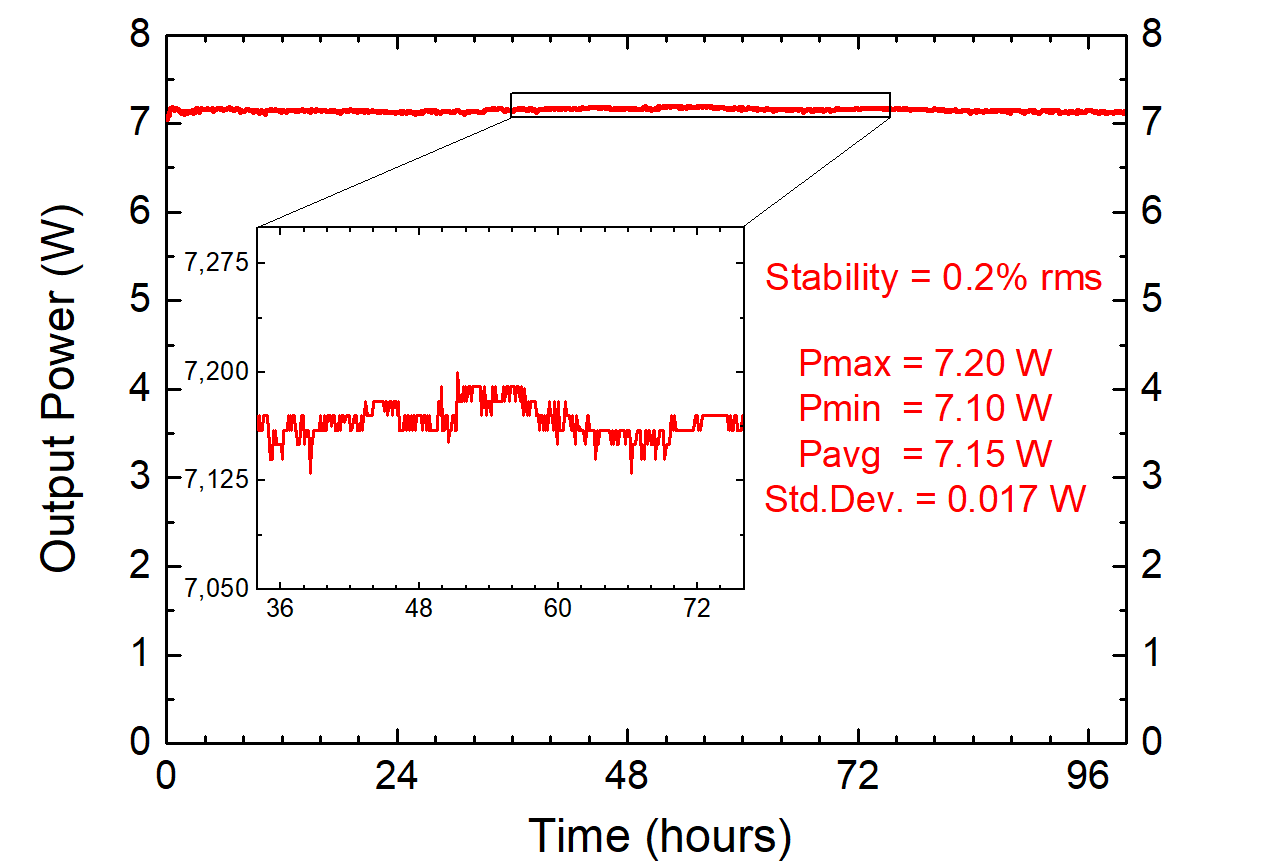

エネルギー安定性: <0.3% rms
冷却方法: air-cooled

【Description】

The TEMA laser based on an Yb-doped crystal radiates at around 1-um wavelength with high average power, enabling the user to enjoy high power ratings at over-micron wavelengths. This design features an integrated pump diode module for greater system stability and turn-key operation. The monolithic thermally stabilized body of the laser ensures maximum rigidity, while self-starting design provides for easy "plug-and-play" operation.

Three basic models differ in pulse duration and output average power:

- the TEMA-70 features the shortest pulse duration of the series with widest spectrum width;

- the TEMA-100 offers a perfect balance between output pulse duration and average optical power;

- the TEMA-150 outputs higher average power and is suitable for power-demanding applications, such as e.g. harmonic wavelength conversion and OPO pumping applications;

- the TEMA-150-HP boasts of the highest power output among the entire TEMA family with up to 12W of average power readily available at its output aperture.

As for wavelength conversion options, the TEMA laser system is also used as a pump source for optical parametric generators (OPOs), that allow generation of ultrafast pulsed radiation from VIS into the IR and MIR regions. See our TOPOL series of OPO systems for more details.

The system might also be equipped with external harmonic generators of the AG series. Also note that a dedicated TEMA-DUO system with a compact built-in SHG module provides high-power fs radiation at 525 nm.

An optional pulse compressor also enables 15-fs pulse width generation with the TEMA system.


【Feature】

High average power up to 12 W at 1050 nm

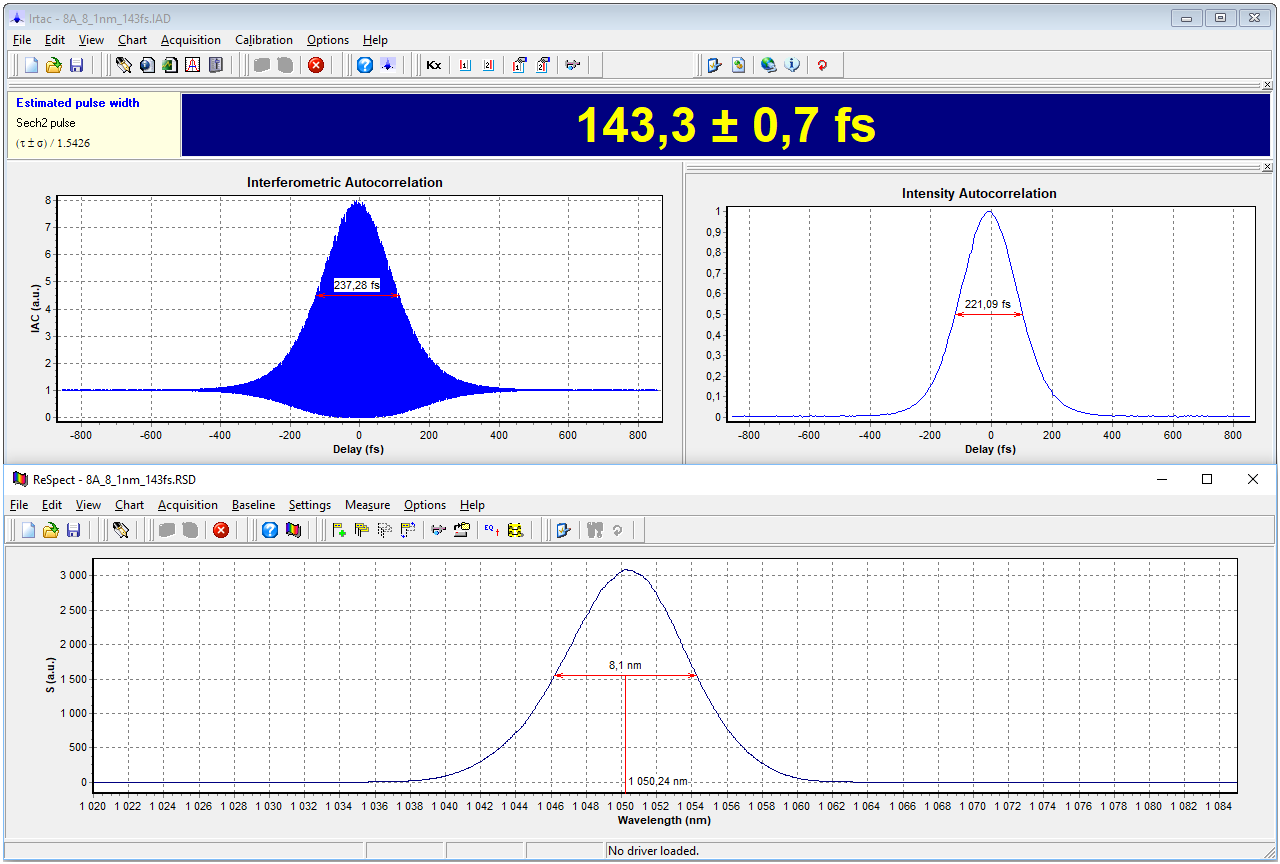

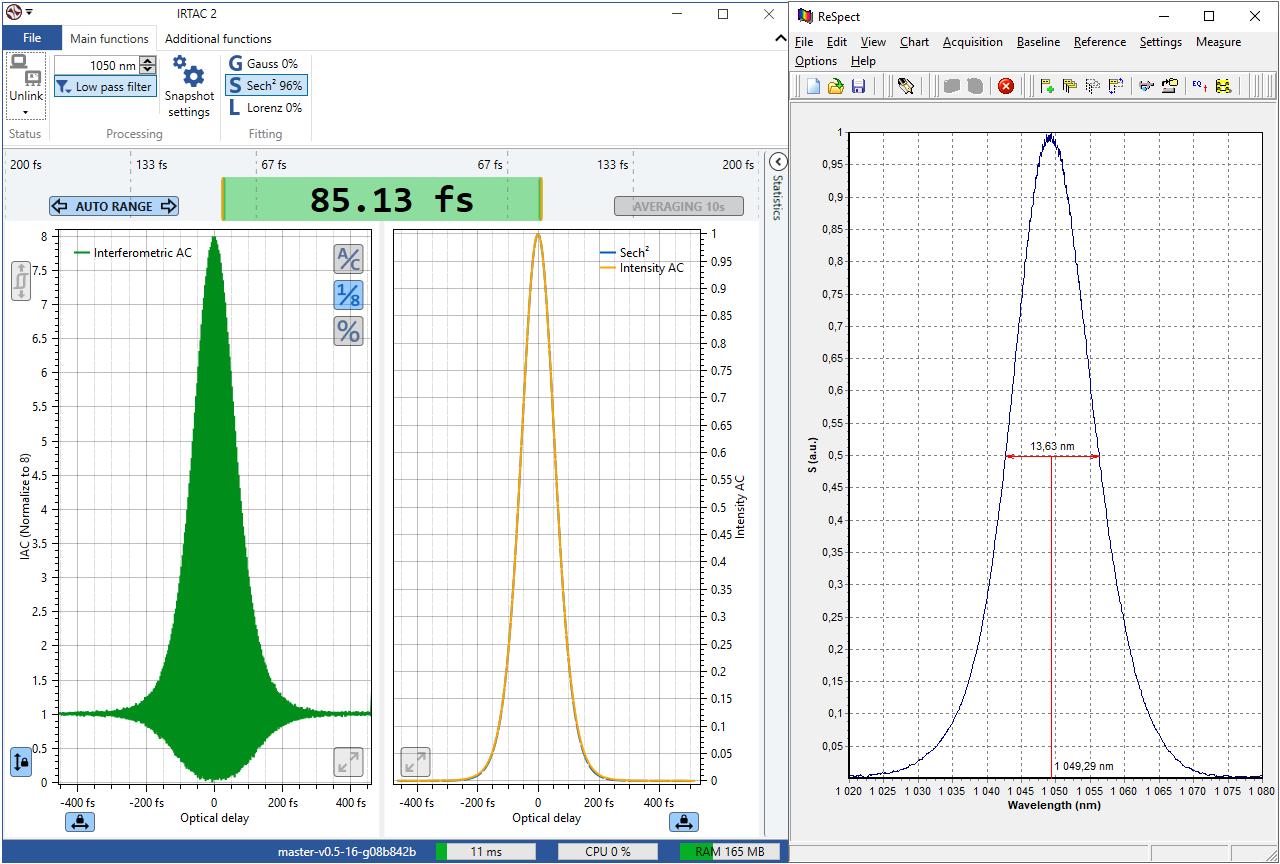

Short pulse duration <70 fs

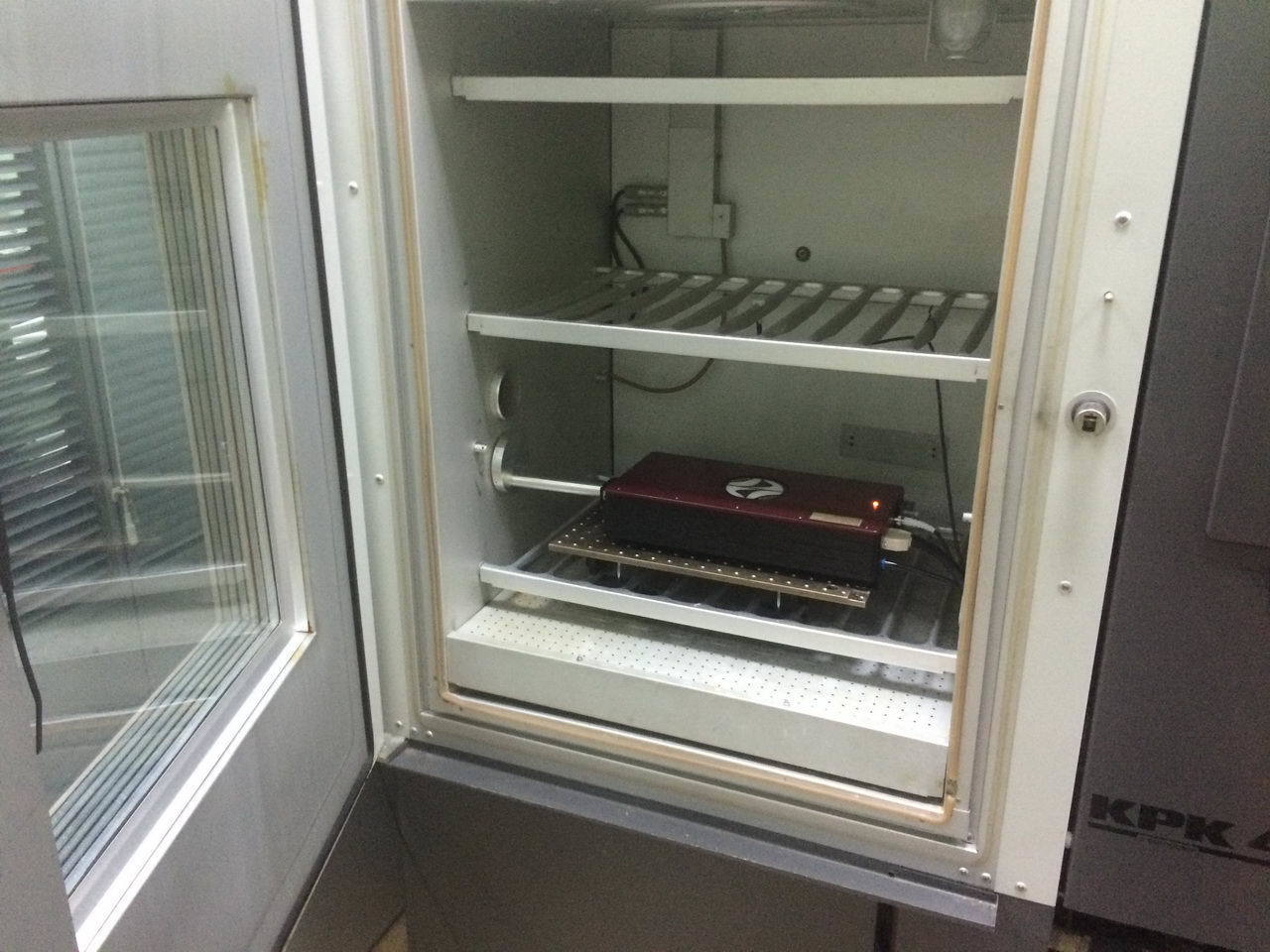

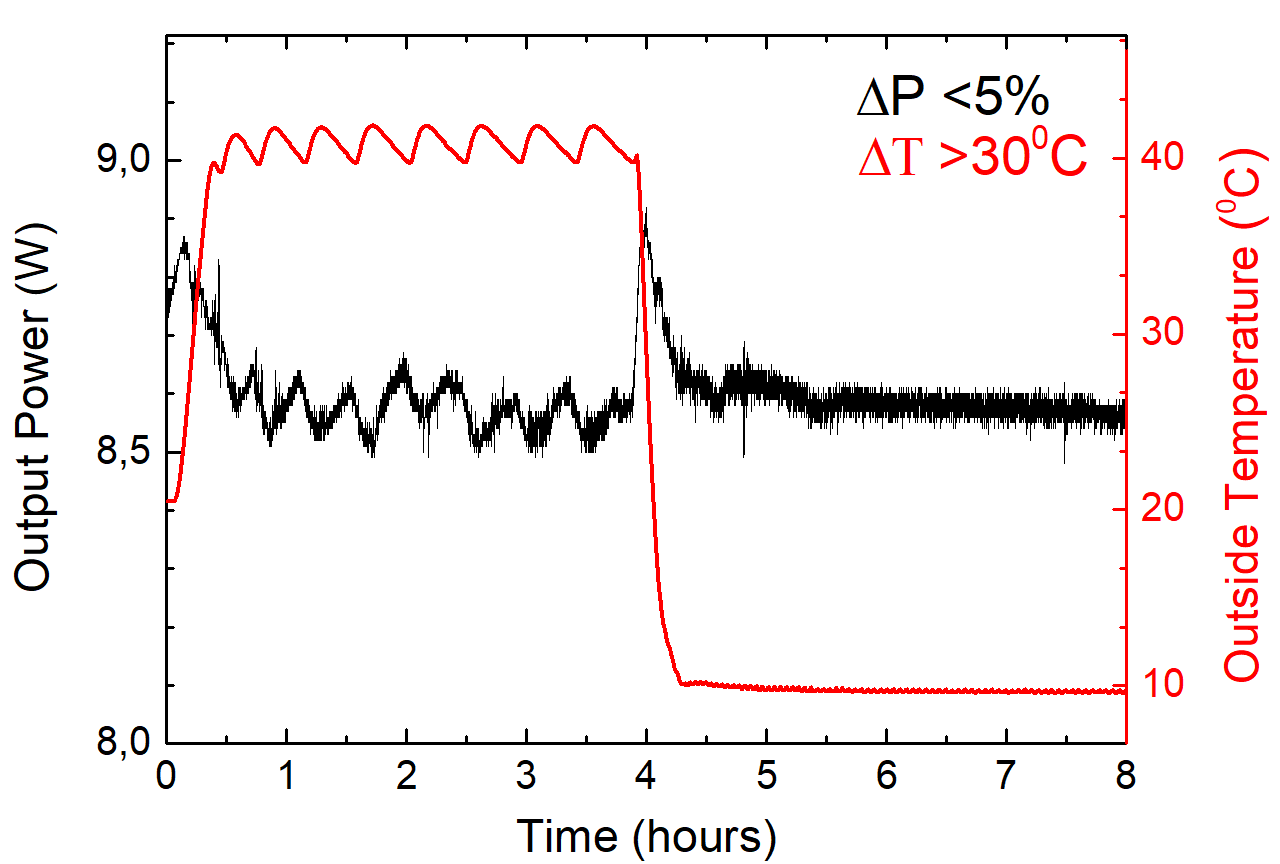

Highly stable (monolithic thermally stabilized body)
Self-starting of mode-locking
Optional OPO extension available for extended wavelength coverage
TEMA-Duo version with a built-in SHG
15-fs pulse compressor option
