型番：　メーカー：Focuslight Technologies Inc.　商品コード：L003777

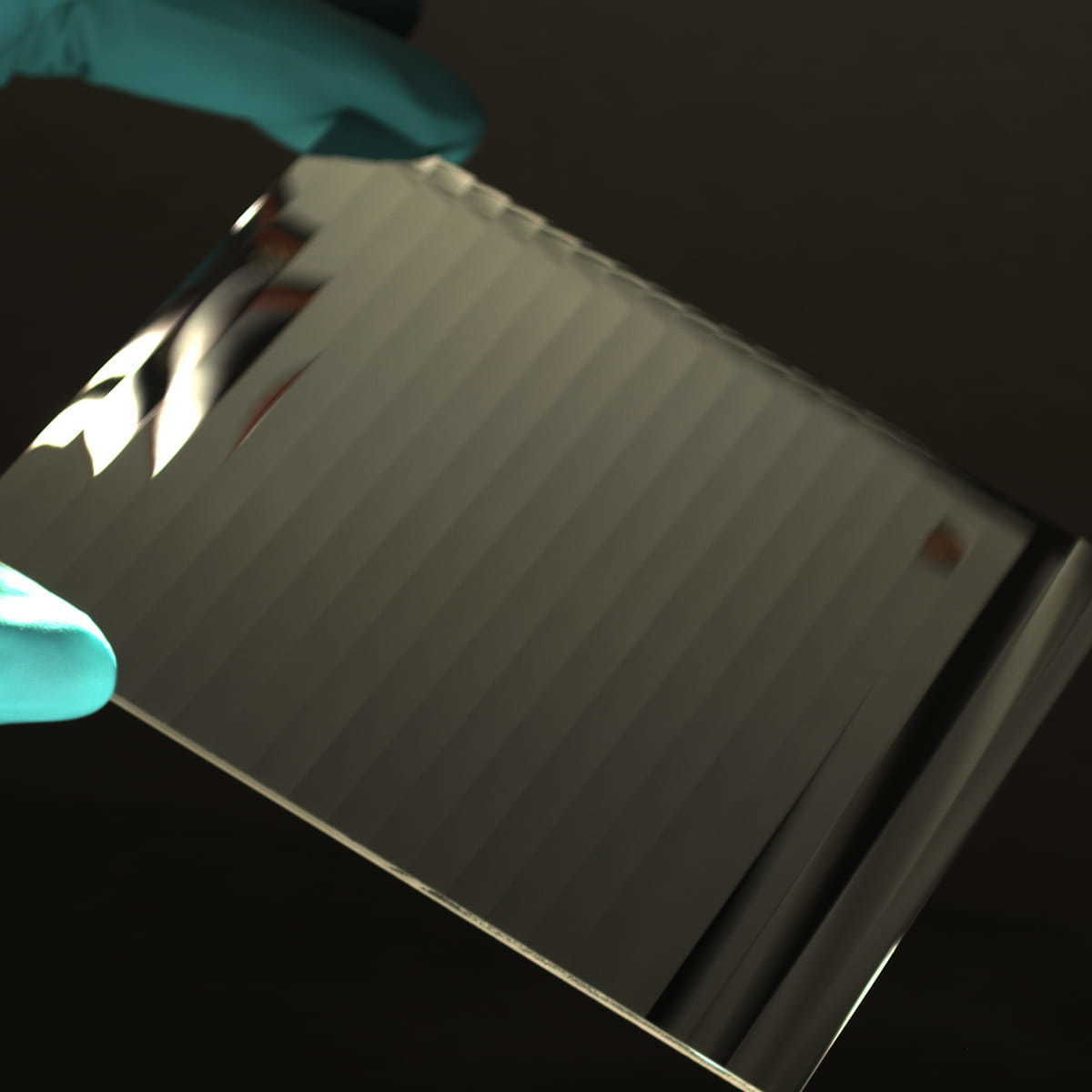

Silicon Optics with Large Sag

コーティング: あり
種類: AR

< Silicon Optics with Large Sag >
・High refractive index (n=3.4), hard material resistance, low temperature sensitivity, and low density (2.329 g/cm³).
・Lens sag value as large as 4 mm (4000 µm) at exit angle of 0° ~ 80°, and maximizes the numerical aperture (NA).

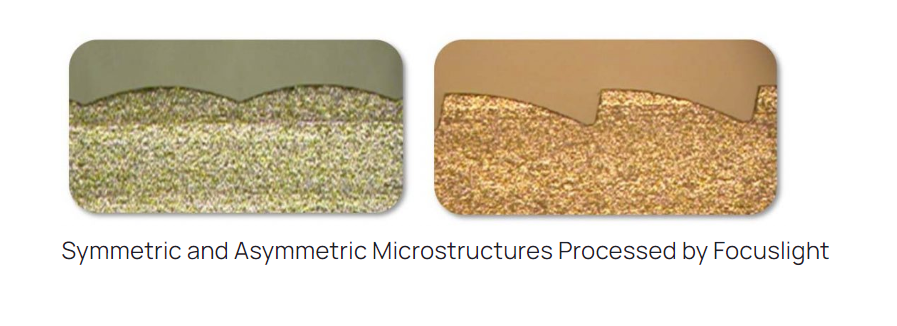

・Deep-sag decentered lenses, blazed gratings, chirped arrays or integrated prisms.

< Key Specifications >
・Optics manufactured with silicon material, fully taking advantage of the intrinsic characteristics of silicon material, such as high refractive index (n=3.4), hard material resistance, low temperature sensitivity, and low density (2.329 g/cm3).
・By Focuslight’s unique wafer-level simultaneous structuring technology, the lens sag can achieve as large as 4mm (4000µm) at an exit angle of 0° ~ 80° on silicon optic, which maximizes the numerical aperture (NA) that a silicon optics could achieve.
・Enabling products that have been hard or impossible to be produced by classical lithographical technologies, such as deep-sag decentered lenses, blazed gratings, chirped arrays or integrated prisms.
・A precise and optimized design of a proper coating recipe for silicon optics and production process of optical coating can ensure good product performance and long-term operational reliability. AR coating available up to R<0.2% and bandwidth up to 1200 nm.
・Scalable and cost-effective production technology suitable for very high quantities, making the product affordable for IoT, biosensing, smart terminals, etc.

見積りBOXへ入れる欲しい物リストに登録

メーカーWebサイトへ

価格	地域	代理店
要問い合わせ		株式会社ハナムラオプティクス
要問い合わせ	京都府	株式会社光響

Silicon Optics with Large Sag
