型番：D2-105-200 / 500 メーカー： 商品コード：L002949

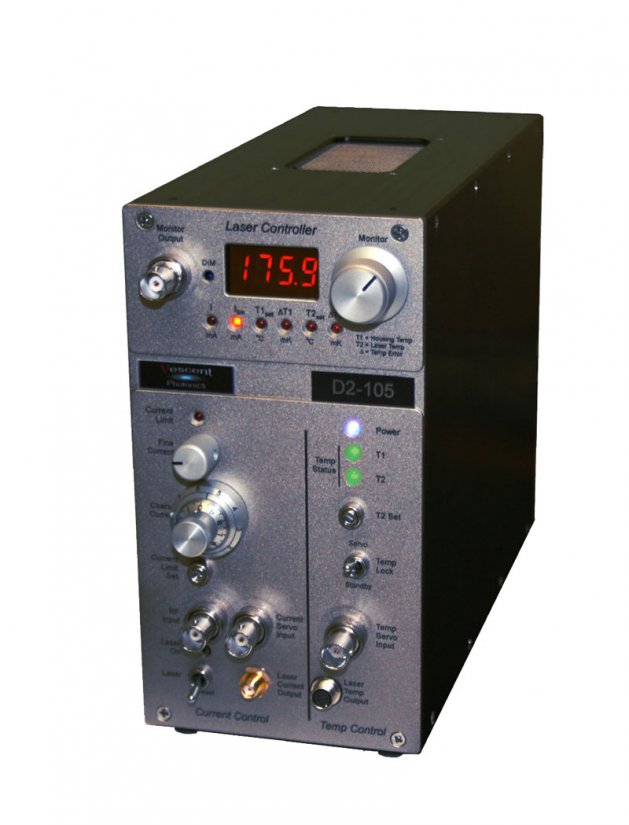

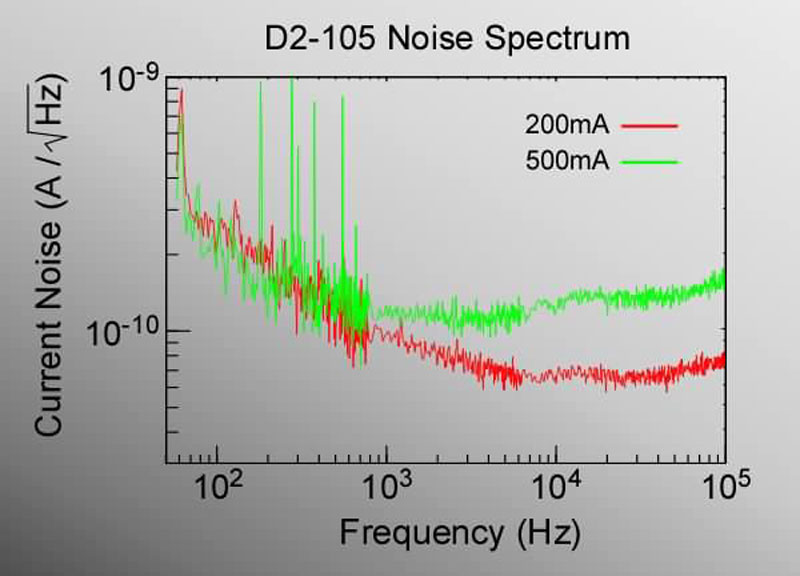

Vescent Photonics Ultra-Low Noise Laser Diode Controller: Noise < 50 nA (rms)
メーカー希望小売価格: Request Price
電流: 500mA-500mA
Product Overview:
The D2-105 is a complete diode laser controller, including low-noise current controller, temperature control, and modulation input. The precision laser current source is based on the Libbrecht-Hall* circuit, well-known to be the lowest-noise design available. Two stages of temperature control provide long-term frequency stability. Front panel BNC ports enable both high-speed (>10 MHz) servo control of the laser frequency and RF modulation directly to the laser current output SMA. Powered with an external power supply (D2-005) or user provided power via a breakout board (D2-001).
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
