型番:CB650-5-3-F-S(22X110) メーカー:Picotronic GmbH 商品コード:L003622
メーカー希望小売価格: €125,97
波長: 650nm-
出力: 5mW-
電流: 6mA-50mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Cross Laser
拡がり角: B - 0.3 mrad

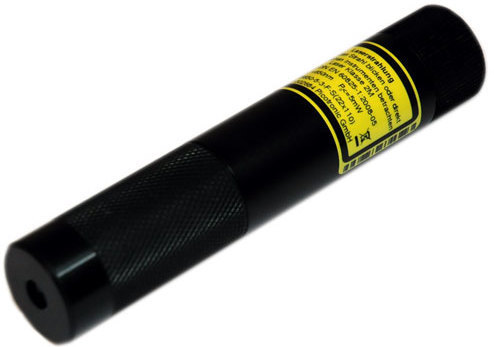

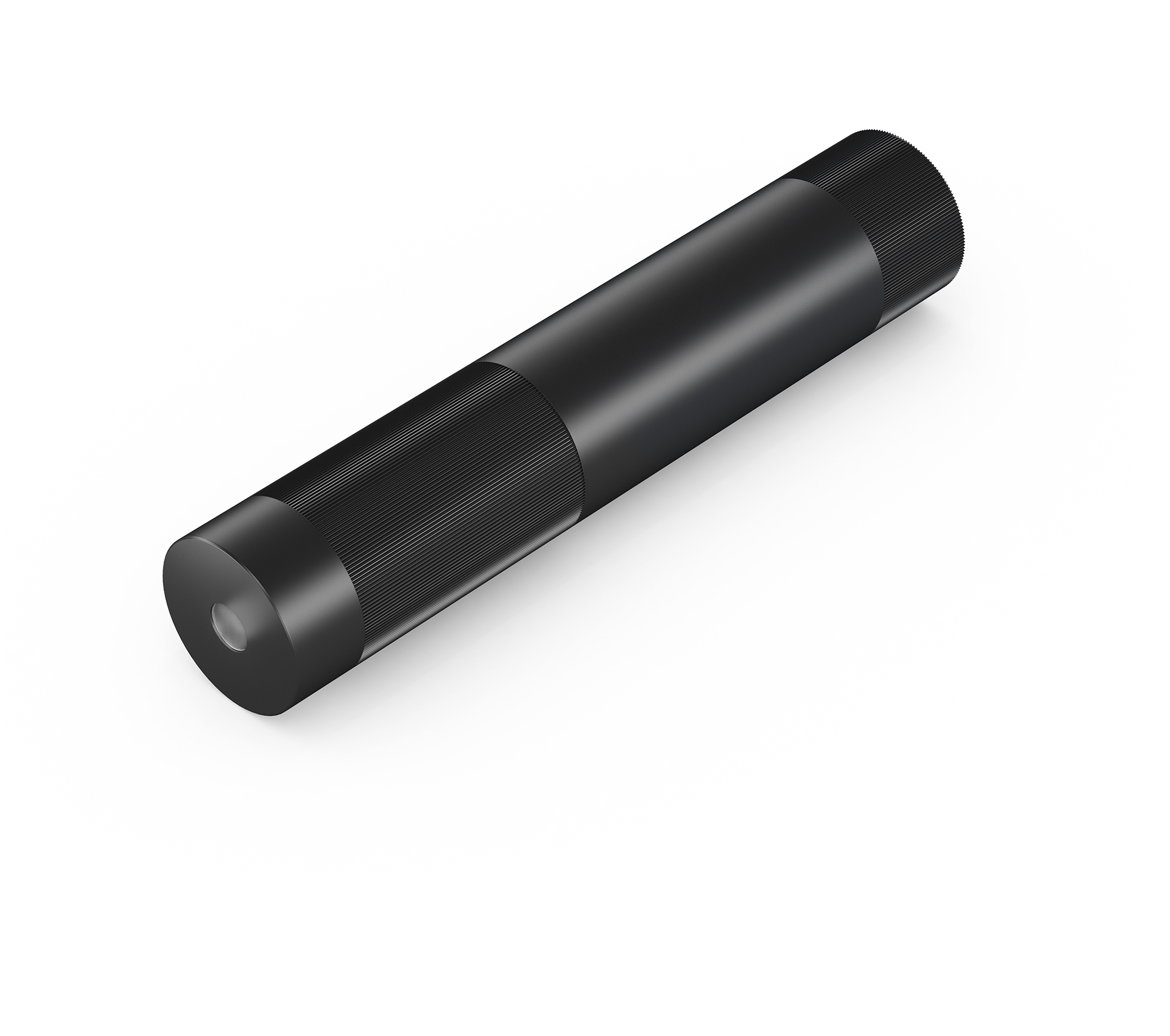

Focusable Cross lasermodule, red, 90°, 650nm, 5mW, 3V DC, 22x110mm, class 1, incl. battery CR123A
• Fan angle 90 °
• Laser Class 1
• With battery
• Low power consumption
• Adjustable focus
< Main Parameters (*) >
Wavelength typ 650 nm
Optical Output Power typ 5 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 6 typ 30 max 50 mA
Operating Temperature min -20 max 50 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 5,000 h
RoHS yes
< Optical Parameters >
Beam Shape Cross
Laser Class 1
Divergence B - 0.3 mrad
Fan Angle 90 °
Operating Distance 2 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Focus fixed adjustable
Verticality < ± 0.5 °
< Electrical Parameters >
Potential of Housing VDD(+)

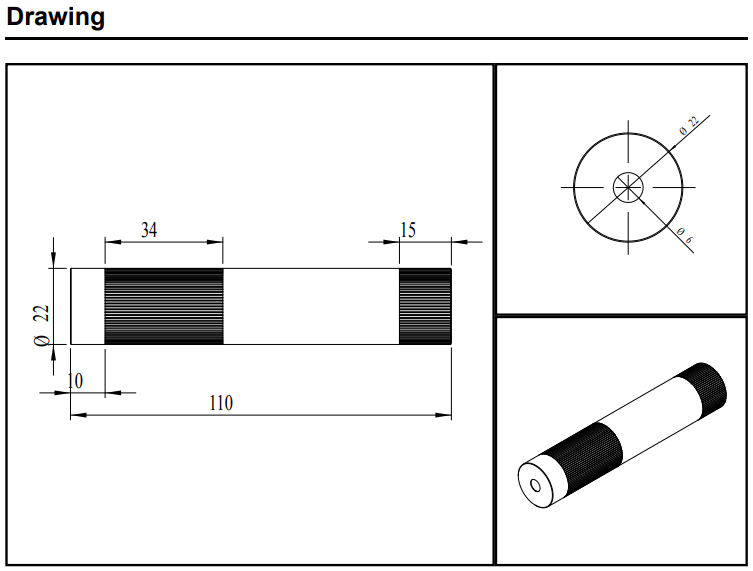

< Mechanical Parameters >
Size Ø22x110 mm
Material aluminium
Output Aperture 6 mm
Housing Color black
Weight 88 g
(*) Over the complete operating temperature range
