型番：ADL-66505TM　メーカー：Arima Lasers Corporation　商品コード：L003708

660nm / 50mW　AlGaInP APC Visible Laser Diode

660nm / 50mW　AlGaInP APC Visible Laser Diode
660nm / 50mW　AlGaInP APC Visible Laser Diode
660nm / 50mW　AlGaInP APC Visible Laser Diode
660nm / 50mW　AlGaInP APC Visible Laser Diode
660nm / 50mW　AlGaInP APC Visible Laser Diode
660nm / 50mW　AlGaInP APC Visible Laser Diode

ADL-66505TM データシート.pdf

波長: 653nm-667nm
出力: -50mW
電流: 93mA-120mA
電圧: 3.0V-6.0V

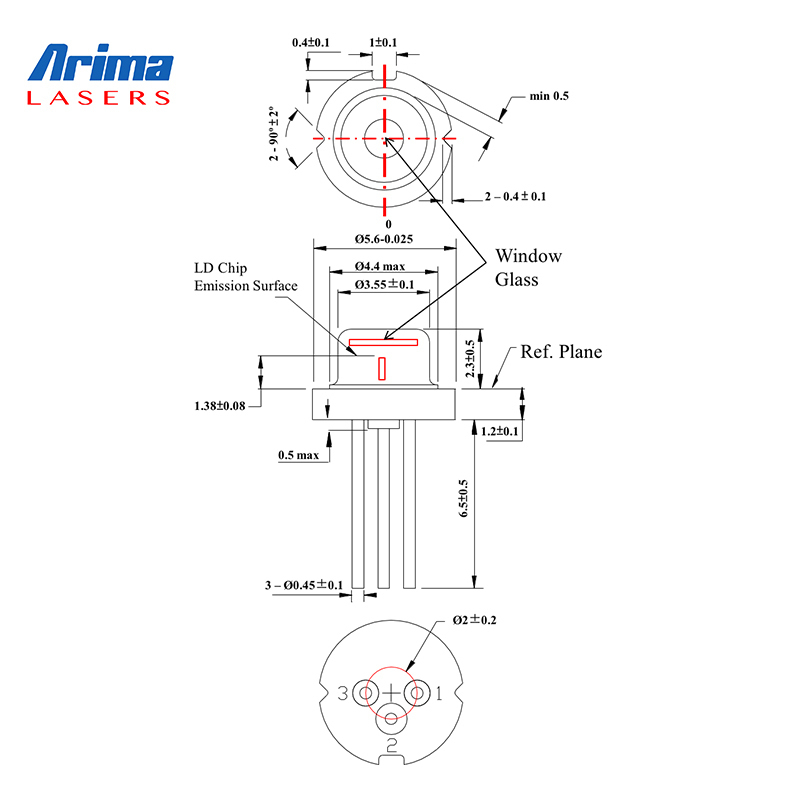

パッケージ: TO-can

< FEATURES >
660nm 50mW 60°C high reliable operation
Saving space and cost of laser module

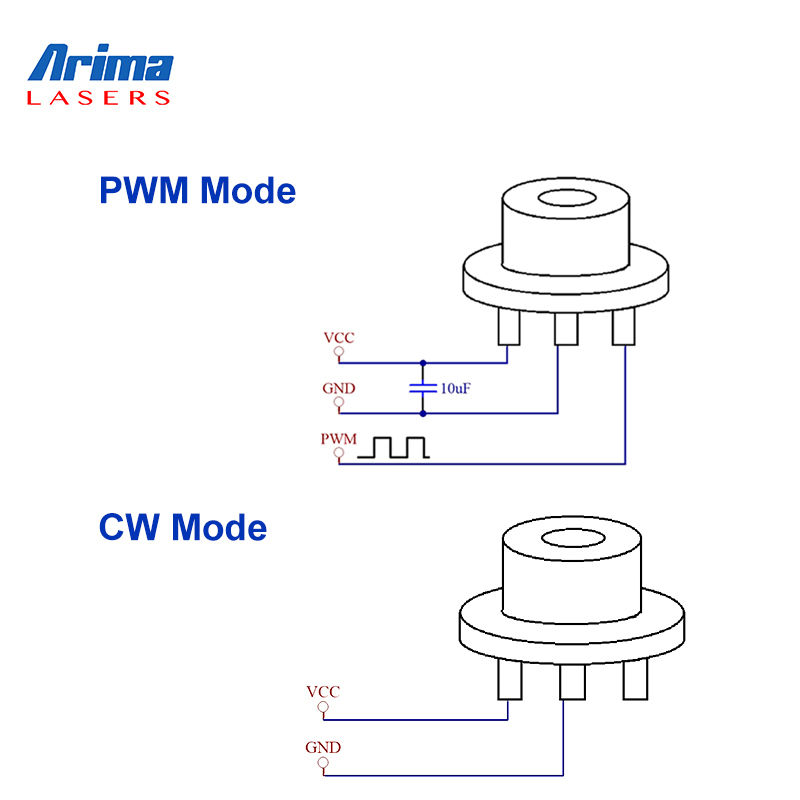

Voltage driven LD, easy to use
Highly stable laser output power
Strong reverse bias protection
High ESD sustainability voltage
High speed short protection
Power source reverse protection

< APPLICATION >
Laser measurement tool / laser level measuring instrument / laser distance meter
Lighting/laser pointer
Optical fiber communication system
Laser printer
Sensor/ PM 2.5 detector
Beauty equipment and medical equipment / Laser hair cap / Laser hair comb
