型番：AP-CW1-MOD　メーカー：AdValue Photonics　商品コード：L003218

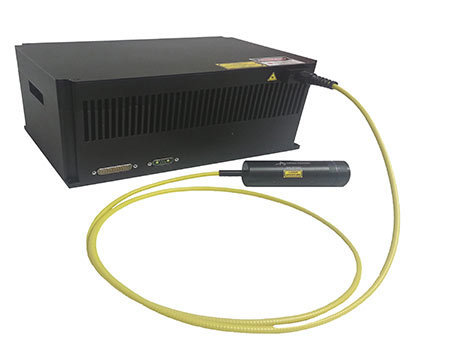

1950nm / 10W　2 Micron High Power CW Fiber Laser Module

波長: 1950nm-1950nm
出力: -10W
電流: 13A-13A
電圧: 24V-24V
テクノロジー: High Power CW Fiber Laser Module

< Optical Characteristics >
Operating mode: CW or modulated
Operating wavelength: 1950 nm (option: 1900-2100 nm)
Wavelength accuracy: ±5 nm nominal
Max. output power: 10 W (higher or lower power available)
Power adjustment: 10-100% max.
Spectral linewidth: < 1 nm
Beam quality, M2: < 1.1
Output polarization: Random (Option: linear polarization)
Output modulation: Up to 1 kHz max.
Output isolator: Option available
Aiming beam: Option available
Output delivery: Fiber collimator or SMA connector
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Modulation control signal: TTL
Operating temperature: 10-30℃
Storage temperature: -10 to +70℃
Warm-up time: 10 minutes

< Features >
・Customizable operating wavelength
・Adjustable output power
・Output modulation capability
・Near diffraction limited beam quality
・Turn-key control unit available

< Applications >
・Plastic materials processing
・Laser surgery
・Aesthetic medicine
