型番：VPSL-0670-010-X-5-A/B/E　メーカー：Blue Sky Research　商品コード：L003351

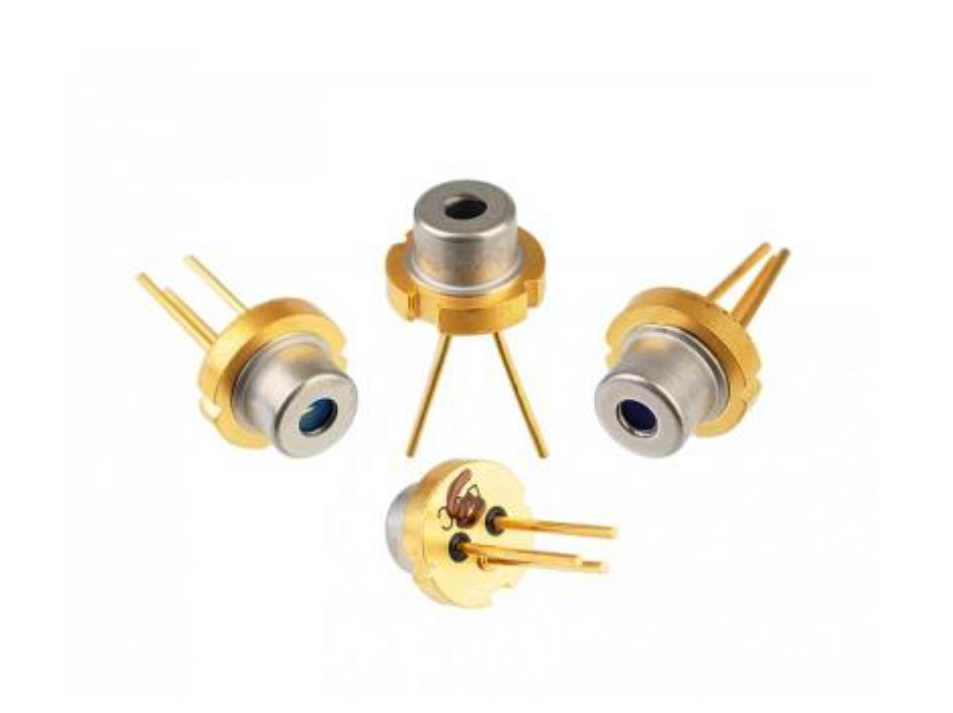

670nm / 10mW　VPS Laser Diode [TO-can]

波長: 660nm-680nm
出力: 10mW-12mW
電流: 40mA-80mA
電圧: 2.3V-2.6V
パッケージ: TO-can
形状: 円
拡がり角: 7, 9, 11 deg

< Description >

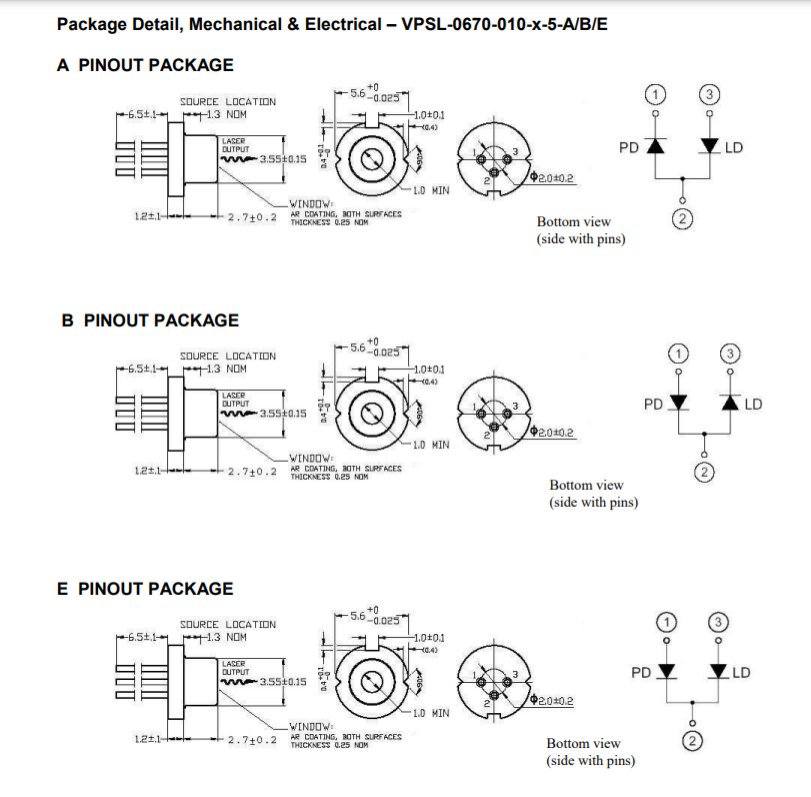

The VPSL-0670-010-X-5-A/B/E is a 0.67 µm band, InGaAlP, circularized, laser diode with a multiquantum well (MQW) structure. It is suitable as a light source for imaging, projection, large capacity optical disc memories, such as DVD-RAM, and various other types of optical equipment. Combined with an integrated, internal, beam correcting optic and encased in a hermetic sealed package, this is a highperformance, highly reliable, and long life laser diode available in 3 different pinouts (A, B or E).

< Features >
Circular, diverging beam, NA approximately 0.11
Diffraction limited wavefront
10mW CW optical power
Standard 5.6 mm form factor
