型番：808nm fiber coupled laser diodes　メーカー：AeroDIODE　商品コード：L003557

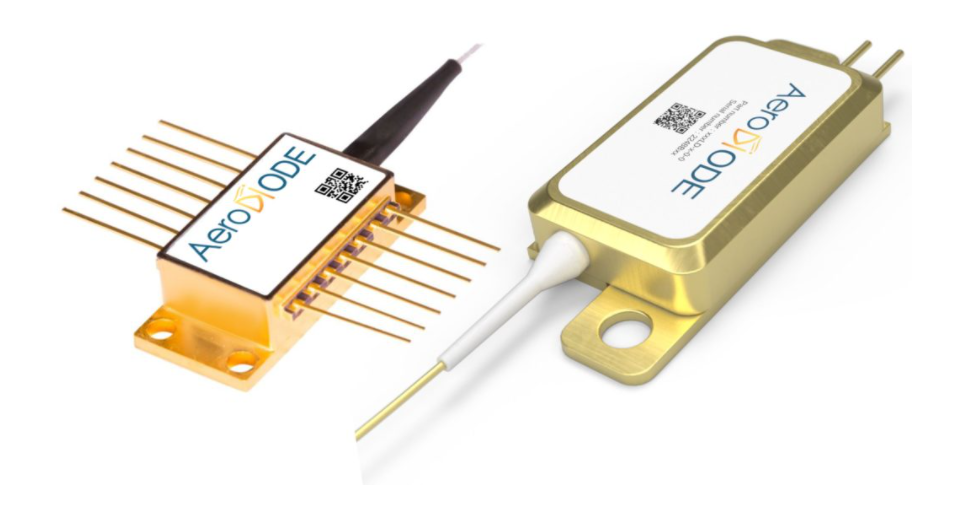

808nm Fiber Coupled Laser Diodes

808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes
808nm Fiber Coupled Laser Diodes

808nm laser diodes データシート.pdf

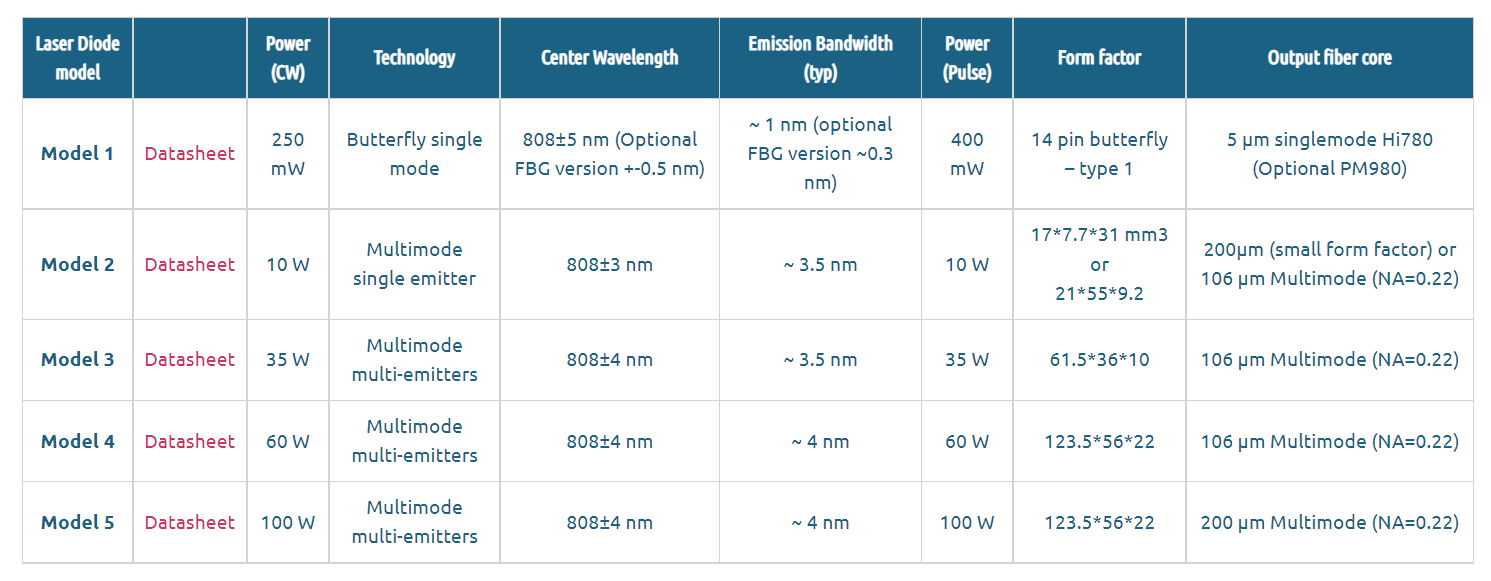

波長: 803nm-813nm
出力: 250mW-100W
電流: 390mA-10.0A
電圧: 2.0V-27.0V
パッケージ: Butterfly package
テクノロジー: Single-element multimode、Multiple-emitters Multimode

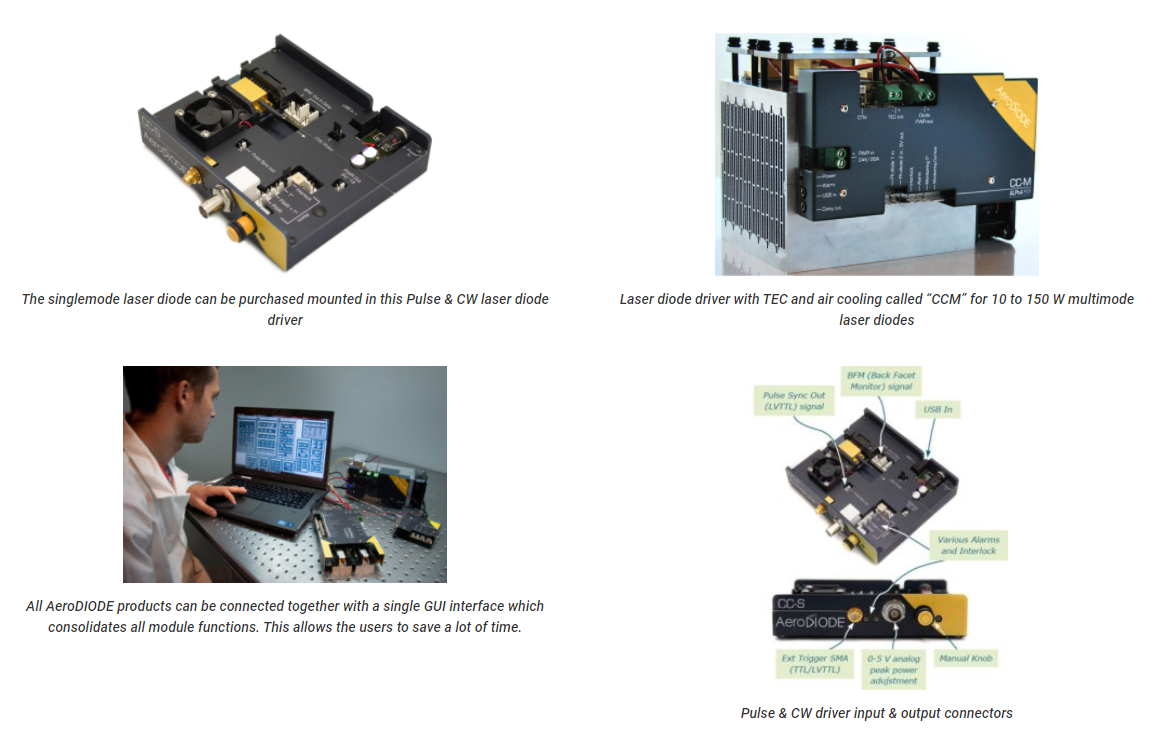

These fiber-coupled 808 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW and pulsed drivers with air cooling for the multimode laser diode versions.

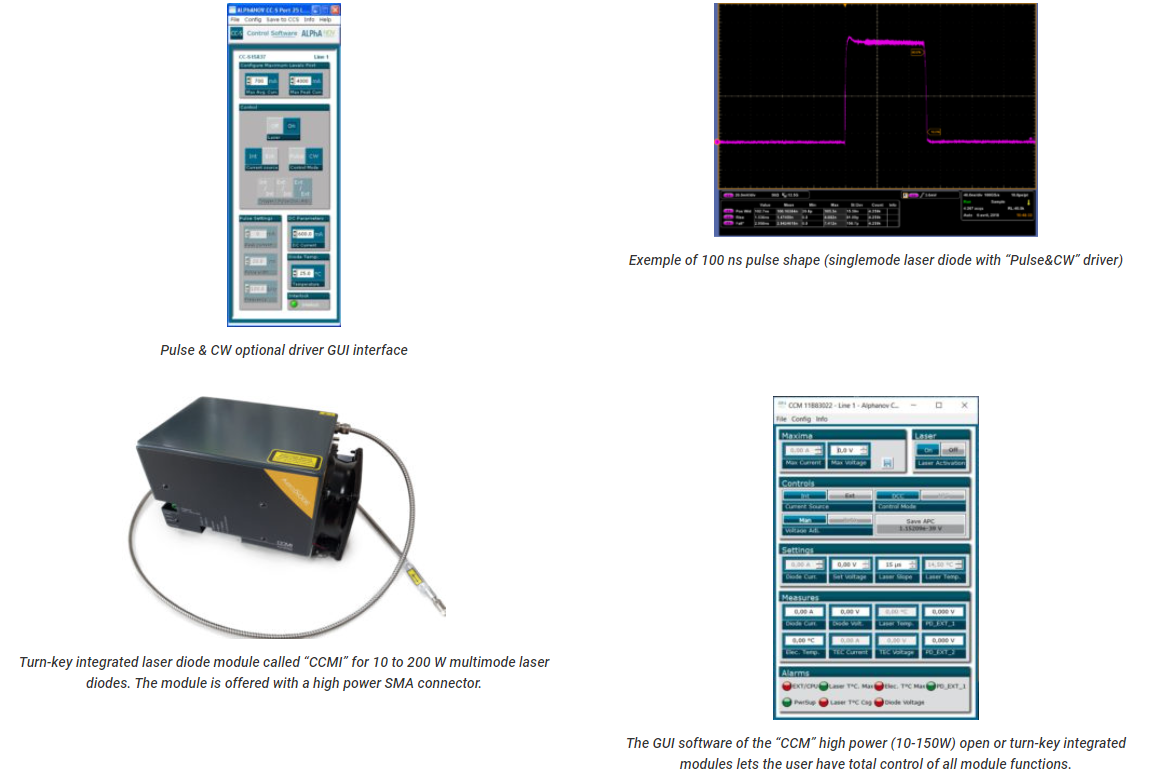

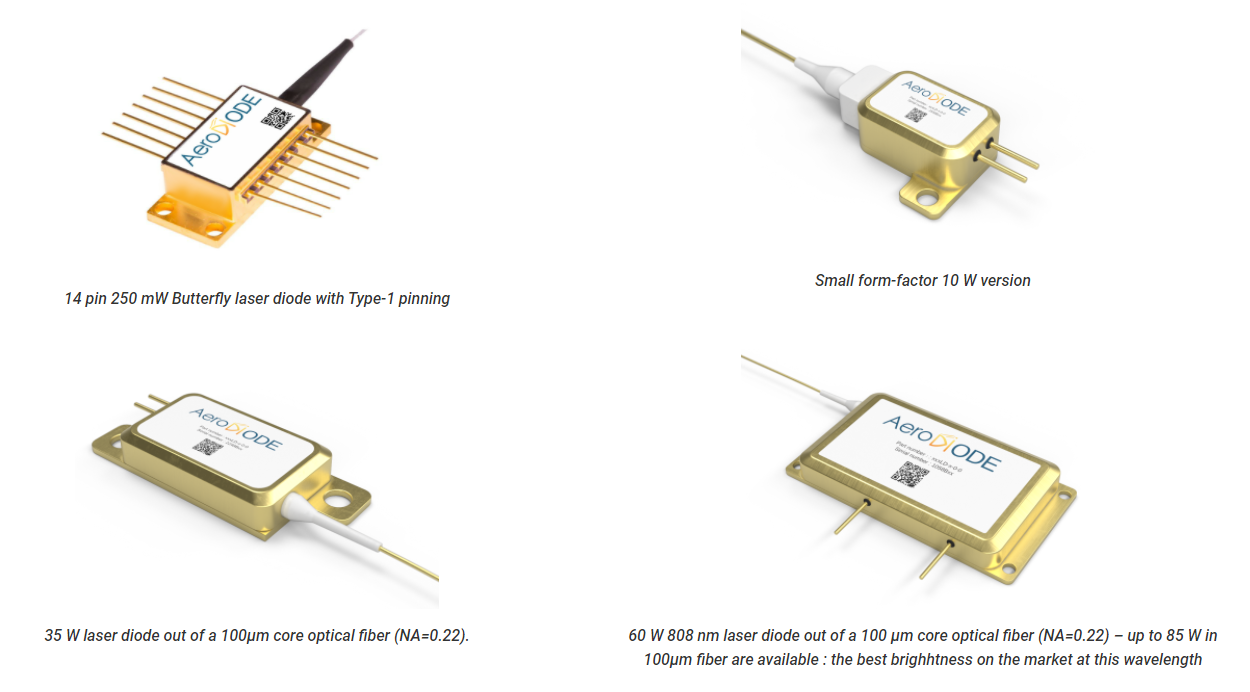

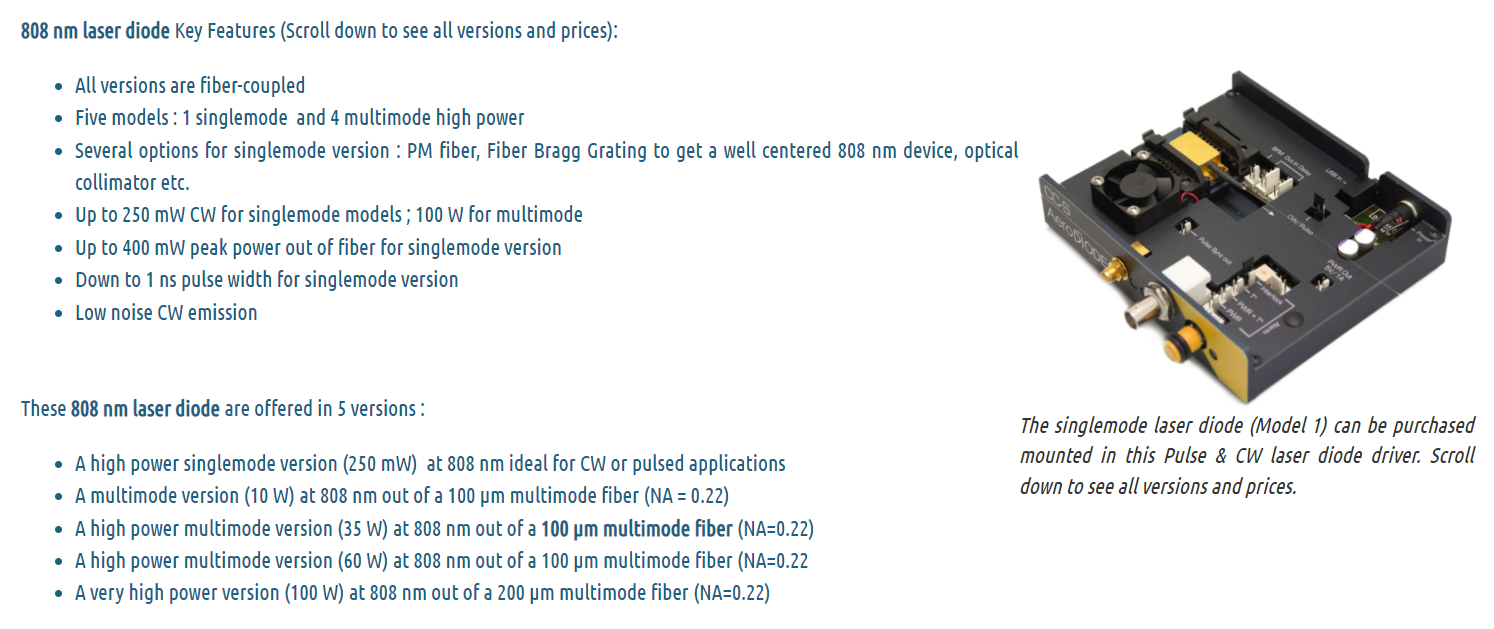

The single mode 808 nm laser diode can reach high power in nanosecond pulse regime up to 400 mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 808 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. 4 multimode versions are offered for CW or pulsed emission up to 60 W in 100 µm core or 100 W in a 200 µm core multimode fiber.
