型番：VPSL-0670-005-x-5-B メーカー：Blue Sky Research 商品コード：L003350

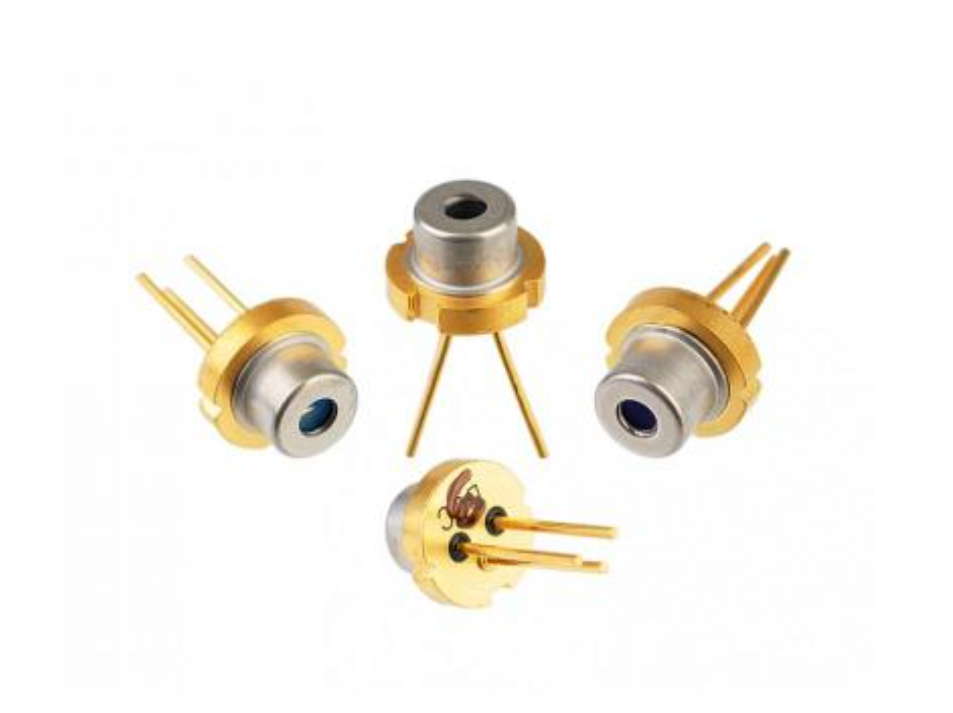

670nm / 5mW VPS Laser Diode [TO-can]
波長: 660nm-680nm
出力: 5mW-7mW
電流: 30mA-45mA
電圧: 2.3V-2.6V
パッケージ: TO-can
形状: 円
拡がり角: 7, 9, 11 deg
< Description >
The VPSL-0670-005-x-5-B is a 670nm InGaAlP Index-guided laser diode with an integrated beam correcting optic inside the standard package. It is suitable as light sources for barcode readers, levelers, laser printers, and various other types of optical equipment. Hermetic sealing of the package assures high reliability.
< Features >
Visible light output.
Built-in monitor photodiode.
Circular, diverging beam, NA approximately 0.12
Diffraction limited wavefront, aberration equal or better than λ/4 peak to valley
5mW CW optical power
Standard 5.6mm form factor
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
