型番：ALC-1680-00700-T9　メーカー：Akela Laser Corporation　商品コード：L003272

1680±10nm / 0.7W　High power Diode Laser: TO-can

1680±10nm / 0.7W　High power Diode Laser: TO-can
1680±10nm / 0.7W　High power Diode Laser: TO-can
1680±10nm / 0.7W　High power Diode Laser: TO-can
1680±10nm / 0.7W　High power Diode Laser: TO-can
1680±10nm / 0.7W　High power Diode Laser: TO-can
1680±10nm / 0.7W　High power Diode Laser: TO-can

波長: 1670nm-1690nm
出力: 0.7W-
電流: 2.6A-2.6A
電圧: -1.4V
パッケージ: TO-can

(Features)

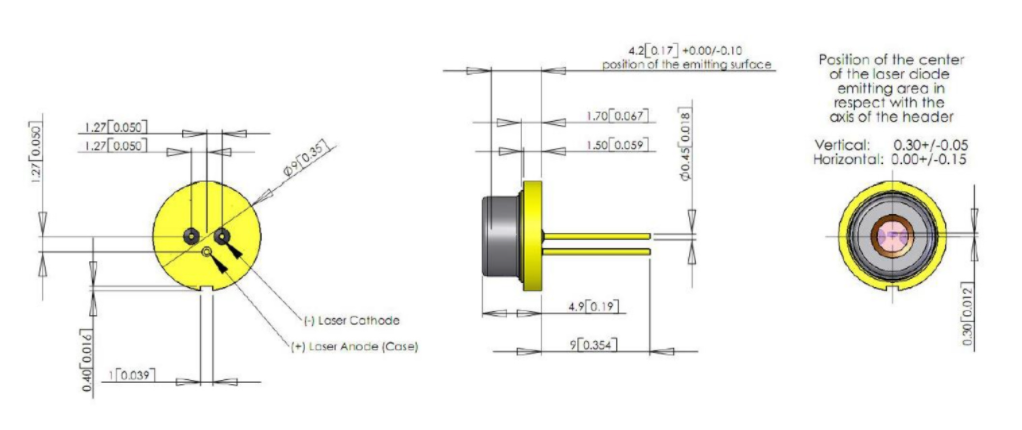

The 9 mm laser TO-can package is a widely accepted industry standard well-suited for low power laser applications. However, the maximum output power is typically limited be the poor heat dissipation properties of the 9 mm package itself. Please contact us to discuss the best package option for your application.

(Applications)
Medical
Material Processing

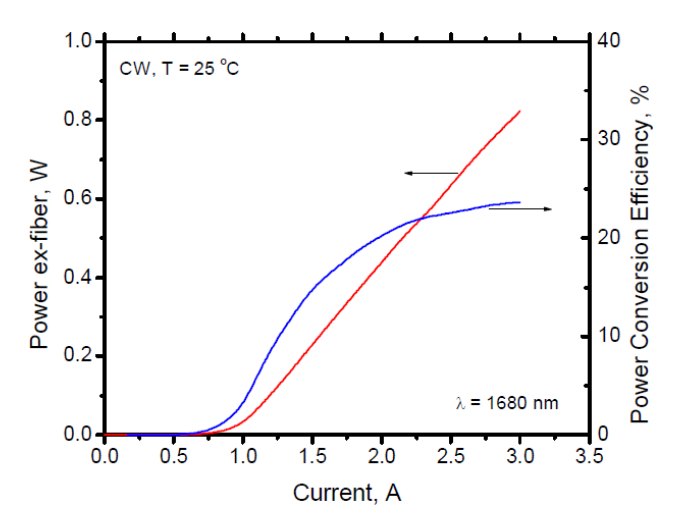

(Specifications)
Wavelength Tolerance　±10 nm
Spectral Width (FWHM)　<10 nm
Wavelength Temp. Coefficient　0.5 nm/°C
Output Power　>700 mW
Operating Voltage　<1.4 V
Threshold Current　0.9 A
Emitter Width　100 µm
Beam Divergence (Fast axis)　35 degrees
Beam Divergence (Slow axis)　9 degrees

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ サンインスツルメント株式会社
