型番：ALC-1470-01000-T9　メーカー：Akela Laser Corporation　商品コード：L003264

1470±10nm / 1W　High power Diode Laser: TO-can

1470±10nm / 1W　High power Diode Laser: TO-can
1470±10nm / 1W　High power Diode Laser: TO-can
1470±10nm / 1W　High power Diode Laser: TO-can
1470±10nm / 1W　High power Diode Laser: TO-can
1470±10nm / 1W　High power Diode Laser: TO-can
1470±10nm / 1W　High power Diode Laser: TO-can

波長: 1460nm-1480nm
出力: 1W-1W
電流: 2.75A-2.75A
電圧: -1.5v
パッケージ: TO-can

(Features)

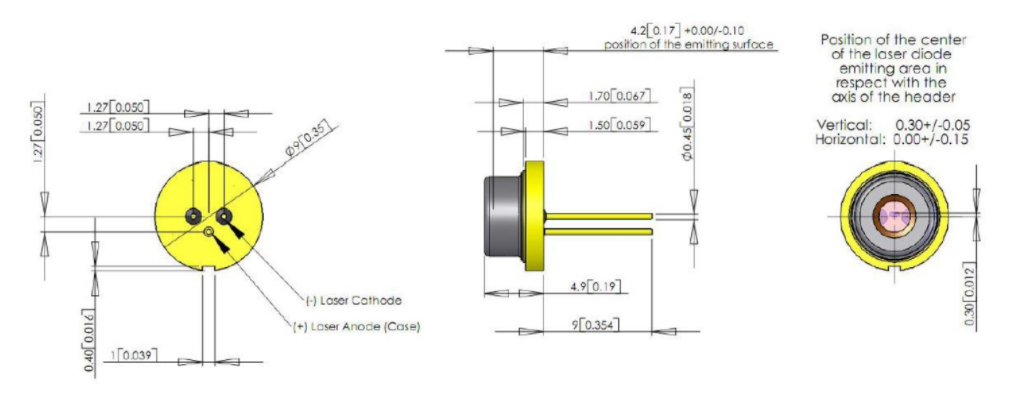

The 9 mm laser TO-can package is a widely accepted industry standard well-suited for low power laser applications. However, the maximum output power is typically limited be the poor heat dissipation properties of the 9 mm package itself. Please contact us to discuss the best package option for your application.

(Applications)
Medical
Material Processing

(Specifications)
Wavelength Tolerance　±10 nm
Spectral Width (FWHM)　8 nm
Wavelength Temp. Coefficient　0.5 nm/°C
Output Power　>1.0 W
Operating Voltage　<1.5 V
Threshold Current　1.0 A
Emitter Width　100 µm
Beam Divergence (Fast axis)　32 degrees
Beam Divergence (Slow axis)　8 degrees
