型番：　メーカー：nLIGHT,INC.　商品コード：L002787

Fiber Laser, Picosecond, 1080nm, 15µJ

Fiber Laser, Picosecond, 1080nm, 15µJ
Fiber Laser, Picosecond, 1080nm, 15µJ
Fiber Laser, Picosecond, 1080nm, 15µJ
Fiber Laser, Picosecond, 1080nm, 15µJ

波長: 1080nm-1080nm
テクノロジー: Fiber Laser

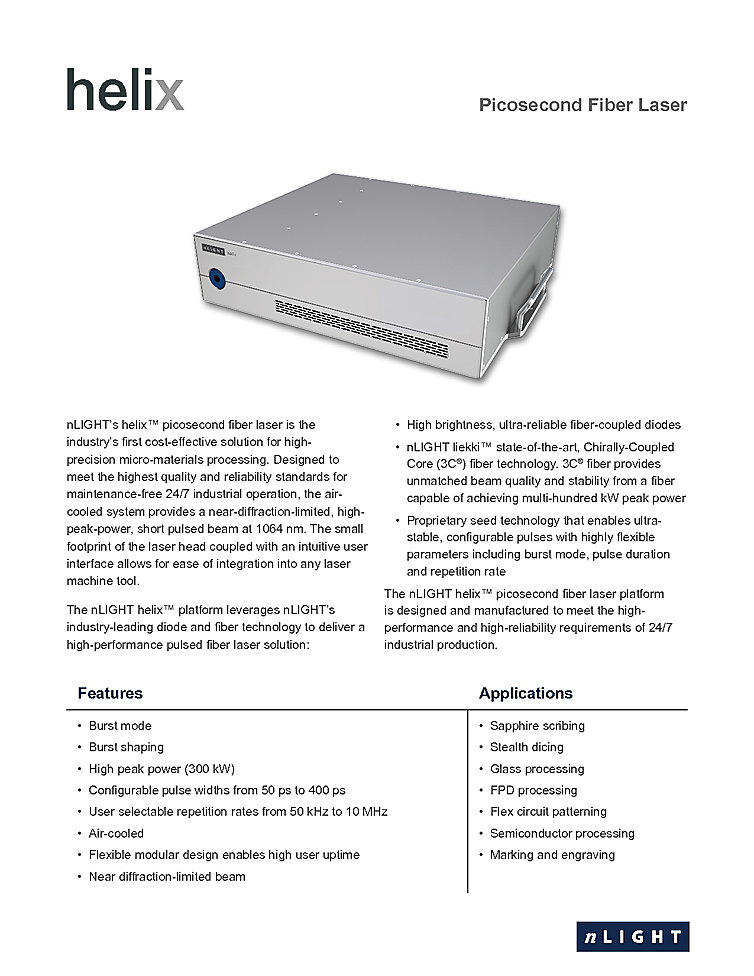

Fiber laser with picosecond pulse output from nLight Corporation. Key features of the picosecond laser include burst mode, burst shaping, high peak power up to 300kW, air-cooled, flexible modular design enables high user uptime and near diffraction-limited beam. The fiber laser was designed for applications in sapphire scribing, Stealth dicing, Glass processing, FPD processing, Flex circuit patterning, Semiconductor processing, marking and engraving. Picosecond laser output has configurable pulse widths from 50ps to 400ps with user selectable repetition rates from 50 kHz to 10 MHz. Fiber laser pulse energy output up to 15µJ at a wavelength of 1080nm.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 丸文株式会社
