型番:LWIR DFB 7.82 µm QCL TO3 Pkg メーカー:Adtech Optics, INC. 商品コード:L003250

7.82μm / 170.8mW LWIR DFB QCL TO-3 Pkg

波長: 7.82μm-
出力: -170.8mW
電流: -2.47A
電圧: -10.9V
パッケージ: TO-3 can
テクノロジー: LWIR DFB QCL

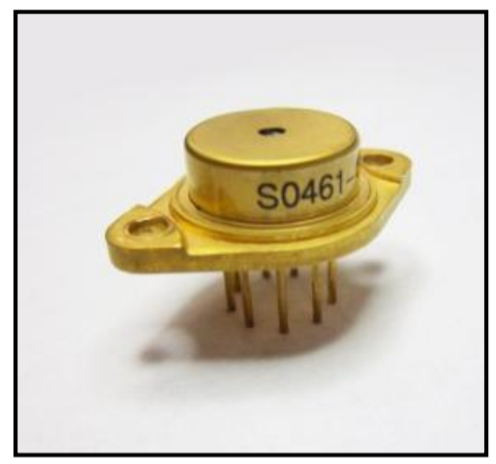

TO-3 can
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Pulse capable.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.2 x 1.0 x 0.6 in (excluding pins)

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C

Electrical;
Thresh. Current: 0.28 A
Thresh. Voltage: 8.8 V
Laser Efficiency: 0.6 %

Optical;
Center Wavelength: 7.82 µm

Tuning Range;
Temperature: 0.59 nm/K
Current: N/A nm/A

Beam Divergence;
Typ. Fast Axis: 60 deg
Typ. Slow Axis: 40 deg
