型番：Necsel MDP Red Laser 637　メーカー：Necsel Communication＆Instrumentation Systems, Inc.　商品コード：L003166

Necsel MDP Red 637 Laser

Necsel MDP Red 637 Laser
Necsel MDP Red 637 Laser

波長: 632nm-641nm
出力: 24W-
電流: 1.4A-
電圧: 12.3V-14.0V
パッケージ: MDP

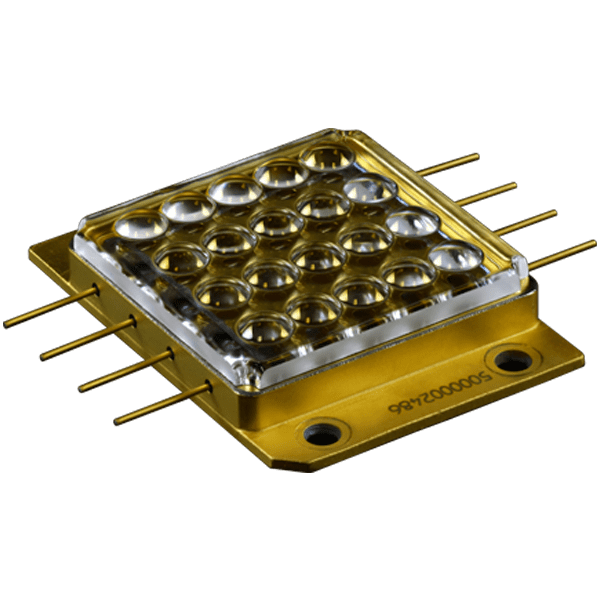

The Red Multi-Die Package (MDP) was created to provide superior technical and cost performance than other red laser display packages. The MDP provides better temperature performance than TO-cans, diode banks or diode bars. The MDP is configured in 4 rows of 5 diodes each and is a more easily integrated solution, has the ability for operation in either CW or pulsed mode, and provides a readily scalable architecture for fast-ramping mass production.

< FEATURES & BENEFITS >
24W of Power
20,000 hours of Lifetime

< APPLICATIONS >
Digital Projection
Remote Source Lighting
Hazardous Lighting
Theme Park Attractions
Forensics
Medical
Therapeutics

< Specifications Summary >
Operating Power：TYPICAL 24W
Temperature：TYPICAL 25℃
Wavelength Range：MIN 632nm TYPICAL 637nm　MAX 641nm

< Driver Requirements >
Laser Diode Voltage Per String (4 strings per MDP)：TYPICAL 12.3V　MAX 14.0V
Operating Current (CW)：TYPICAL 1.4A

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 京都府 株式会社光響
