型番:LWIR DFB 9.47 µm QCL HHL Pkg メーカー:Adtech Optics, INC. 商品コード:L003244

9.47μm / 82.3mW LWIR DFB QCL HHL Pkg

波長: 9.47μm-
出力: -82.3mW
電流: -0.48A
電圧: -10.4V
パッケージ: HIGH HEAT LOAD (HHL) PACKAGE
テクノロジー: LWIR DFB QCL

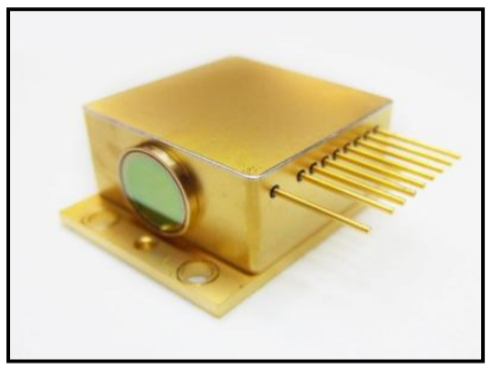

HIGH HEAT LOAD (HHL) PACKAGE
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.75 x 1.25 x 0.72 in (excluding pins).

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C

Electrical;
Thresh. Current: 0.31 A
Thresh. Voltage: 8.5 V
Laser Efficiency: 1.6%

Optical;
Center Wavelength: 9.47 µm

(SPECTRAL CHARACTERIZATION AND BEAM QUALITY)
Driving Conditions;
Operation Mode: CW

Wavelength Tuning;
Temperature: 0.90 nm/K
Current: 72.2 nm/A

SMSR: 30 dB

Beam Profile;
Full Beam Waist: 3.80 mm
M2: 1.24
