型番:OSTLDS976-1 メーカー:OsTech electro optical instruments  商品コード:L001985

Calibrated Turn-Key System with Integrated 976nm, 100W Laser Diode Source

メーカー希望小売価格: $5,195 波長: 976nm-976nm
出力: 100W-100W
パッケージ: Turn-Key Source and Control System
テクノロジー: High Power Multi-Mode, Fiber Coupled

Product Overview:
These 976nm Turn-Key source and control systems are high performance fully integrated 100 Watt source units in a benchtop or rack mount chassis. An integrated 976nm multi-emitter laser source module is precisely controlled and delivers a high stability output with very low noise and ripple.
These systems include a high power 100 Watt laser module, a precision high power laser diode current source, high power TEC temperature controller and cooling plate assembly integrated into a 19 inch rack-mount or benchtop enclosure.

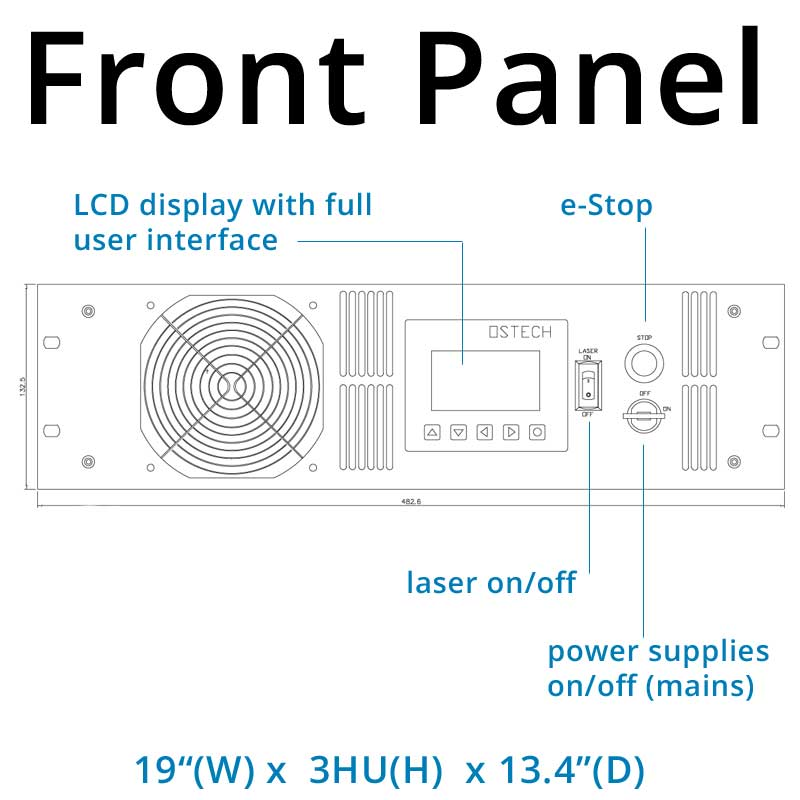

Multiple laser diode protection features ensure that the laser diode module is protected at all times, while the high power temperature controller with full PID control loop provides fast and efficient heat removal. Users have full control of the laser module power through the front panel interface or remotely by USB.

価格 地域 代理店
要問い合わせ 東京都 株式会社ティー・イー・エム
