型番：MWIR DFB 4.73µm QCL HHL Pkg　メーカー：Adtech Optics, INC.　商品コード：L003240

4.73μm / 68.3mW　MWIR DFB QCL HHL Pkg

波長: 4.73μm-
出力: -68.3mW
電流: -0.34A
電圧: -15.1V
パッケージ: HIGH HEAT LOAD (HHL) PACKAGE
テクノロジー: MWIR DFB QCL

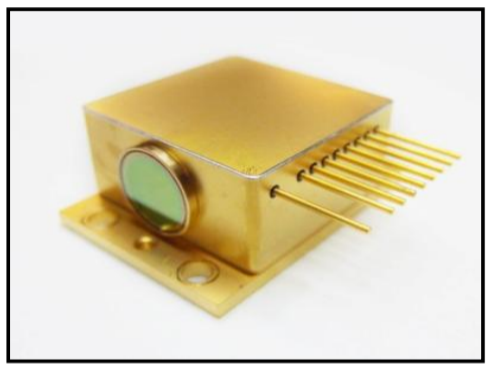

HIGH HEAT LOAD (HHL) PACKAGE
OVERVIEW
・Thermo-electrically cooled. External heat sink still required.
・Sealed in a nitrogen-purged atmosphere.
・Package dimensions (approx): 1.75 x 1.25 x 0.72 in (excluding pins).

(LASER SPECIFICATIONS)
Process: DFB
Oper. Temperature: 15 – 45 °C
Facet Coating: Front AR / Back HR

(ELECTRO–OPTICAL CHARACTERIZATION)
Driving Conditions;
Operation Mode: CW
Temperature: 15 °C

Electrical;
Thresh. Current: 0.25 A
Thresh. Voltage: 14.2 V
Laser Efficiency: 1.2%

Optical;
Center Wavelength: 4.73 µm

(SPECTRAL CHARACTERIZATION AND BEAM QUALITY)
Driving Conditions;
Operation Mode: CW

Wavelength Tuning;
Temperature: 0.40 nm/K
Current: 83.3 nm/A

SMSR: 30 dB

Beam Profile;
Full Beam Waist: 2.89 mm
M2: 1.27
