型番：ADL-65104TL　メーカー：Arima Lasers Corporation　商品コード：L000346

650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)

650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)
650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)
650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)
650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)
650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)
650nm / 10mW　AlGaInP Visible Laser Diode (70°C Low Current Operation)

ADL-65104TL データシート.pdf

波長: 645nm-660nm
出力: 10mW-11mW
電流: 32mA-40mA
電圧: 2.2V-2.6V

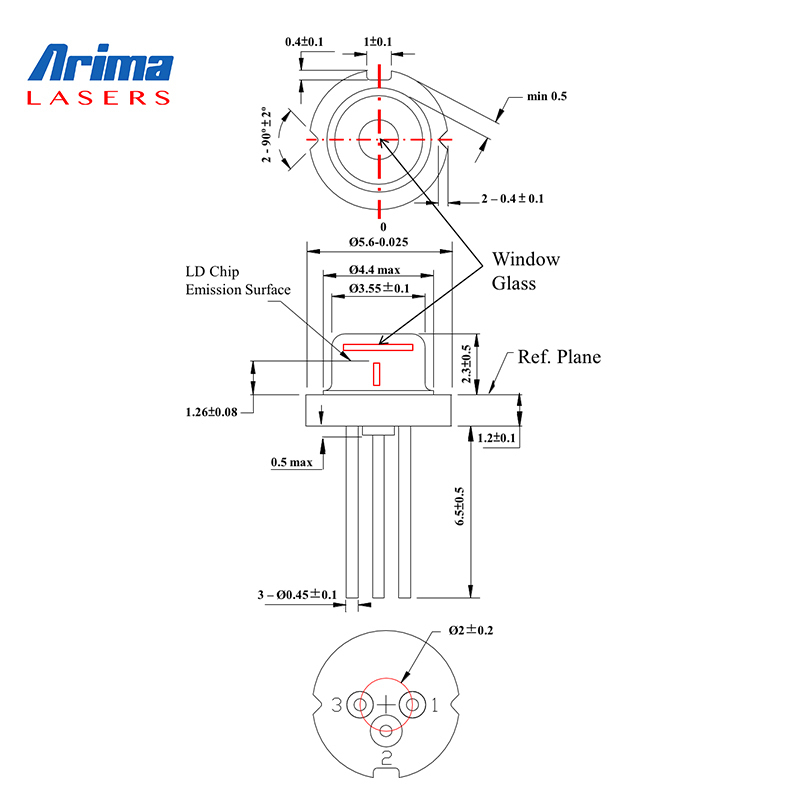

パッケージ: TO-can

< FEATURES >
High temperature operation
Low current operation

< APPLICATION >
Laser measurement tool / laser level measuring instrument / laser distance meter
Lighting/laser pointer
Optical fiber communication system
Laser printer
Sensor/ PM 2.5 detector
Beauty equipment and medical equipment / Laser hair cap / Laser hair comb

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社彩世
