型番:E532-1-3(24X120)APT20-C400 メーカー:Picotronic GmbH 商品コード:L000184

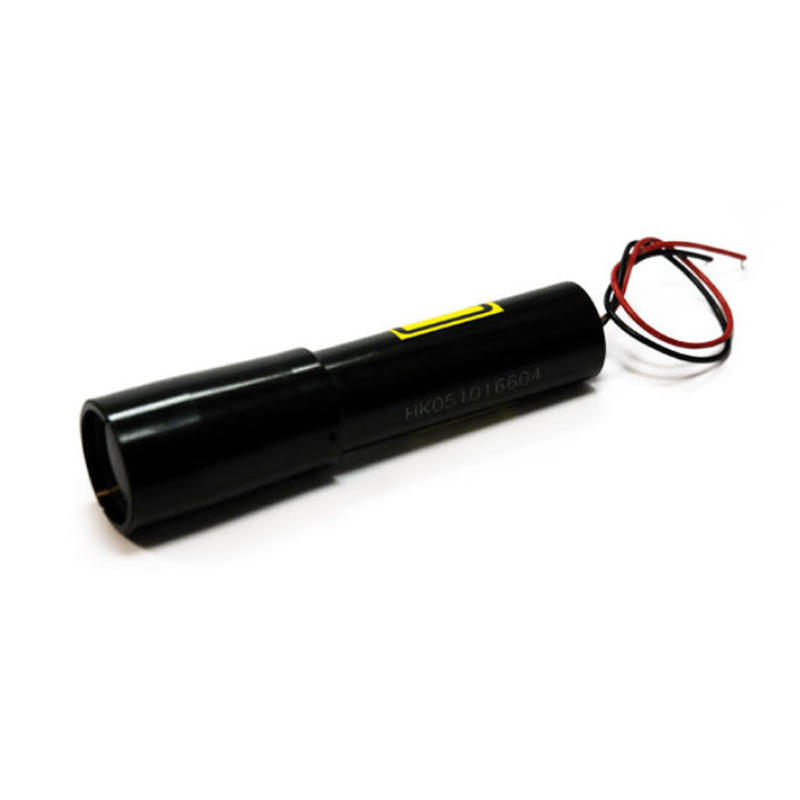

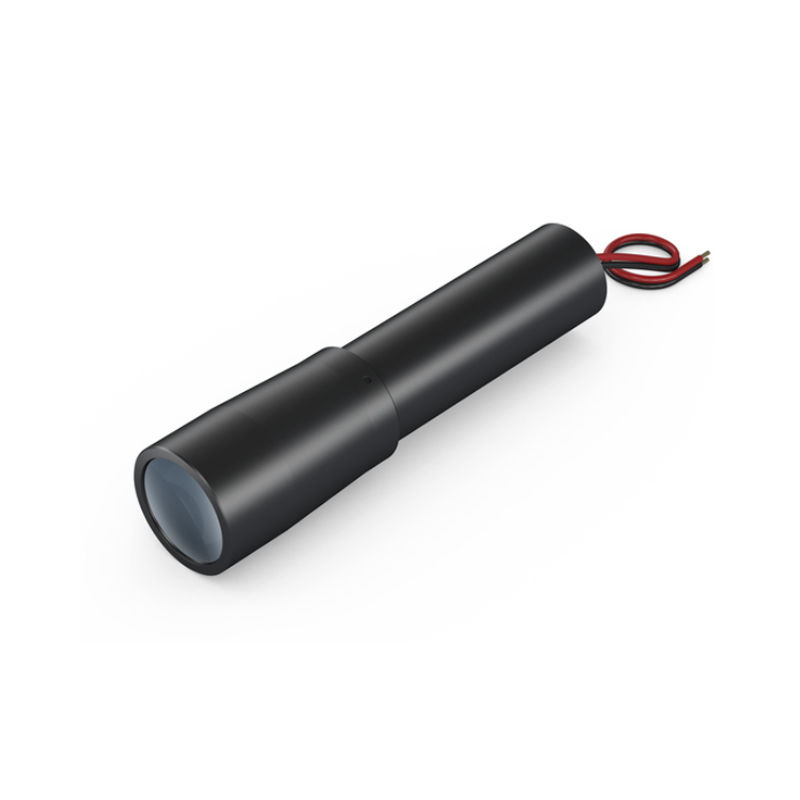

1mW Green Focusable Isolated Expander Lasermodule (APT20-C400)

メーカー希望小売価格: €252,86 波長: 532nm-
出力: 0.55mW-1mW
電流: 150mA-450mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Expander Laser

Focusable isolated Expander lasermodule, green, 532nm, 1mW, 3V DC, 24x120mm, class 2

• Operating Voltage 3 V DC
• Glas lenses anti reflex coated
• Laser Class 2
• Adjustable focus
• Uniform illumination

< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power min 0.55 typ 1 max 1 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 150 typ 300 max 450 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape expander
Laser Class 2
Operating Distance 200 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology YVO4+KTP
Stability +/- 20% @ 15-30°C
Focus adjustable
Warm up time < 15 min

< Electrical Parameters >
Potential of Housing isolated
Connector 2.1 mm DC plug (+pole inner)

< Mechanical Parameters >
Size Ø24x120 mm
Material aluminium
Cable length 400 mm
Wire type 22AWG, black, 3,6mm
Output Aperture 20 mm
Weight 87 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
