型番:AP-aISO メーカー:AdValue Photonics 商品コード:L003225

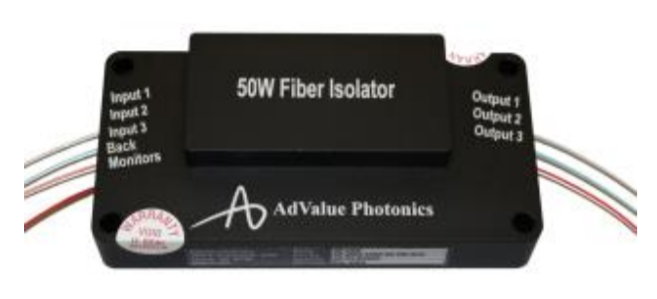

1030、1064nm / >50W 1 Micron High Power Fiber Isolator

波長: 1030nm-1064nm
出力: 50W-
テクノロジー: ASE Light Source

< Optical Characteristics >
Polarization Maintaining (PM)
Optical Power (CW): 1064, 1030 nm
Optical Power (CW): >50 W
Backward Power Handling: >50 W
Isolation: >20 dB
Insertion Loss: 1.5 dB
Min. Return Loss: 50 dB
Input / Output Fiber: Panda PM fiber 10/125 µm, 0.08 NA, 3 mm jacket, fiber length > 0.5 m
Multi-Channel Option: 1-Channel, 2-Channel, or 3-Channel
(For special requirement, please contact AdValue Photonics for options.)

< General Characteristics >
Maximum Tensile Load: 5 N
Operating Temperature: +20 to +45℃
Storage Temperature: -10 to +70℃
Operating Humidity: 0 to 85%
Storage Humidity: 0 to 85%

< Features >
• High power
• All-fiber construction with no free-space element
• Extraordinary reliability
• Integrated backward power monitoring port

< Applications>
• Fiber laser systems
• Fiber amplifier systems
