型番：1550nm fiber coupled laser diodes メーカー：AeroDIODE 商品コード：L003573
1550nm Laser Diode CW or Pulsed - DFB or Bragg

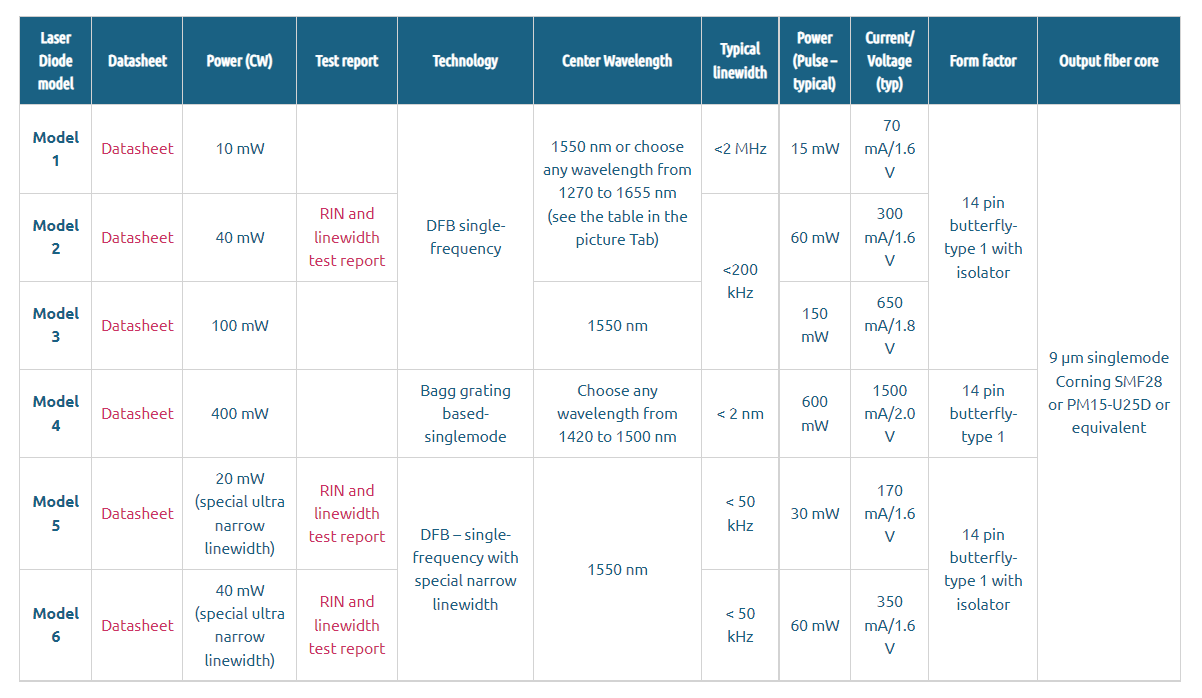

波長: 1423nm-1555nm
出力: 10mW-800mW
電流: 60mA-1500mA
電圧: 1.6V-2.0V
パッケージ: 14 pin Butterfly package
テクノロジー: DFB、Fabry-Perrot with Bragg

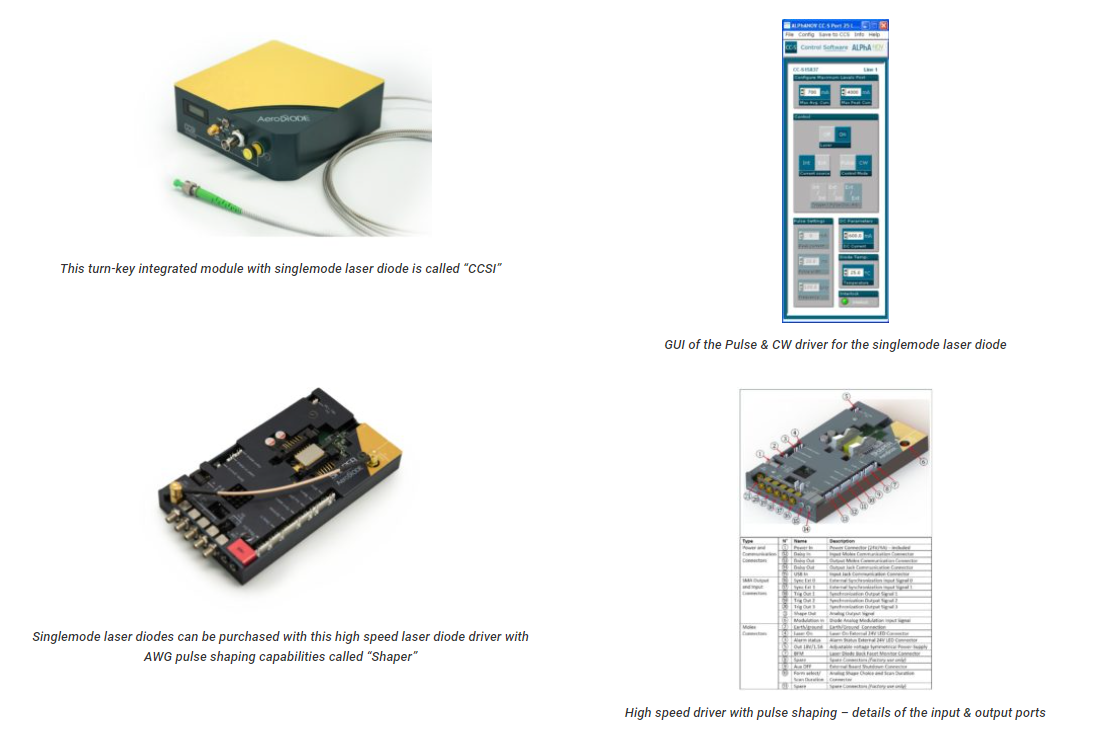

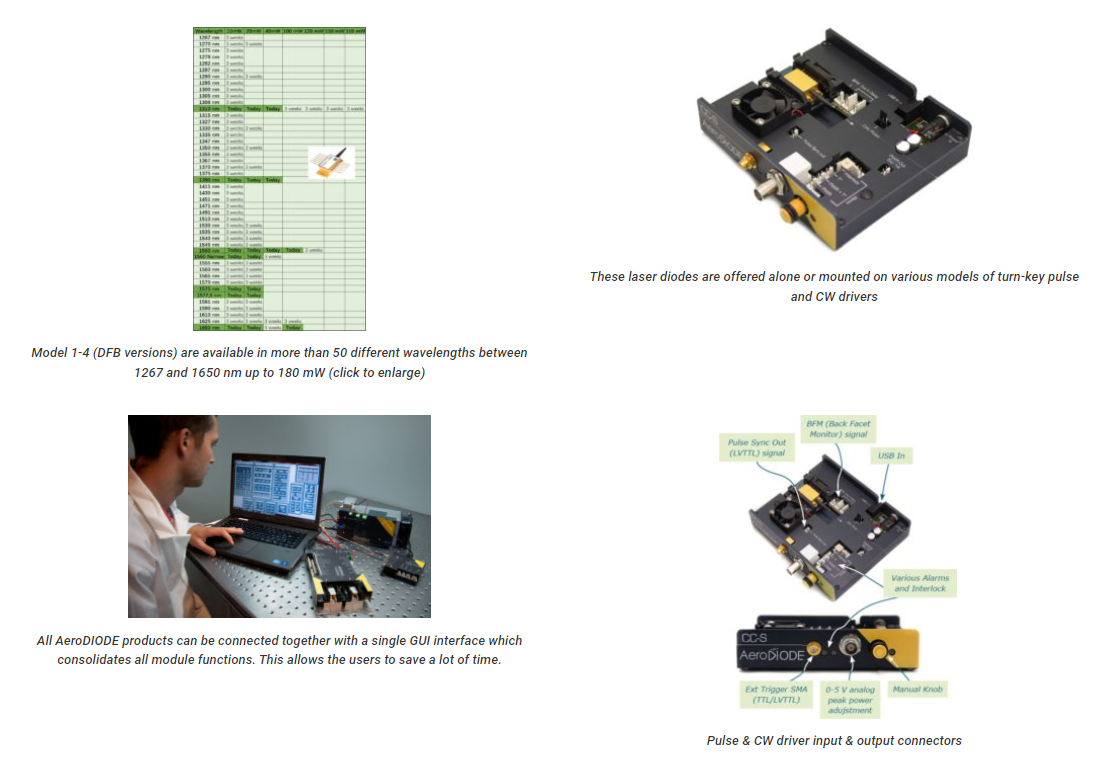

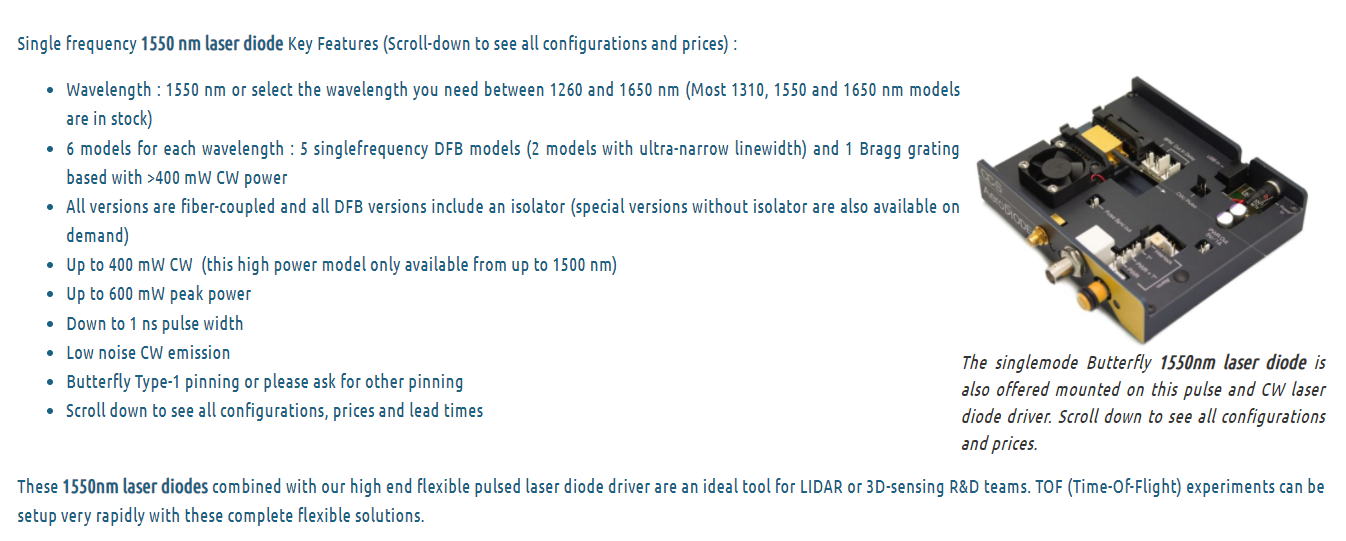

These fiber-coupled 1550 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. 5 DFB models are single-frequency versions up to 120 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for sensing applications like LIDAR Time-of-Flight, FMCW or 3D-sensing.
These singlemode 1550 nm laser diodes can reach high power in nanosecond pulse regime up to 500 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1550nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes.
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
