型番：AP-AMP メーカー：AdValue Photonics 商品コード：L003222

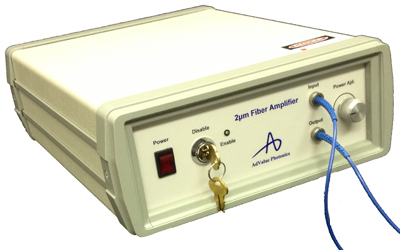

1900-2100nm / 200ｍW 2 Micron Fiber Amplifier
波長: 1900nm-2100nm
出力: 200mW-200mW
テクノロジー: Fiber Amplifier
エネルギー安定性: ±5% (8 hours at 25 °C)
重さ: 4.2 kg
冷却方法: Forced air
< Optical Characteristics >
Gain wavelength: 1900-2100 nm options
Output power: 200 mW (higher or lower power available)
Power adjustment: 10-100% max.
Output power stability: ±5% (8 hours at 25℃)
Beam quality, M2: < 1.1
Output polarization: Random (option: linear polarization)
Input / Output fiber: SMF-28 single mode fiber, 3 mm jacket, 1 m length, FC/APC connector
(For special requirement, please contact AdValue Photonics for options.)
< General Characteristics >
Operating temperature: +10 to +35℃
Storage temperature: -10 to +70℃
Power requirement: AC 100~240V (50/60Hz)
Warm-up time: 10 minutes
< Features >
・Wide wavelength range
・Adjustable power level
・Near diffraction limited beam quality
・Turn-key system with no maintenance
< Applications >
・LIDAR
・Gas sensing
・Mid-IR generation
・Spectroscopy
・Test and measurement
・Research & development
| 価格 | 地域 | 代理店 | |
|---|---|---|---|
|
代理店が登録されていません |
|||
この商品を見ている人はこんな商品も見ています
-

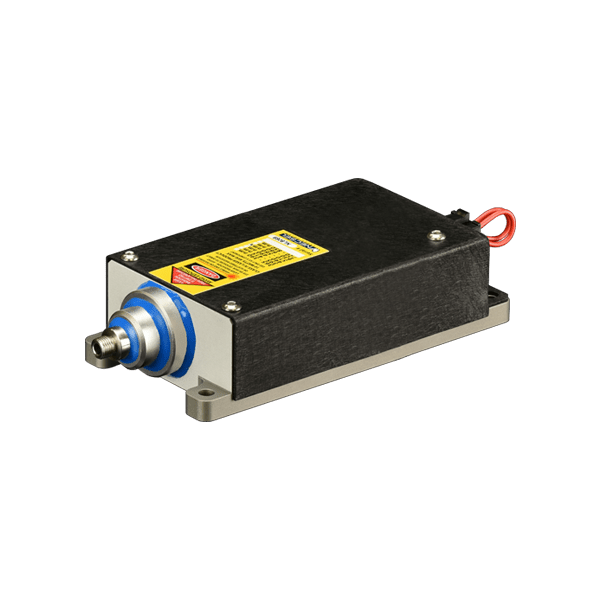

Green：Necsel Multi-Color Novalum 250 RGB Laser
商品コード: L003193
詳細はこちらから
The Necsel NovaLum contains a red, green and blue laser to produce a combined output of over 250 ... -

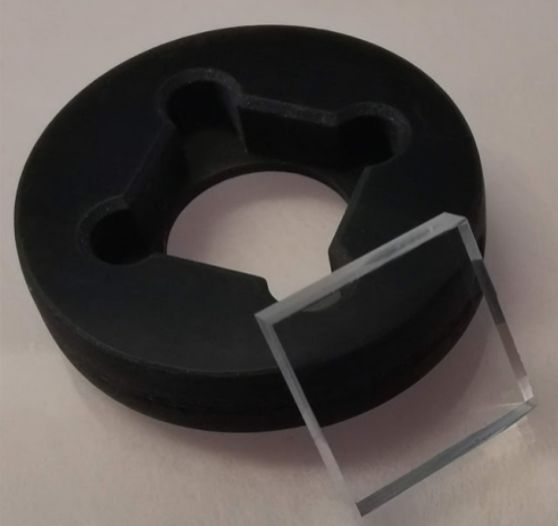

193nm / m=2 Vortex Lens - Spiral Phase Plate (11x11x2.5 mm)
