型番：7612A　メーカー：Analog Modules　商品コード：L003645

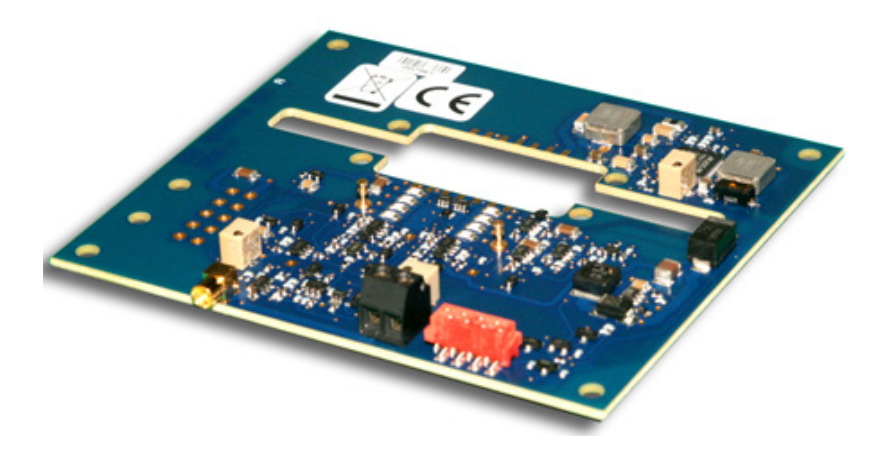

Semiconductor Optical Amplifier Driver Assembly

Semiconductor Optical Amplifier Driver Assembly
Semiconductor Optical Amplifier Driver Assembly

7612A データシート.pdf

電流: -1.2A
パルス幅: 6 ns to CW

DESCRIPTION:
AMI’s Model 7612A Semiconductor Optical Amplifier Driver is ideal for driving 14-pin butterfly packaged SOA or BOA modules for use as power boosters, optical switch, wavelength conversion and others. The driver is implemented as a transconductance amplifier (analog voltage in, scaled current out) and includes an on-board TEC controller for temperature stabilized operation of the optical amplifier. The driver circuitry operates from a single 5V power source. All other required voltages are generated on the board by high efficiency switching power supplies. The 7612A is manufactured to the RoHS Directive 2002/95/EC requirements. All required mating cables are included.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社オプトサイエンス
