型番：NL-1550-1W　メーカー：NOLATECH　商品コード：L003150

High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power

High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power
High Pulsed Peak Power 1550 nm Single Mode Laser Diode, 1W Output Power

メーカー希望小売価格: Request Price 波長: 1550nm-1550nm
出力: 1W-1W
パッケージ: Butterfly
テクノロジー: CW and PULSED, 1W Peak Power

Product Overview:

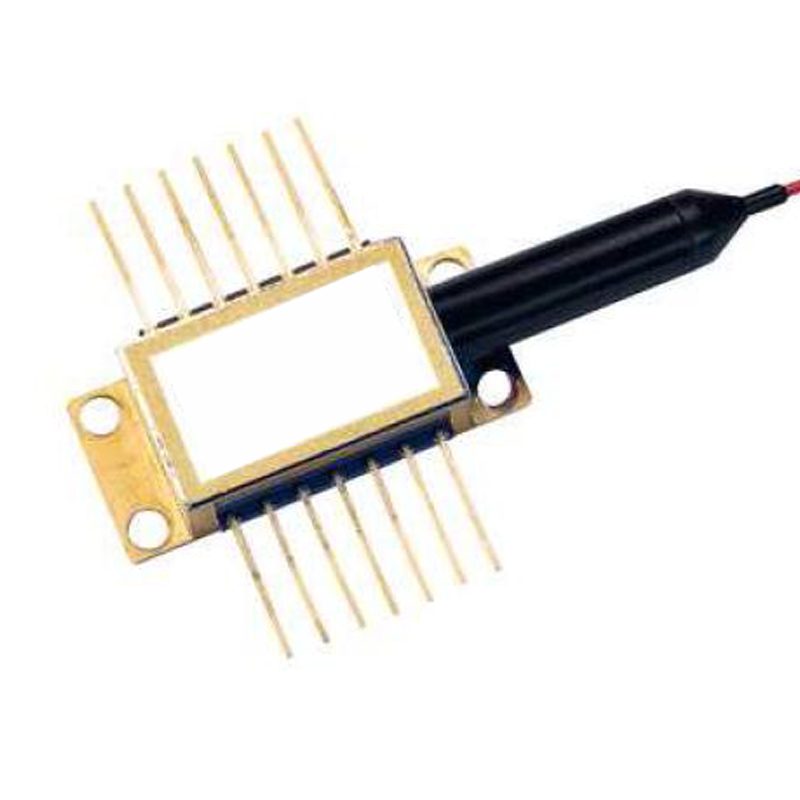

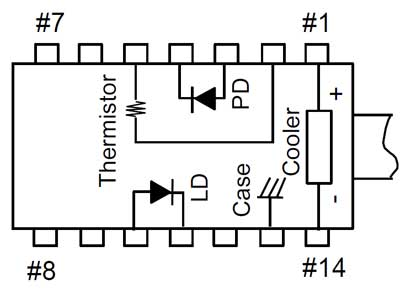

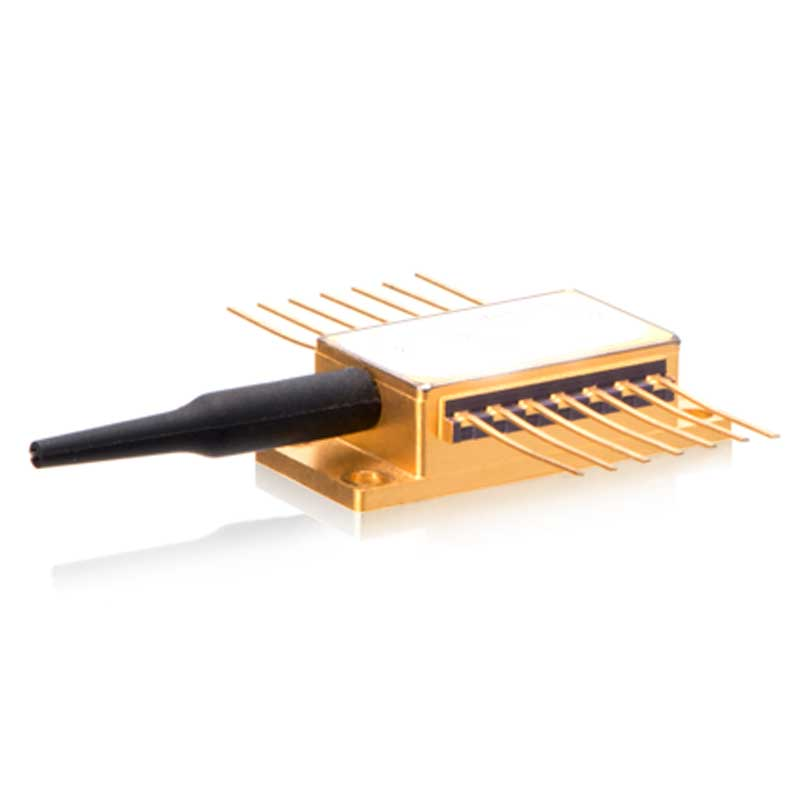

These butterfly packaged single mode laser diodes offer high peak power for sensing and LiDAR applications. They deliver over 1 Watt of pulsed peak power. They are fiber coupled and come with a 0.75 ~ 1 meter single mode fiber and an FC/PC connector. Other connector options are available on request. The standard 14 pin butterfly package includes an monitor diode, a cooler and a 10 kOhm thermistor.
1550 nm Pulse Characteristics:
These lasers are designed for high repetition rate pulsing applications in the nanosecond range of pulse widths. They deliver 1000mW of peak power at a typical forward current level in the range of 1700 to 2000 mA and a twenty nanosecond pulse width. Careful attention to cabling and pin connections is required to achieve optimum pulse characteristics and to achieve the desired power.
